概要
The MPQ6653C-AEC1 is a single-phase brushless DC (BLDC) motor driver with integrated power MOSFETs and an embedded Hall sensor. It drives a single-phase BLDC motor, with up to 1.2A of peak coil current. The input voltage (VCC) range is between 3.5V and 35V.
The MPQ6653C-AEC1 controls the motor speed through the pulse-width modulation (PWM) signal or the DC voltage on the PWM pin. The device features configurable soft commutation, a Hall offset angle, and speed curve configurations.
The FG/RD pin acts as either a rotating speed indicator (FG) based on the embedded Hall sensor’s output, or a locked-rotor indicator (RD) if locked-rotor protection is triggered.
Rich protections include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current limiting (OCL), and thermal shutdown protection.

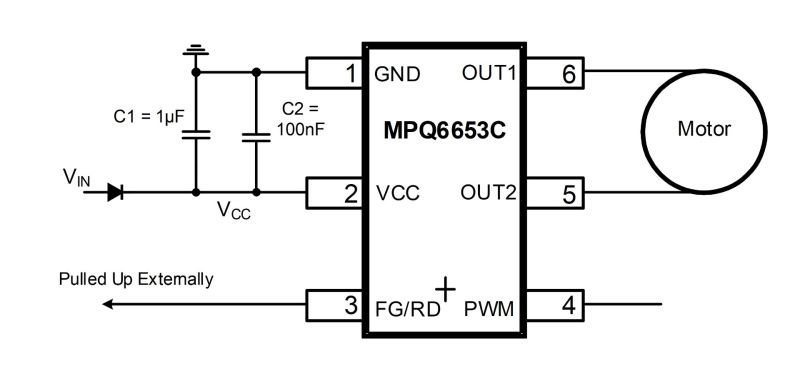

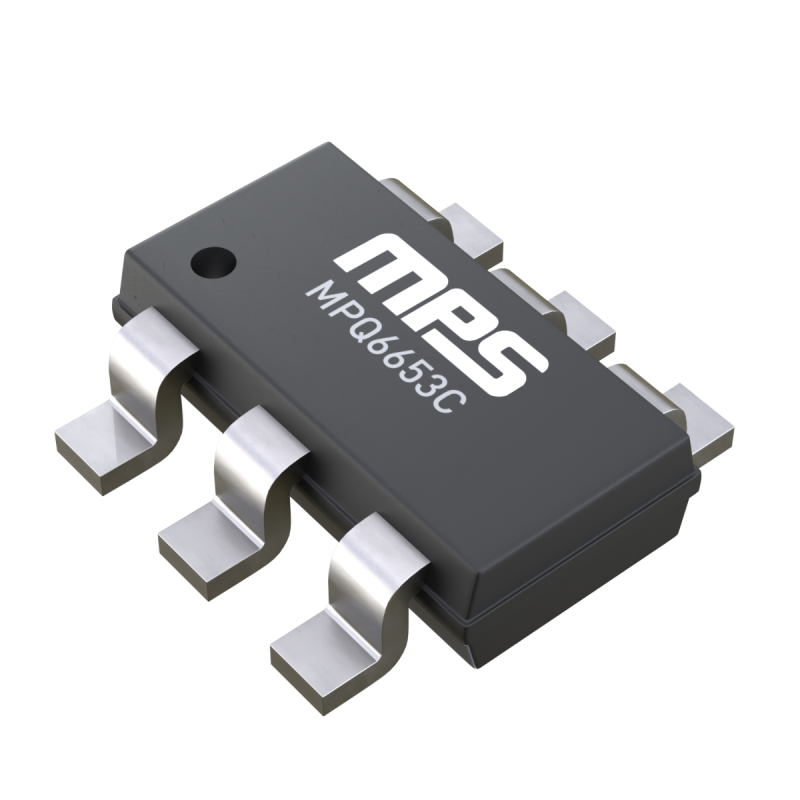

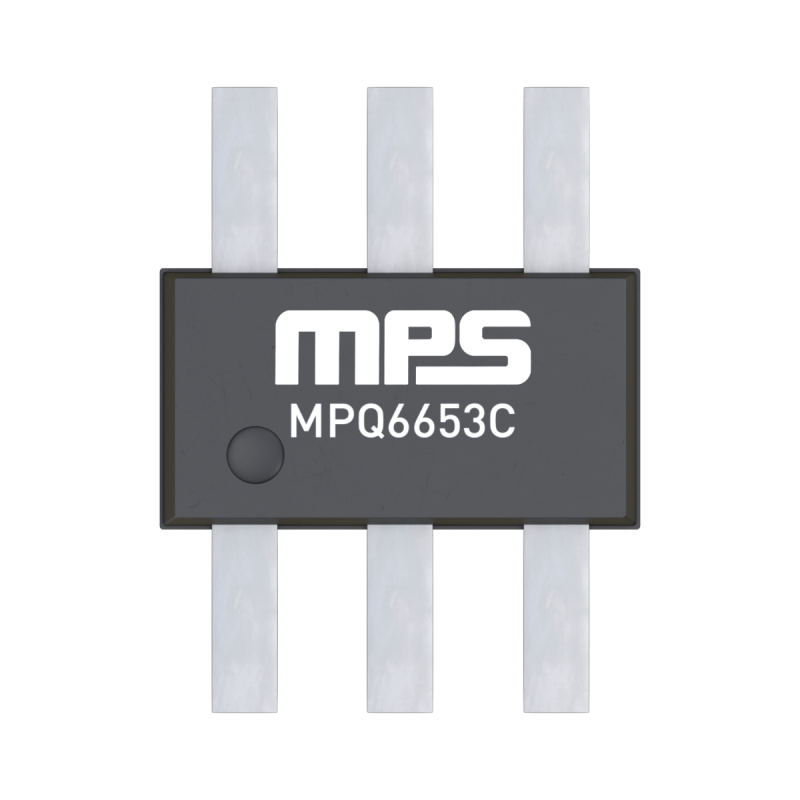

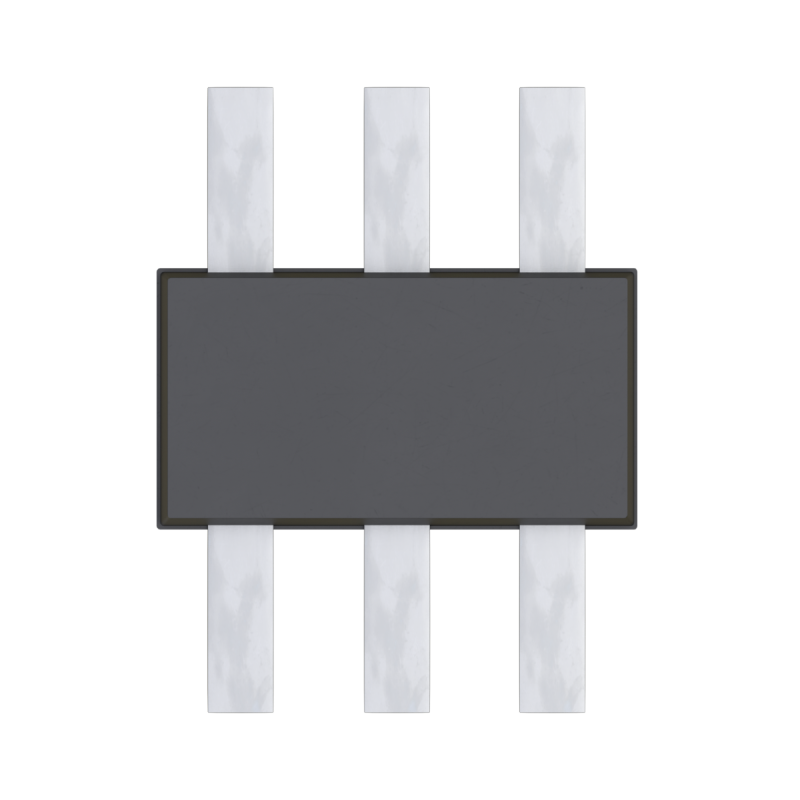

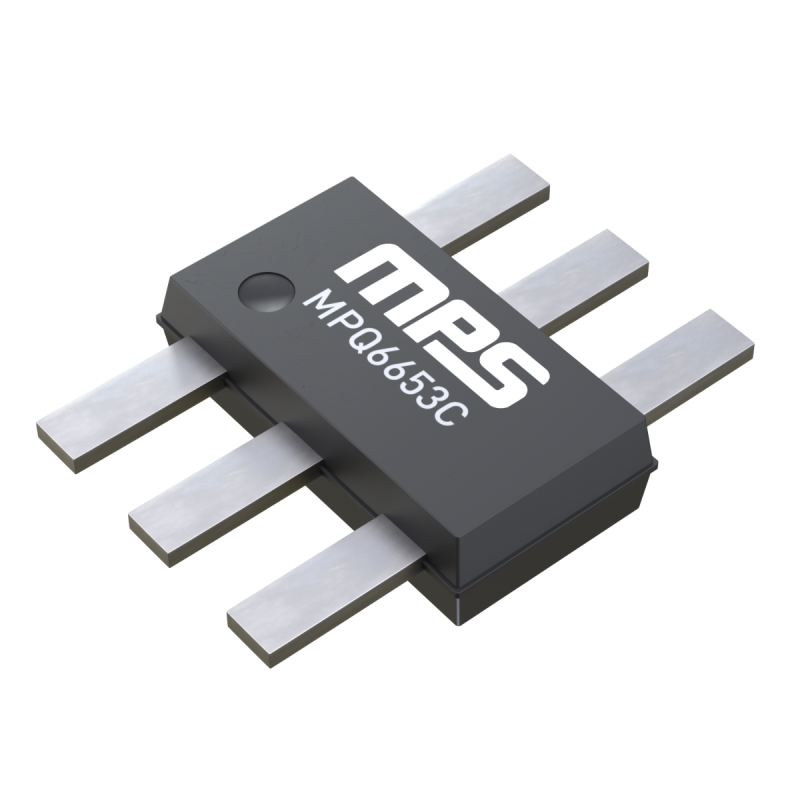

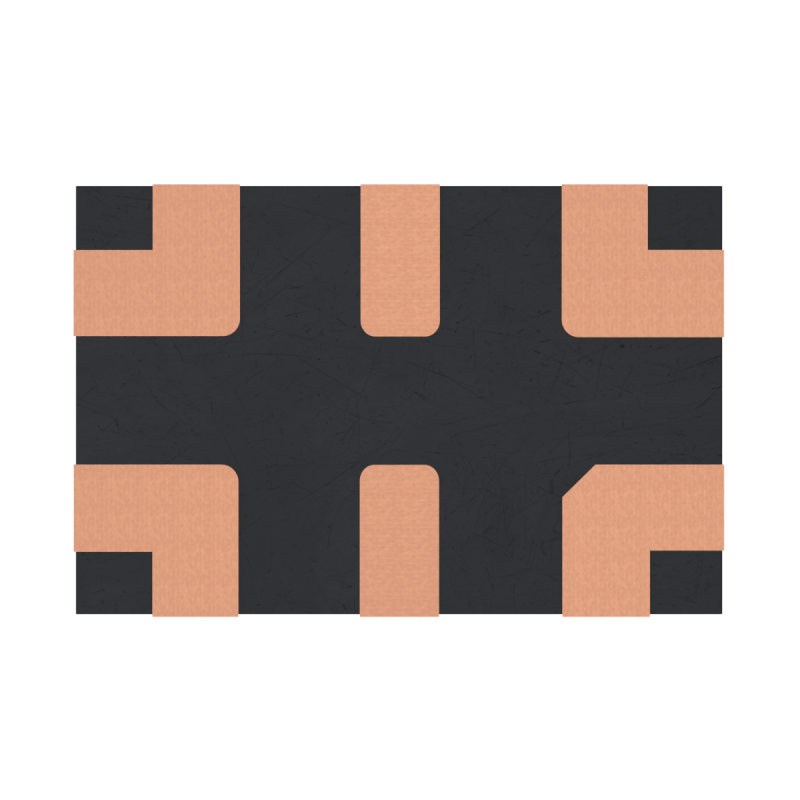

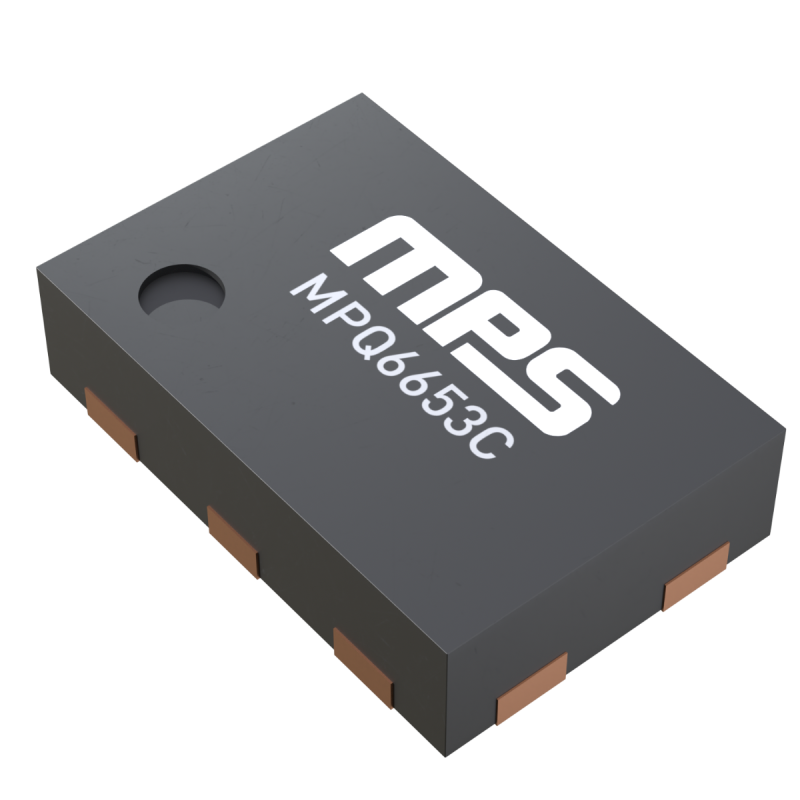

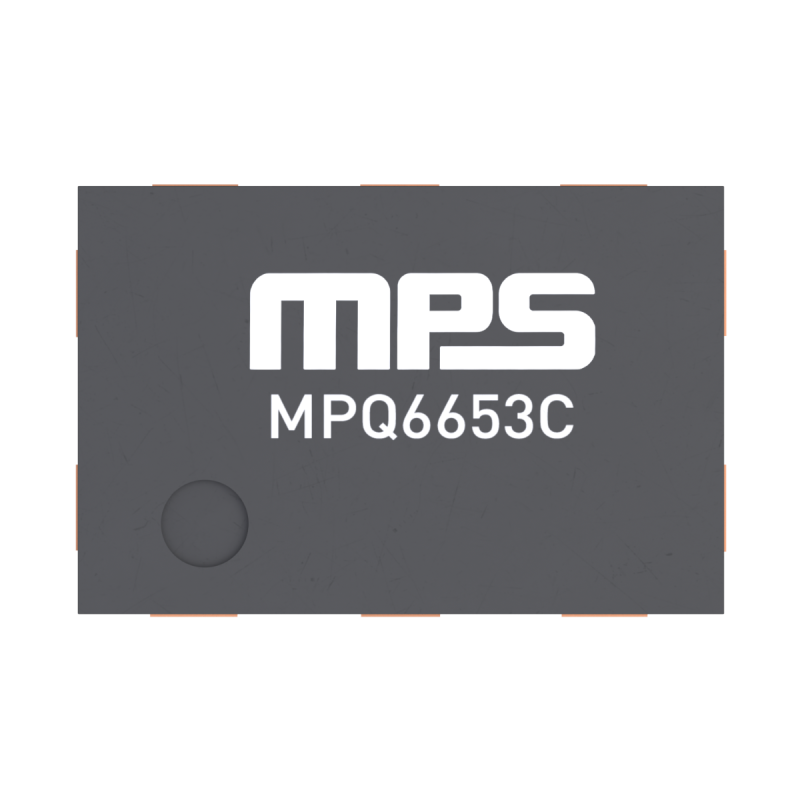

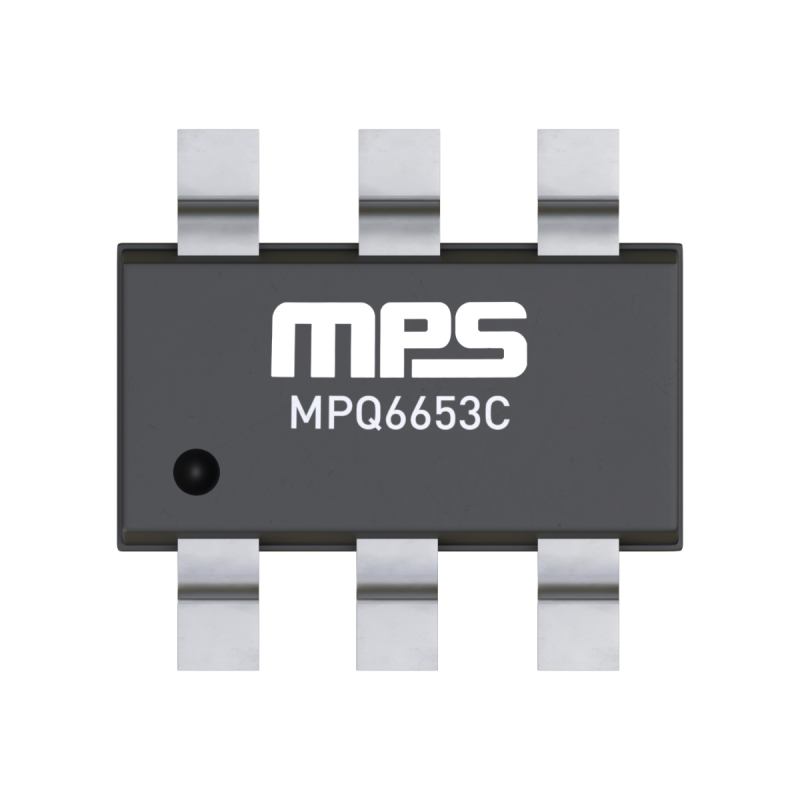

The MPQ6653C-AEC1 is available in TSOT23-6-SL, TSOT23-6, and wettable-flank TQFN-6 (2mmx3mm) packages. It is available in AEC-Q100 Grade 1.
-
もっと見る
少なく表示
機能と利点
- 3.5V to 35V Operating Input Voltage (VCC) Range
- On-Chip Hall Sensor
- Integrated High-Side and Low-Side MOSFETs (HS-FET and LS-FET, Respectively): 960mΩ
- Selectable Open-Loop or Closed-Loop Speed Control
- Configurable Curves
- Configurable Starting Duty Cycle
- Configurable Stopping Duty Cycle
- Soft Commutation
- Configurable Soft Acceleration Time
- Configurable Hall Leading/Lag Angle
- Supports 50Hz to 100kHz Pulse-Width Modulation (PWM) Input Frequency or DC Input
- Automatic Reverse Current Block
- 24kHz PWM Output Frequency
- Configurable Current Limit
- Over Current Protection (OCP)
- Over-Voltage Protection (OVP)
- Standby Mode
- Selectable FG or RD Output
- Available in TSOT23-6-SL, TSOT23-6, and TQFN-6 (2mmx3mm) Wettable-Flank Packages
- Available in AEC-Q100 Grade 1
