残量計

Tunable
State of Charge fitting your application needs by adjusting a few key settings
Easy To Use
Jump Start your development directly into testing using our complete  reference designs and easy-to-use GUI
Empowering Insights
Pair with any AFE to upgrade your application unlocking key metrics to improve end-user experience

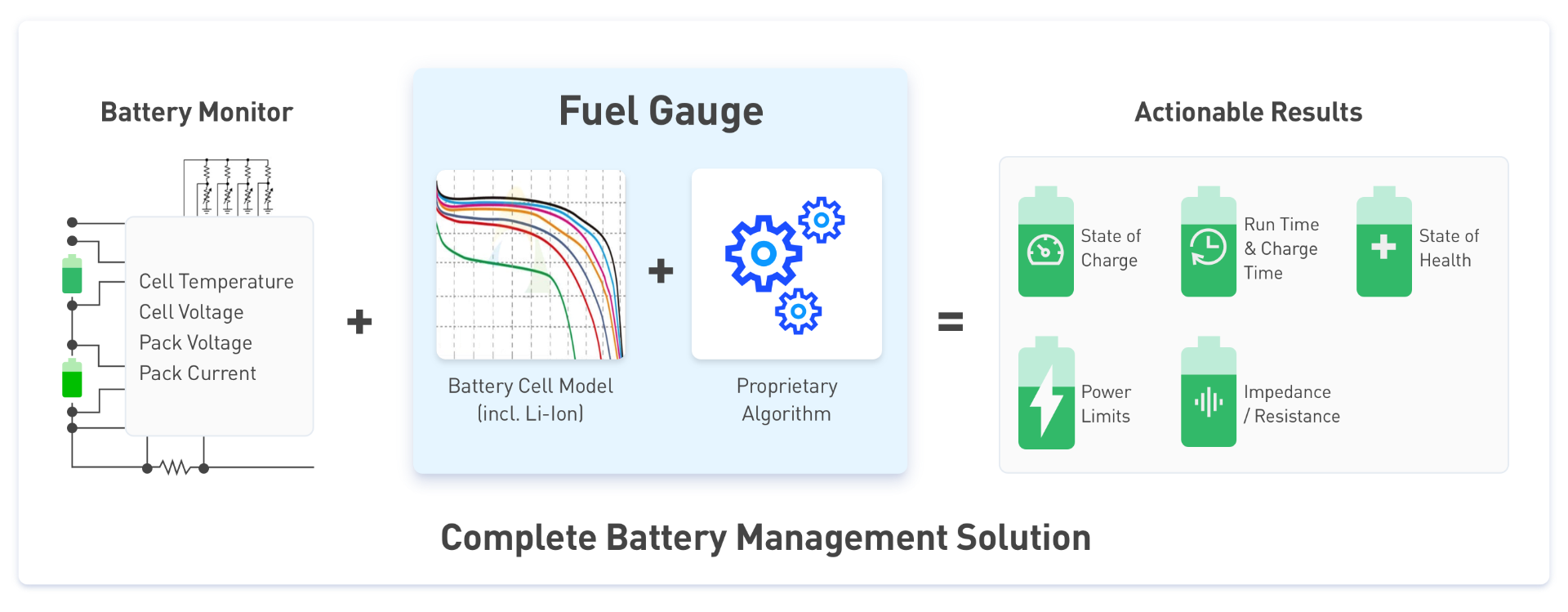

MPS Fuel Gauge leverages a sophisticated mixed mode algorithm to provide a complete set of estimates beyond state of charge ( i.e. time to empty, full, available power, state of health) -  key in improving the end user experience. Our Pack Side Fuel Gauge can be paired with any AFEs with cell-level ADC readings and unlock all the potential of any existing designs for battery pack with 2 or more stacked cells. Get your setup going quickly with our Reference Designs paired with a GUI featuring a simple wizard and the ability to record and a plot.

参照表示列
ステータス
MPS Inventory
Series Cells
Nominal Battery Pack Voltages Range (V)
Implementation
Control Interface
Average Discharge Rate
External Capacity Indication
Cell Chemistry
パッケージ(mm)
Features
MPSafe
MPL
Product URL
Series Cells
Nominal Battery Pack Voltages Range (V)
Implementation
Control Interface
Average Discharge Rate
External Capacity Indication
Cell Chemistry
パッケージ(mm)
Features
Buy On MPS
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
5 to 67.2
5 to 42
Pack-Side
I2C + CRC
<2C
5 Level LED
Li-ion
Li-Polymer
TQFN-32 (4x4)
Lifetime Logging Function
Fuel Gauge Algorithm
Configurable Battery Pack Topology
Configurable Pack Empty Level
Configurable Full Level
State of Charge Level
State of Health
Available Power
Live ESR
Thermal Modeling
Is MPSafe Has MPL Product URL

MPF42790
2S〜16SスタックセルバッテリパックのLEDレベル付き残量ゲージ
2, 3, 4, 5, 7, 6, 8, 9, 10, 11, 12, 13, 14, 15, 16 5 to 67.2 Pack-Side I2C CRC <2C 5 Level LED Li-ion, Li-Polymer TQFN-32 (4x4)
Lifetime Logging Function, Fuel Gauge Algorithm, Configurable Battery Pack Topology, Configurable Pack Empty Level, Configurable Full Level, State of Charge Level, State of Health, Available Power
0 0 https://www.monolithicpower.com/jp/products/mpf42790.html
MPF42792
2S〜16Sスタックセルバッテリパック残量ゲージ
2, 3, 4, 5, 7, 6, 8, 9, 10, 11, 12, 13, 14, 15, 16 5 to 67.2 Pack-Side I2C CRC <2C Li-ion, Li-Polymer TQFN-32 (4x4)
Lifetime Logging Function, Fuel Gauge Algorithm, Configurable Battery Pack Topology, Configurable Pack Empty Level, Configurable Full Level, State of Charge Level, State of Health, Available Power
0 0 https://www.monolithicpower.com/jp/products/mpf42792.html
MPF42795

2S〜10SスタックセルバッテリパックのLEDレベル付き残量ゲージ

2, 3, 4, 5, 7, 6, 8, 9, 10 5 to 42 Pack-Side I2C CRC <2C 5 Level LED Li-ion, Li-Polymer TQFN-32 (4x4)
Lifetime Logging Function, Fuel Gauge Algorithm, Configurable Battery Pack Topology, Configurable Pack Empty Level, Configurable Full Level, State of Charge Level, State of Health, Available Power
0 0 https://www.monolithicpower.com/jp/products/mpf42795.html
MPF42797
2S〜10Sのスタックセルバッテリパック残量ゲージ
2, 3, 4, 5, 7, 6, 8, 9, 10 5 to 42 Pack-Side I2C CRC <2C Li-ion, Li-Polymer TQFN-32 (4x4)
Lifetime Logging Function, Fuel Gauge Algorithm, Configurable Battery Pack Topology, Configurable Pack Empty Level, Configurable Full Level, State of Charge Level, State of Health, Available Power
0 0 https://www.monolithicpower.com/jp/products/mpf42797.html
MPF42791

2セル〜16セルのスタックセル先進バッテリパック残量ゲージ

2, 3, 4, 5, 7, 6, 8, 9, 10, 11, 12, 13, 14, 15, 16 5 to 67.2 Pack-Side I2C CRC <2C 5 Level LED Li-ion, Li-Polymer TQFN-32 (4x4)
Lifetime Logging Function, Fuel Gauge Algorithm, Configurable Battery Pack Topology, Configurable Pack Empty Level, Configurable Full Level, State of Charge Level, State of Health, Available Power, Live ESR, Thermal Modeling
0 0 https://www.monolithicpower.com/jp/products/mpf42791.html
No more part left for display.
