MP6616B

MP6616B

18V, 2A, Single-Phase BLDC Motor Driver with Closed-/Open-Loop Speed Control and Enhanced ESD Capability

データシート

概要

The MP6616B is a single-phase, brushless DC (BLDC) motor driver with integrated MOSFETs and an embedded Hall-effect sensor. It can drive up to 2A of continuous output current (I_OUT) across a 3.3V to 18V input supply voltage (V_CC) range.

The MP6616B supports both speed open-loop and closed-loop control. The speed is controlled via the pulse-width modulation (PWM) signal on the PWM pin. The device features a configurable soft commutation angle and Hall offset angle. The Hall offset angle can be flexibly optimized for low-speed and high-speed performance across the full speed range.

The FG/RD pin can function as a rotational speed detector or rotor deadlock indicator. This pin is an open-drain output that must be pulled up externally.

Rich protection features include input over-voltage protection (OVP), under-voltage lockout (UVLO) protection, locked-rotor protection, over-current protection (OCP), and thermal shutdown.

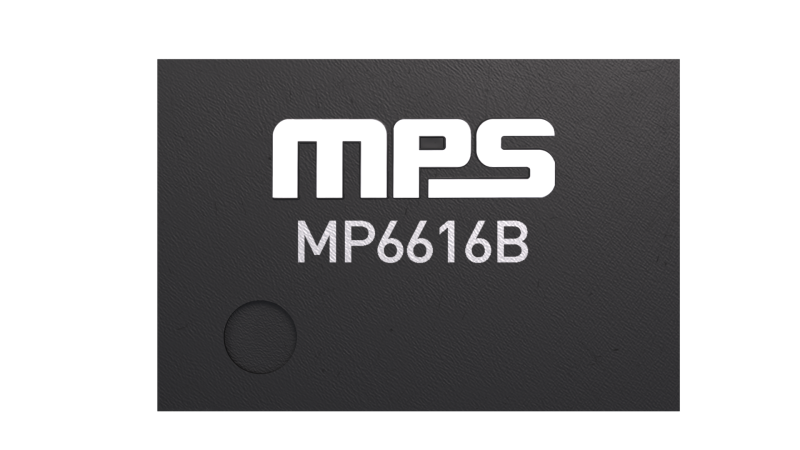

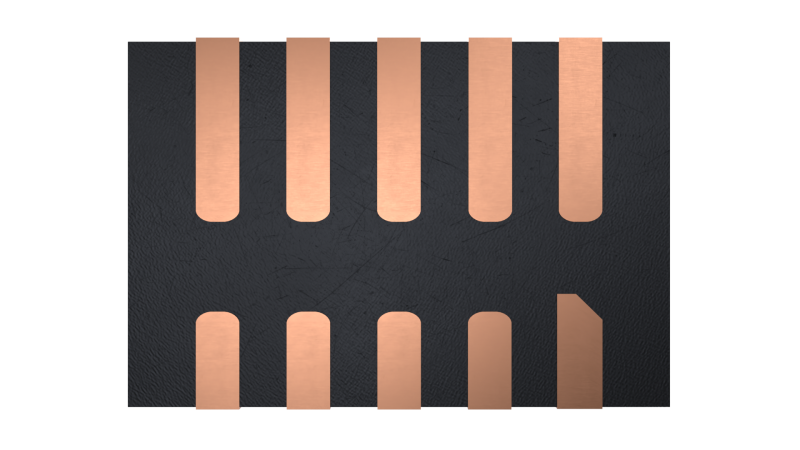

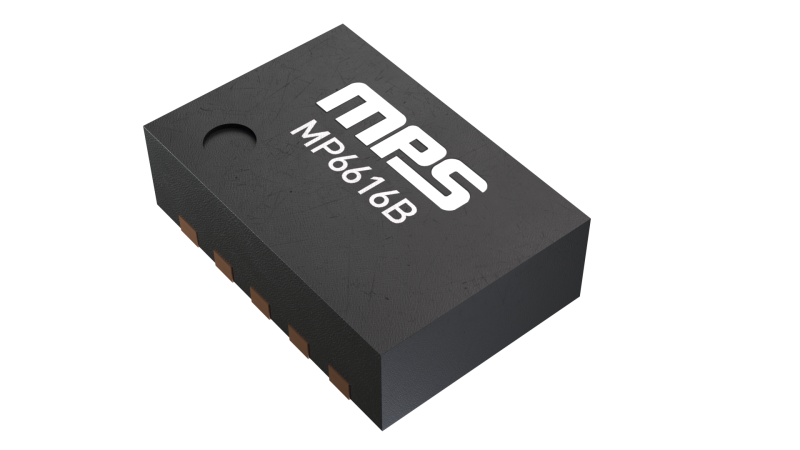

The MP6616B is available in a QFN-10 (2mmx3mm) package.

機能と利点

High-Sensitivity, Embedded Hall-Effect Sensor
3.3V to 18V Operating Input Supply Voltage (V_CC) Range
2A of Continuous Output Current (I_OUT)
100mΩ Integrated Power MOSFETs
Configurable Speed (40000rpm Max)
Configurable Minimum Speed and Starting Duty Cycle
Selectable Closed-Loop or Open-Loop Speed Control
High-Speed Accuracy in Closed-Loop Mode
Configurable Soft Commutation Angle (45° Max)
Configurable Hall Offset Angle (±45° Max)
4-Step Configurable Current Limit (4A Max)
1kHz to 100kHz Pulse-Width Modulation (PWM) Input Range
Configurable Soft-Start Time (t_SS)
27kHz Fixed Switching Frequency (f_SW)
Standby Mode
Locked-Rotor Protection with Auto-Recovery
Thermal Shutdown with Auto-Recovery
Enhanced Electrostatic Discharge (ESD) Capability
Built-In Input Over-Voltage Protection (OVP), Under-Voltage Lockout (UVLO) Protection, and Auto-Recovery
Available in a QFN-10 (2mmx3mm) Package
