MP6616B
18V, 2A, Single-Phase BLDC Motor Driver with Closed-/Open-Loop Speed Control and Enhanced ESD Capability
Session textval
Session Titefor popup

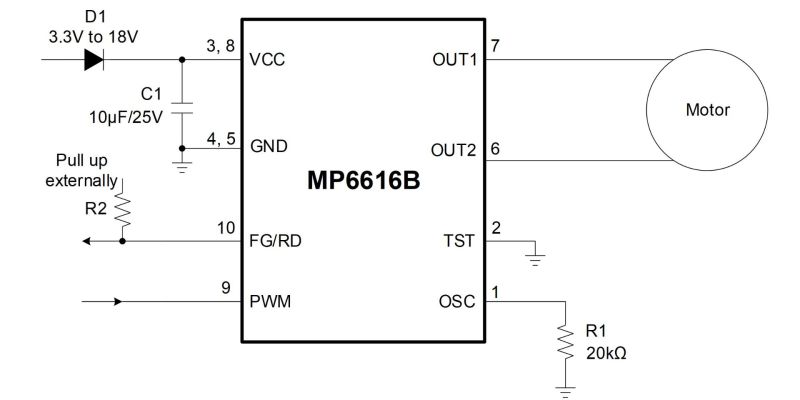

Description
The MP6616B is a single-phase, brushless DC (BLDC) motor driver with integrated MOSFETs and an embedded Hall-effect sensor. It can drive up to 2A of continuous output current (IOUT) across a 3.3V to 18V input supply voltage (VCC) range.
The MP6616B supports both speed open-loop and closed-loop control. The speed is controlled via the pulse-width modulation (PWM) signal on the PWM pin. The device features a configurable soft commutation angle and Hall offset angle. The Hall offset angle can be flexibly optimized for low-speed and high-speed performance across the full speed range.
The FG/RD pin can function as a rotational speed detector or rotor deadlock indicator. This pin is an open-drain output that must be pulled up externally.
Rich protection features include input over-voltage protection (OVP), under-voltage lockout (UVLO) protection, locked-rotor protection, over-current protection (OCP), and thermal shutdown.
The MP6616B is available in a QFN-10 (2mmx3mm) package.
-
Show more
Show less
Features & Benefits
- High-Sensitivity, Embedded Hall-Effect Sensor
- 3.3V to 18V Operating Input Supply Voltage (VCC) Range
- 2A of Continuous Output Current (IOUT)
- 100mΩ Integrated Power MOSFETs
- Configurable Speed (40000rpm Max)
- Configurable Minimum Speed and Starting Duty Cycle
- Selectable Closed-Loop or Open-Loop Speed Control
- High-Speed Accuracy in Closed-Loop Mode
- Configurable Soft Commutation Angle (45° Max)
- Configurable Hall Offset Angle (±45° Max)
- 4-Step Configurable Current Limit (4A Max)
- 1kHz to 100kHz Pulse-Width Modulation (PWM) Input Range
- Configurable Soft-Start Time (tSS)
- 27kHz Fixed Switching Frequency (fSW)
- Standby Mode
- Locked-Rotor Protection with Auto-Recovery
- Thermal Shutdown with Auto-Recovery
- Enhanced Electrostatic Discharge (ESD) Capability
- Built-In Input Over-Voltage Protection (OVP), Under-Voltage Lockout (UVLO) Protection, and Auto-Recovery
- Available in a QFN-10 (2mmx3mm) Package

Active Part Numbers:
MP6616BGD-0000-Z MP6616BGD-0000-P MP6616BGD-xxxx-Z MP6616BGD-xxxx-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
