MPQ5038-AEC1

MPQ5038-AEC1

USB PD Source Controller with 7 Configurable PDOs and Load-Shedding, AEC-Q100 Qualified

概要

The MPQ5038-AEC1 is a USB power delivery (PD) controller that is compatible with USB Type-C 2.1 and USB PD 3.0 specifications. It targets downstream-facing port (DFP) (provider) applications, such as charging-only USB PD ports and USB hubs.

The MPQ5038-AEC1 is backward compatible, supporting dedicated charging port (DCP) schemes for Quick Charge (QC) 3.0, Battery Charging Specification 1.2 (BC 1.2), Apple divider mode, Huawei fast charge protocol (FCP), and 1.2V/1.2V mode without requiring outside user interaction. It also supports BC 1.2 charging downstream port (CDP) handshaking.

The I²C interface and GPIO pins provide excellent communication with an external power converter. The MPQ5038-AEC1 supports up to 100W of PD power and programmable power supply (PPS) as well. It can flexibly configure the power data object (PDO) list, select target devices, configure charging protocols, and set the protection mode.

Two NTC pins monitor for abnormal temperature rise, such as on the USB Type-C receptacle and PCB. Power-sharing functionality supports smart power budget management between two USB PD ports. PDO capability is reduced when the car battery voltage is low. High-voltage input/output (I/O) pins support short-to-battery and short-to-VBUS protection.

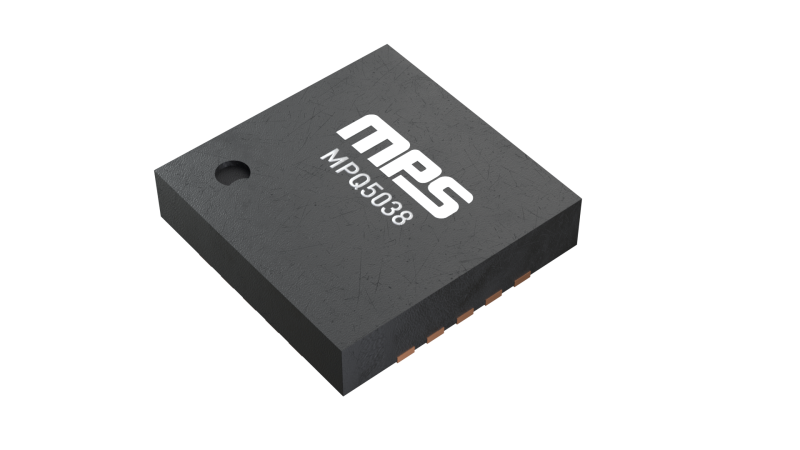

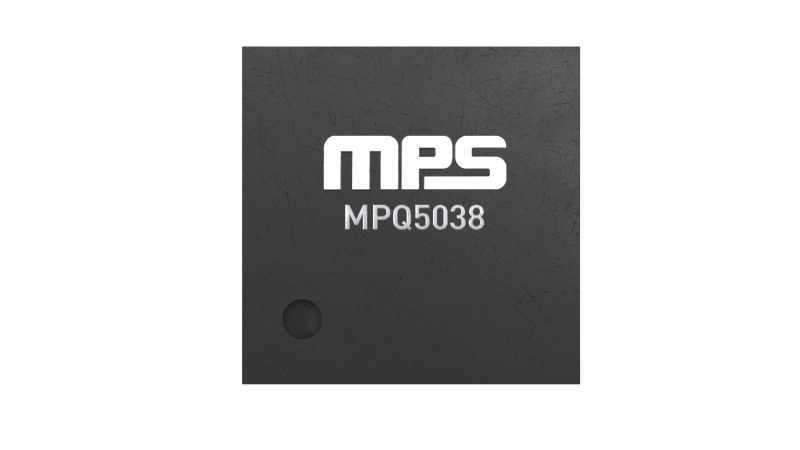

The MPQ5038-AEC1 is available in a QFN-20 (4mmx4mm) package with wettable flanks. It is available in AEC-Q100.

機能と利点

Supports 3.3V to 21V Bus Voltage (V_BUS) Range
4.6V to 5.5V VCC Supply Voltage (V_CC) Range
Supports Up to 7 Configurable Power Data Objects (PDOs)
Integrated Physical Layer for BMC
Integrated Protocol Layer
Integrated Policy Engine
Low 100μA Standby Quiescent Current (I_Q)
Supports One USB Type-C Downstream-Facing Port (DFP) with USB PD 3.0 and Programmable Power Supply (PPS)
Supports Dedicated Charging Port (DCP) Schemes for BC 1.2, 3A Divider, and 1.2V/1.2V Mode
Supports Quick Charge 3.0 (QC 3.0) and Huawei Fast Charge Protocol (FCP)
V_BUS Isolation N-Channel MOSFET Driver
Enable (EN) Off Timer Up to 120 Minutes
I²C Initiator/Target Interface and Interrupt
Configurable Power Delivery (PD) Power Management when the Negative Temperature Coefficient (NTC), Power Sharing, or Battery Low Is Tripped
Supports Configurable Battery Low Detection Threshold and Blanking Time
High-Voltage Pins for CC1, CC2, DP, and DM
Integrated High-Voltage VCONN Supply Power Switch

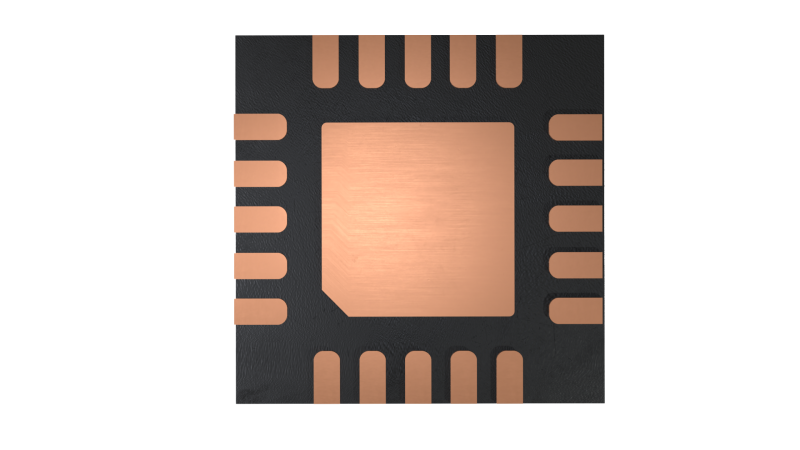

Available in a QFN-20 (4mmx4mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 1
