MPF52001-AEC2

MPF52001-AEC2

Single USB PD Controller for Source Port, Supporting Firmware Update and Advanced PDP Management, AEC-Q100 Qualified

概要

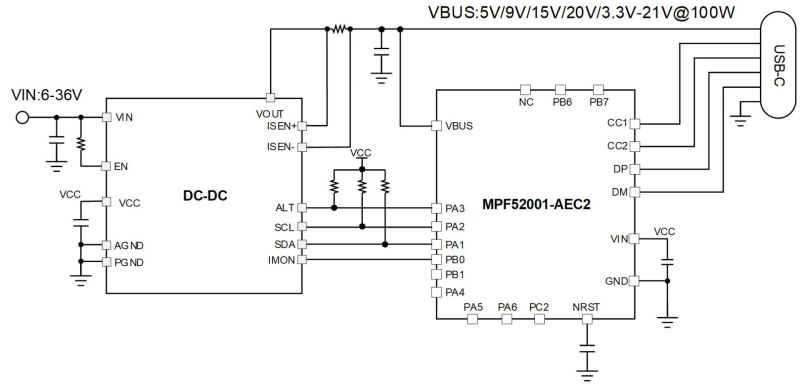

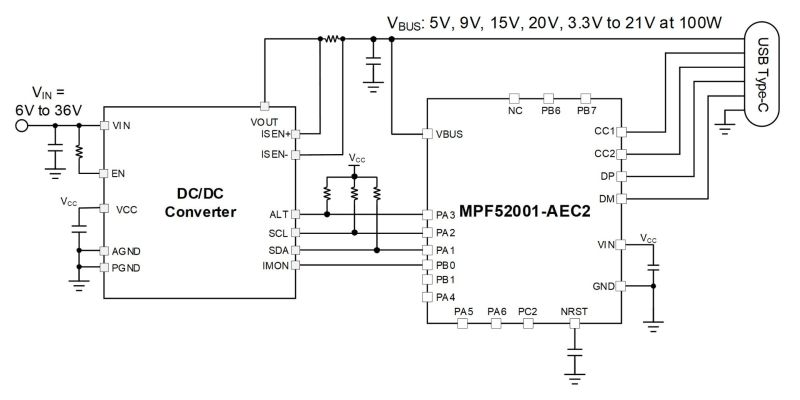

The MPF52001-AEC2 is a highly integrated USB power delivery (PD) controller for a source port. The device integrates a 32-bit ARM Cortex-M0 microcontroller, up to 36MHz operating frequency, USB Type-C port controller, and legacy charging protocol management. In addition, the configuration channel (CC) lines support a firmware update feature.

The USB Type-C port supports USB PD revision 3.1 with programmable power supply (PPS) and Qualcomm quick charge 3/4/4+ technology. This port is also backward compatible with dedicated charging port (DCP) schemes for battery charging specification (BC1.2), Apple divider mode, and Huawei fast charge protocol (FCP) and super charge protocol (SCP) without the need for outside user interaction.

Power data object (PDO) capabilities are reduced when the car battery voltage is low, or when an over-temperature warning is triggered.

Fault condition protections include bus voltage (V_BUS) over-voltage protection (OVP) and under-voltage protection (UVP), and thermal shutdown. The high-voltage input/output (I/O) pins support short-to-battery and short-to-VBUS protection.

The MPF52001-AEC2 requires a minimal number of readily available, standard external components. The MPF52001-AEC2 is available in a QFN-24 (4mmx4mm) package, and is available in AEC-Q100 Grade 2.

機能と利点

3.3V to 21V Bus Voltage (V_BUS) Range in Standard Power Range (SPR) Mode with Discharge Function
Supports Up to 48V V_BUS in Extended Power Range (EPR) Mode with External V_BUS Divider Resistor
4.6V to 5.5V Input Voltage (V_IN) Supply Range
150µA Low Deep-Sleep Supply Current (I_DSLP) Mode in Detached State
USB Power Delivery (PD) Controller for Source Port:
- Compliant with USB PD 3.1 with Programmable Power Supply (PPS), USB Type-C 2.1, and TCPC 2.0 Supporting Firmware Update
- Passed USB PD3.1 Certification Test with PPS (TID: 8467)
- Supports USB PD Alternate Mode for Display Port
- Integrated V_CONN Power Switch and Over-Current Protection (OCP)
- Load-Shedding Function at High Temperatures or Low Battery Voltage
Other Charging Protocols:
- Supports Universal Fast Charging Standard (UFCS)
- Supports Qualcomm Quick Charge 3/4/4+
- Legacy Charging Protocol Supports BC 1.2, Apple 3A Divider Mode, and Huawei Fast Charge Protocol (FCP)/Super Charge Protocol (SCP)

32-Bit ARM Cortex-M0 Microcontroller:

Integrated 12MHz and 8kHz RC Oscillator
128kB Flash with Error Correction Code (ECC), 12kB SRAM, and 4kB ROM
Three 16-Bit Timers with Pulse-Width Modulation (PWM) Function
12-Bit Analog-to-Digital Converter
Watchdog Timer (WDT)
UART and Serial Wire Debug (SWD)
Two I²C Initiator/Target Interfaces

Protections:

High-Voltage CCx/DP/DM Input/Output (I/O) and Short-to-Battery/VBUS/GND Protection
Thermal Shutdown Protection

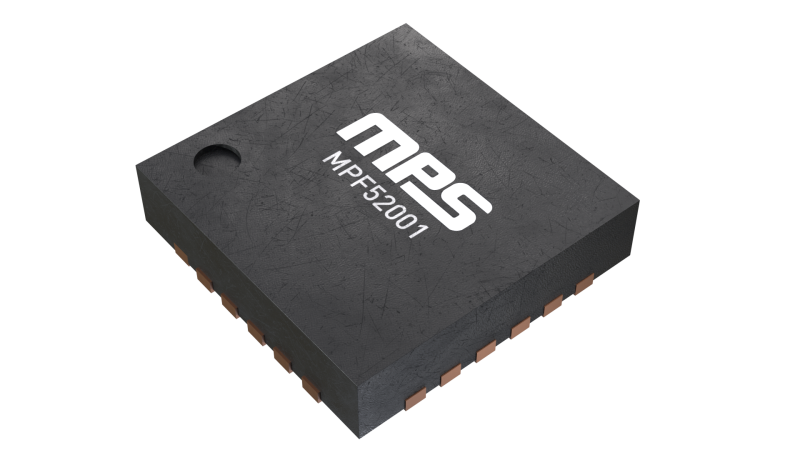

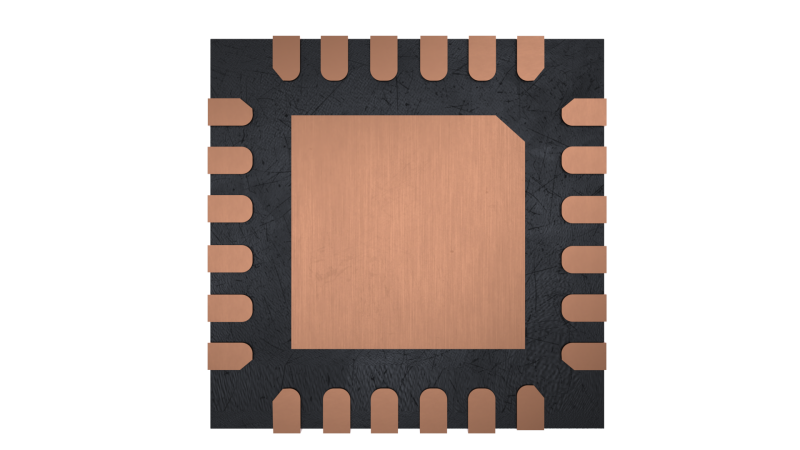

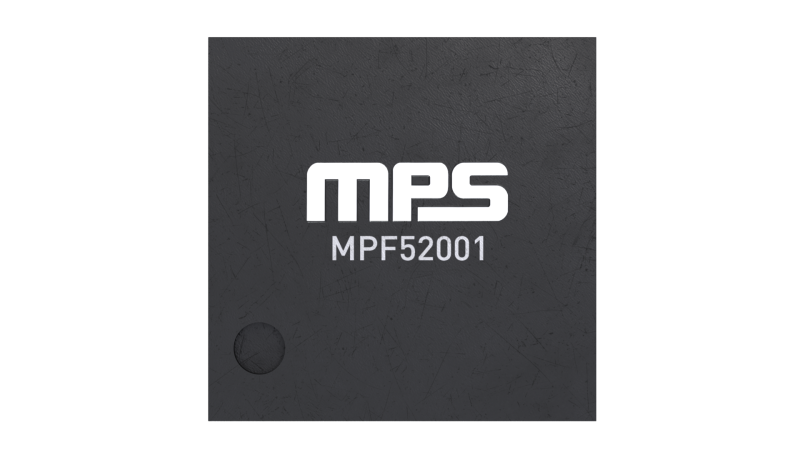

Available in a QFN-24 (4mmx4mm) Package

Available in AEC-Q100 Grade 2

入手可能な製品番号

MPF52001GRE-0000-AEC2-Z MPF52001GRE-xxxx-AEC2-Z MPF52001GRE-0000-AEC2-P MPF52001GRE-xxxx-AEC2-P

P＆Zの意味

関連商品

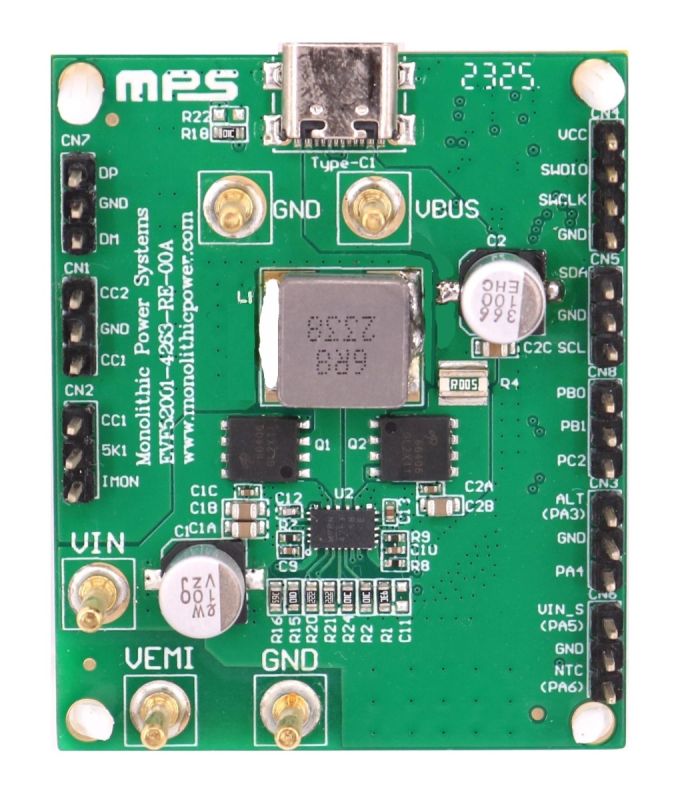

EVF52001-4263-RE-00A 100W, USB PD Sourcing Ports Supporting Firmware Update and Advanced PDP Management for Automotive Evaluation Board

The EVF52001-4263-RE-00A is designed for 100W USB power delivery (PD) applications. It is designed to demonstrate the capabilities of MPS’s automotive USB Type-C PD solution using the MPF52001-AEC2 and MPQ4263-AEC1.

The MPF52001-AEC2 is a highly integrated USB PD controller for sourcing ports. It integrates a 32-bit ARM Cortex-M0 microcontroller (MCU), up to 36MHz operating frequency, USB Type-C port controller, and legacy charging protocol management. A firmware update feature is supported via the configuration channel (CC) lines.

The MPQ4263-AEC1 is a buck-boost converter with two low-side MOSFETs (LS-FETs). The device can deliver up to 100W of peak output power (P_OUT) at a certain input supply range with excellent efficiency.

It is recommended to read the datasheets for the MPF52001-AEC2 and MPQ4263-AEC1 prior to making any changes to the EVF52001-4263-RE-00A.
