MPQ5870L-AEC1

MPQ5870L-AEC1

28V, 0.5A, Single-Channel, Smart High-Side Load Switch with High-Accuracy Current Sense, AEC-Q100 Grade 1 Qualified

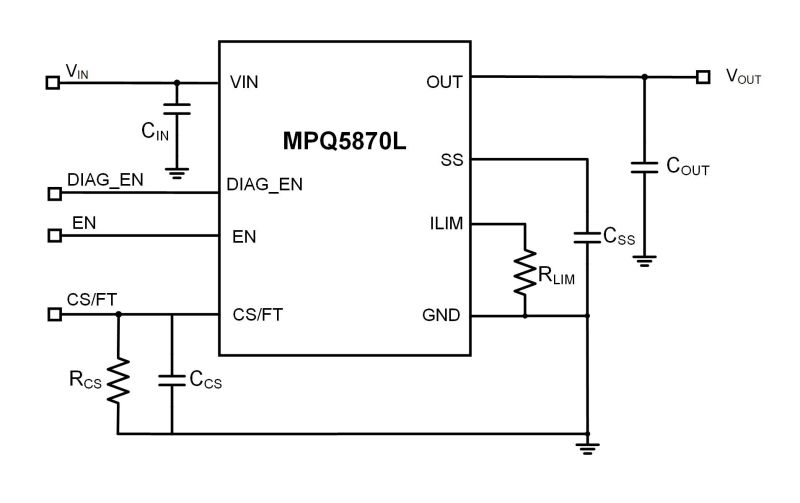

概要

The MPQ5870L-AEC1 is designed as a smart high-side power switch for a nominal 0.5A load. The device supports a wide 5V to 28V input voltage (V_IN) range. It provides a highly efficient and compact solution with a small on resistance (R_DS(ON)).

As a functional safety capable device, the MPQ5870L-AEC1 provides related safety documentation to aid in functional safety design. The device supports both internal current limits and configurable, high-accuracy external current limits. It helps to clamp the inrush current under short-circuit conditions, which improves system reliability.

An adjustable start-up slew rate also helps to reduce the inrush current during start-up. The CS/FT pin provides high-accuracy current-sensing (CS), which achieves accurate, real-time diagnostics without further calibration. The CS/FT pin voltage (V_CS/FT) represents 1/KCS of the load current, where KCS is a constant value across the temperature and supply voltage ranges. Meanwhile, the CS/FT pin can report a fault by pulling up its voltage.

Full diagnostics during both on and off states have been developed for the MPQ5870L-AEC1. By pulling the DIAG_EN pin up or down, the diagnostic functions (CS, off-state open-load/short-to-battery detection) can be enabled or disabled. If an off-state diagnostic is not required in the system, the function can be disabled by connecting it to the EN pin to further reduce the quiescent current (I_Q).

The MPQ5870L-AEC1 is available in QFN-8 (2mmx2.5mm) and SOT583 packages, and is available in AEC-Q100 Grade 1 and AEC-Q100-012 Test Grade A.

機能と利点

Built to Handle Tough Automotive Transients:
- Load Dump Up to 42V
- Cold Crank Down to 3.5V
- Available in AEC-Q100 Grade 1
Cooler Thermals:
- Integrated MOSFET
Extends Vehicle Battery Life:
- Extremely Low Standby Current: 0.5µA
- Low Quiescent Current (I_Q) Operation Mode: 425µA
Reduces Board Size:
- Available in QFN-8 (2.0mmx2.5mm) and SOT583 Packages

Flexibility:

Configurable External Current Limit
Adjustable Start-Up Slew Rate
Compatible with 1.8V and 3.3V Logic

Full Diagnostics and Protections:

High-Accuracy Current Sense (CS): ±1% at 0.5A and ±20% at 10mA
Loss of GND Protection
VDS Clamp for Inductive Load-Switching
On-State and Off-State Open-Load and Short-to-Battery Detection
Thermal Shutdown
Available in AEC-Q100-012 Test Grade A

Functional Safety System Design Capability:

Documents Available for MPSafe^TM QM System Design

入手可能な製品番号

MPQ5870LGRPE-AEC1-Z MPQ5870LGRPE-AEC1-P MPQ5870LGTL-AEC1-Z MPQ5870LGTL-AEC1-P
