MPM54522

16V V_IN, 5.5V V_OUT, Dual 6A, Single 12A, Power Module with I²C Interface

データシート

概要

The MPM54522 is a dual 6A power module that integrates two high-efficiency, step-down DC/DC converter ICs, two inductors, and selected passive components onto a single, over-molded package.

The two outputs of the MPM54522 can be paralleled for up to 12A of current. The power module offers an active current-balancing function that allows equal current sharing for the outputs in parallel operation.

The MPM54522 offers a dedicated, configurable low-dropout (LDO) regulator with up to 500mA of output current (I_OUT) to provide ultra-low noise output.

The MPM54522 adopts constant-on-time (COT) control to provide fast transient response and minimize the required output capacitance.

The MPM54522 provides on-chip non-volatile memory (NVM) to store and restore device configurations. Operation parameters, timing, and protection thresholds are fully configurable via the I²C bus. The MPM54522 offers on-chip voltage sensing that allows accurate input voltage (V_IN) and output voltage (V_OUT) telemetry via the I²C bus.

The MPM54522 is available in an ultra-thin ECLGA (5mmx6.5mmx2.76mm) package.

機能と利点

Wide 3V to 16V Input Voltage (V_INx, where x = 1 or 2) Range
Dual 6A and Up to 12A for Parallel Operation
MODE Pin to Select Output Voltage (V_OUTx, where x = 1 or 2), Parallel Mode, and Timing via Pin-Strapping
Remote Sense for Both Output Channels
Configurable 500mA-Rated Low-Dropout (LDO) Regulator with V_INx Up to 3.6V
Configurable Soft Start (SS), Soft Shutdown, and Delay with MPS-Patented FLEX-Timer Sequence Control
Configurable Reference Voltage (V_REF) and Slew Rate
Configurable Switching Frequency (f_SW): 500kHz, 750kHz, 1MHz, and 1.25MHz
Accurate V_OUTx and V_INx Telemetry
Open-Drain Power Good (PG) Indication and General Status Interrupt
Available in an Ultra-Thin ECLGA (5mmx6.5mmx2.76mm) Package

入手可能な製品番号

MPM54522GPC-xxxx-Z MPM54522GPC-xxxx-P MPM54522GPC-xxxx-T MPM54522GPC-0000-Z MPM54522GPC-0000-P MPM54522GPC-0000-T

P＆Zの意味

関連商品

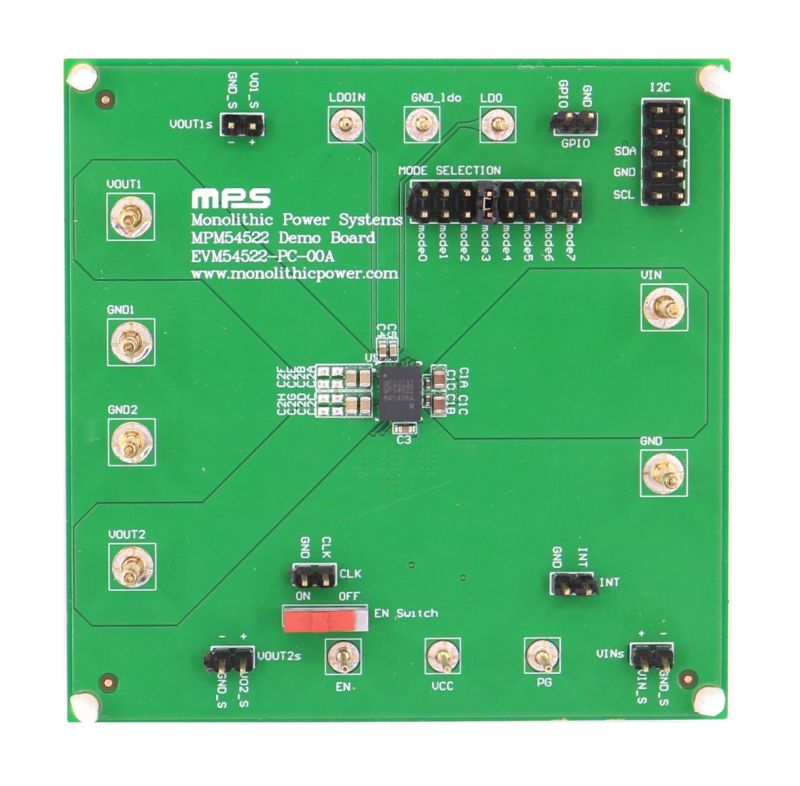

EVM54522-PC-00A 16V, Dual 6A, Single 12A Power Module Evaluation Board

The EVM54522-PC-00A is an evaluation board designed to demonstrate the capabilities of the MPM54522, a dual 6A power module that integrates a high-efficiency, step-down DC/DC converter IC, two inductors, and select passive components onto a single, over-molded package.

The MPM54522’s two outputs can be paralleled for up to 12A of output current (I_OUT). It also offers active current balancing, which allows for equal current sharing of the outputs in parallel operation. The MPM54522 offers a dedicated, configurable low-dropout (LDO) regulator with up to 500mA of I_OUT to provide ultra-low noise output. The MPM54522 also adopts a constant-on-time (COT) control scheme to provide fast transient response and minimize the required output capacitance (C_OUT).

It is recommended to read the datasheet for the MPM54522 prior to making any changes to the EVM54522-PC-00A.

￥3,991.75
+ tax

Virtual Bench Pro 4.0

I²Cインタフェースによる複数のMPSデジタルパワーソリューションの設定およびモニタで使用されるMPSがサポートするグラフィカルユーザーインタフェース (GUI)
