MPM3812C

MPM3812C

2.3V to 5.5V Input, 1A, Power Module in an Ultra-Small Package

データシート

概要

The MPM3812C is a monolithic, step-down switch-mode converter with built-in, internal power MOSFETs and an inductor. The device achieves 1A of continuous output current (I_OUT) from a 2.3V to 5.5V input voltage (V_IN) range, with excellent load and line regulation.

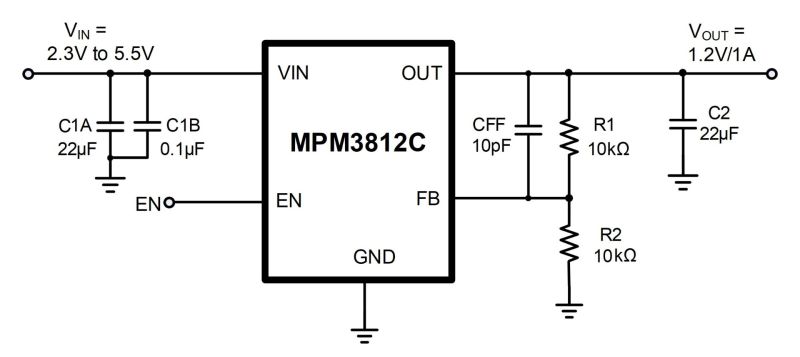

The MPM3812C is ideal for a wide range of applications, including high-performance digital signal processors (DSPs), wireless power, portable and mobile devices, and other low-power systems. The output voltage (V_OUT) can be regulated to as low as 0.6V. Only input capacitors, output capacitors, and feedback (FB) resistors are needed to complete the design.

The constant-on-time (COT) control scheme provides fast transient response and high light-load efficiency, and it facilitates loop stabilization.

Full protection features include cycle-by-cycle current limiting and thermal shutdown.

The MPM3812C requires a minimal number of readily available, standard external components, and is available in an ultra-small ECLGA-6 (1.5mmx2mmx0.96mm) package.

機能と利点

Wide 2.3V to 5.5V Operating Input Voltage (V_IN) Range
Output Voltage (V_OUT) as Low as 0.6V
100% Duty Cycle in Dropout Mode
1A of Continuous Output Current (I_OUT) and 1.2A Peak I_OUT
2.4MHz Switching Frequency (f_SW)
Forced Continuous Conduction Mode (FCCM)
Enable (EN) for Power Sequencing
Cycle-by-Cycle Over-Current Protection (OCP)
0.5ms Internal Soft-Start (SS) Time (t_SS-ON)
Output Discharge
Short-Circuit Protection (SCP) with Hiccup Mode
Thermal Shutdown
Stable with Low-ESR Output Ceramic Capacitors
Available in an ECLGA-6 (1.5mmx2mmx0.96 mm) Package

入手可能な製品番号

MPM3812CGPH-Z MPM3812CGPH-P

P＆Zの意味

関連商品

EVM3812C-PH-01A 5.5V, 1A, Ultra-Small Package Step-Down Module with CCM Evaluation Board

The EVM3812C-PH-01A evaluation board is designed to demonstrate the capabilities of the MPM3812C, a fully integrated, high-efficiency, synchronous, step-down power module with up to 1A of output current (I_OUT).

The MPM3812C adopts internally compensated constant-on-time (COT) control to provide fast transient response and easy loop stabilization. The switching frequency (f_SW) is fixed at 2.4MHz. Refer to the MPM3812C datasheet for more detailed information.

It is recommended to read the datasheet for the MPM3812C prior to making any changes to the EVM3812C-PH-01A.
