MPM3809

MPM3809

2.3V to 5.5V Input, 0.6A, PSM Power Module in an Ultra-Small Package

データシート

概要

The MPM3809 is a monolithic, step-down switch-mode converter with built-in, internal power MOSFETs and an inductor. The device achieves 0.6A of continuous output current (I_OUT) from a 2.3V to 5.5V input voltage (V_IN) range, with excellent load and line regulation.

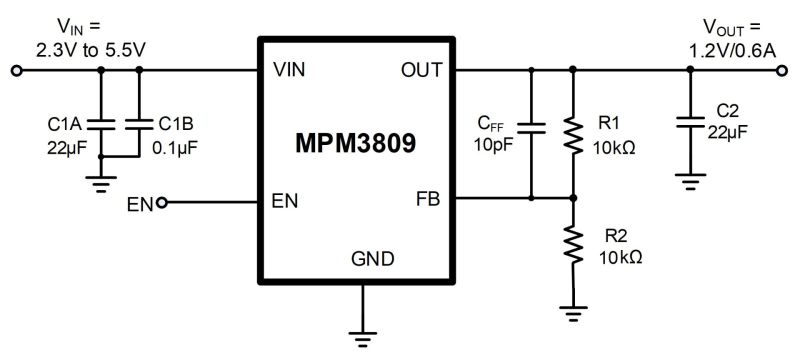

The MPM3809 is ideal for a wide range of applications, including high-performance digital signal processors (DSPs), wireless power, portable and mobile devices, and other low-power systems. The output voltage (V_OUT) can be regulated to as low as 0.6V. Only input capacitors, output capacitors, and feedback (FB) resistors are needed to complete the design.

The constant-on-time (COT) control scheme provides fast transient response, high light-load efficiency, and facilitates loop stabilization.

Full protection features include cycle-by-cycle current limiting and thermal shutdown.

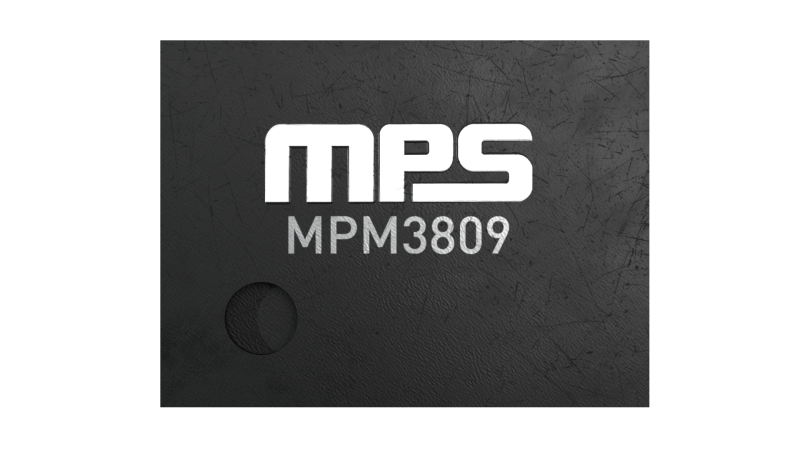

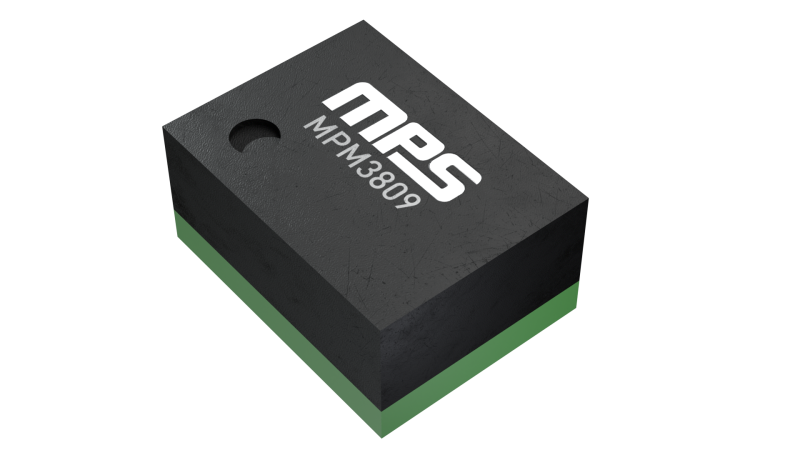

The MPM3809 requires a minimal number of readily available, standard external components, and is available in an ultra-small ECLGA-6 (1.5mmx2mmx1mm) package.

機能と利点

Wide 2.3V to 5.5V Operating Input Voltage (V_IN) Range
Output Voltage (V_OUT) as Low as 0.6V
100% Duty Cycle in Dropout Mode
0.6A Output Current (I_OUT)
2.4MHz Switching Frequency (f_SW)
Enable (EN) for Power Sequencing
Cycle-by-Cycle Over-Current Protection (OCP)
0.5ms Internal Soft-Start (SS) Time (t_SS-ON)
Output Discharge
Short-Circuit Protection (SCP) with Hiccup Mode
Thermal Shutdown
Stable with Low-ESR, Ceramic Output Capacitors

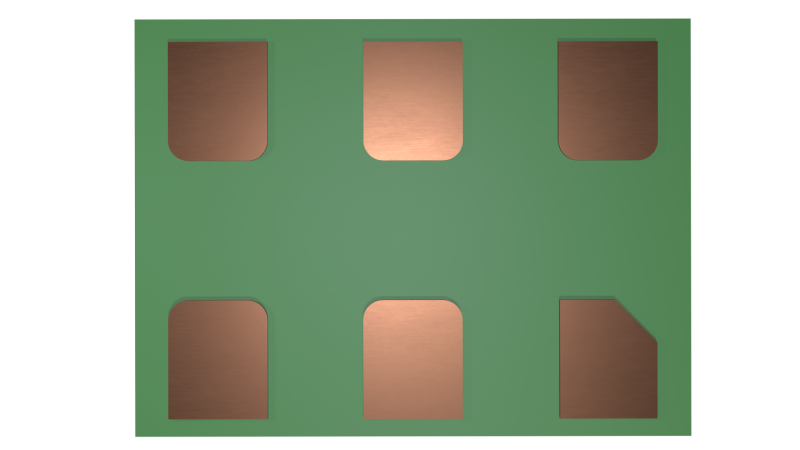

Available in an ECLGA-6 (1.5mmx2mmx1mm) Package

入手可能な製品番号

MPM3809GPH-Z MPM3809GPH-P

P＆Zの意味

関連商品

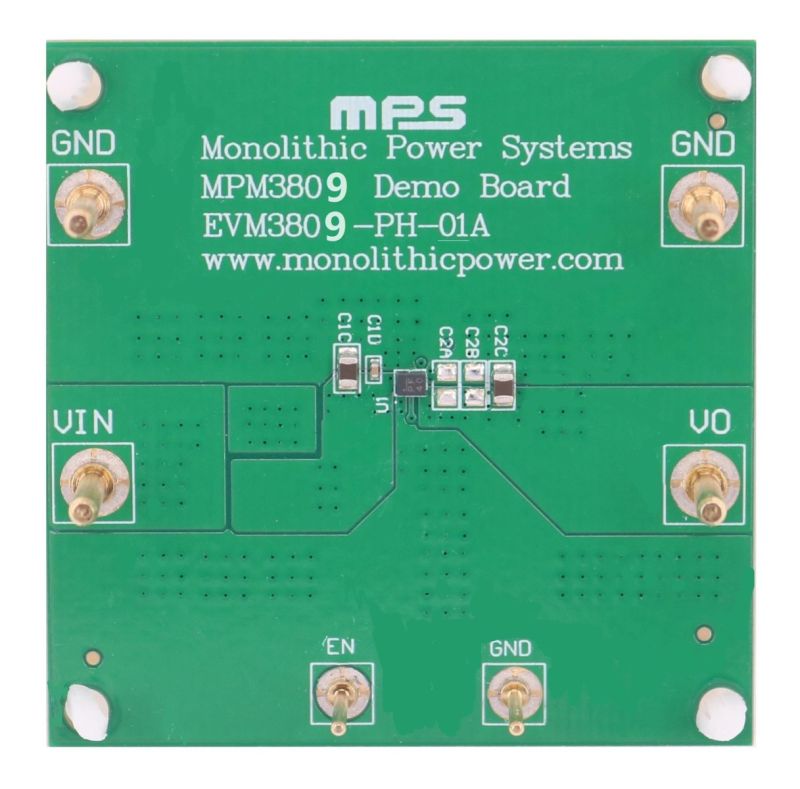

EVM3809-PH-01A 5.5V, 0.6A, Ultra-Small Package Step-Down Module Evaluation Board

The EVM3809-PH-01A evaluation board is designed to demonstrate the capabilities of the MPM3809, a fully integrated, high-efficiency, synchronous, step-down power module. The device provides up to 0.6A of output current (I_OUT).

The MPM3809 features internally compensated constant-on-time (COT) control to provide fast transient response and ease loop stabilization. The switching frequency (f_SW) is fixed at 2.4MHz when entering continuous conduction mode (CCM). Refer to the MPM3809 datasheet for more detailed information.

It is recommended to read the datasheet for the MPM3809 prior to making any changes to the EVM3809-PH-01A.

￥3,603.75
+ tax
