Dual-Loop, Digital, 1 + 1 Phase Controller with PMBus Interface for VR13.HC/AVSBus

概要

The MP2976 is a dual-loop, digital, multi-phase controller that provides power for the CPU core of VR13.HC platforms. It works with MPS’s and multiple vendors’ DrMOS products (including MPS’s Intelli-Phase^TM) to provide a multi-phase voltage regulator (VR) solution with a minimal number of external components. The device can be configured for single-phase operation for rail 1 and rail 2.

The MP2976 provides an on-chip non-volatile memory (NVM) to store and restore device configurations. Device configurations and fault parameters are easy to configure or monitor via the PMBus/I²C interface. The device can monitor and report the output current (I_OUT) through the current-sense (CS) output from DrMOS products.

The MP2976 is based on unique, digital, multi-phase, nonlinear control to provide fast transient response to load transients with minimal output capacitors. With only one power loop control method for both steady state and load transient, power loop compensation is simple to configure.

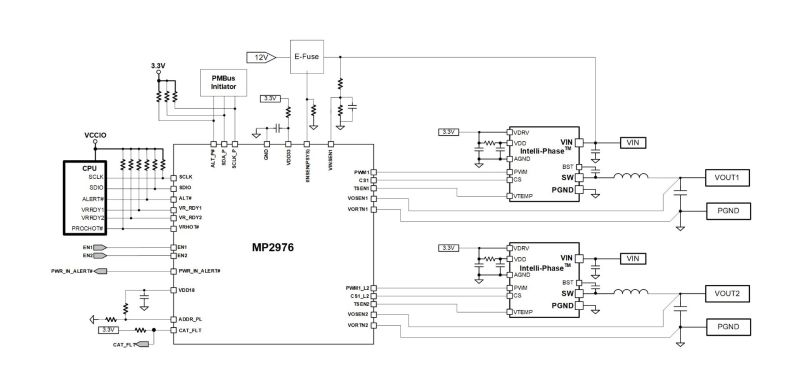

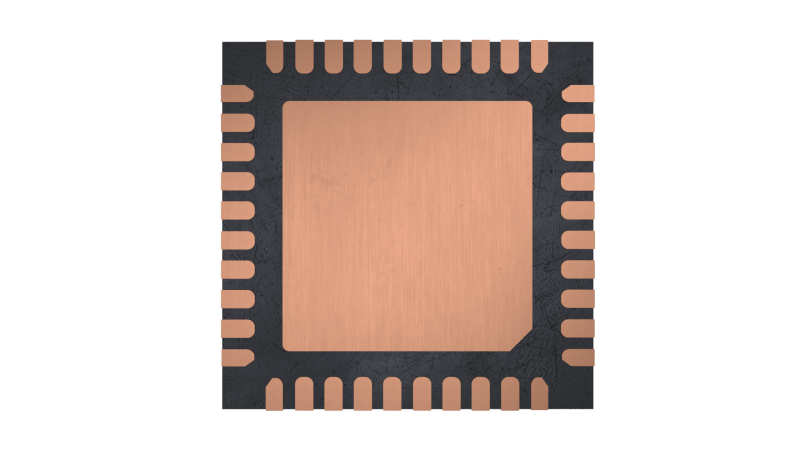

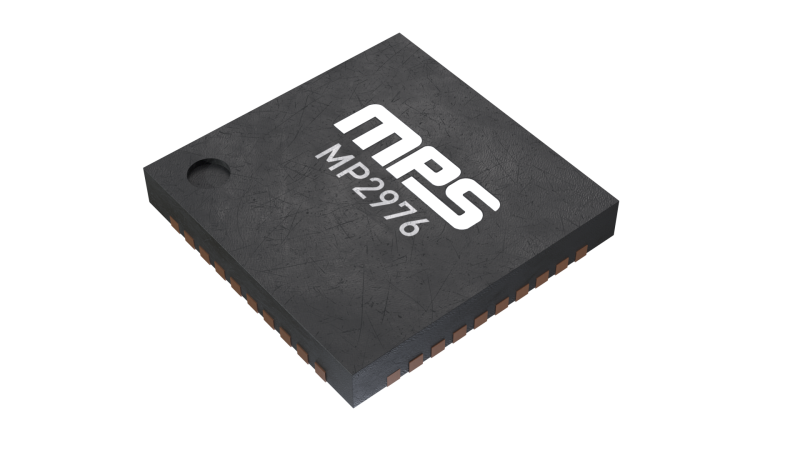

The MP2976 is available in a QFN-40 (5mmx5mm) package.

機能と利点

Intel VR13.HC Compliant
Backwards VR13 and VR12.5 Compliant
PMBus/I²C and AVSBus Compatible
Selectable High-Speed Bus: SVID, AVSBus, or PVID
Switching Frequency (f_SW) Up to 3MHz
Compatible with DrMOS Products from Multiple Vendors
Multi-Configuration by Pin Strapping
Built-In Non-Volatile Memory (NVM) to Store Custom Configurations
Automatic Loop Compensation
Minimal External Components
Overshoot Reduction with Nonlinear Control
Flexible Phase Assignment for Dual Rails
Automatic Phase-Shedding (APS) and IVID Function to Improve Overall Efficiency
Phase-to-Phase Active Current Balancing with Configurable Offsets for Thermal Balance
Digital Load-Line Regulation
DrMOS Fault Detection and Fault AutoRecords to the NVM
Supports Overclocking Mode
Line-Floating Detection
Standby Mode to Save Power
Input Voltage (V_IN), Output Voltage (V_OUT), Current, Power, and Regulator Temperature Monitoring
Under-Voltage Lockout (UVLO), Over-Current Protection (OVP), Under-Voltage Protection (UVP), Over-Current Protection (OCP), Under-Current Protection (UCP), Over-Temperature Protection (OTP), and Reverse-Voltage Protection (RVP) with No Action, Latch, Retry, or Hiccup Mode Options
Enhanced Register Map Read/Write Protection for Improved Security
Available in a QFN-40 (5mmx5mm) Package
