MP2007

MP2007

NOT RECOMMENDED FOR NEW DESIGNS

3A, DDR Termination Regulator

ALTERNATIVE PART

NRFND Datasheet

MP2007 continues to be in production for existing customers. Please consider this alternative for new designs:

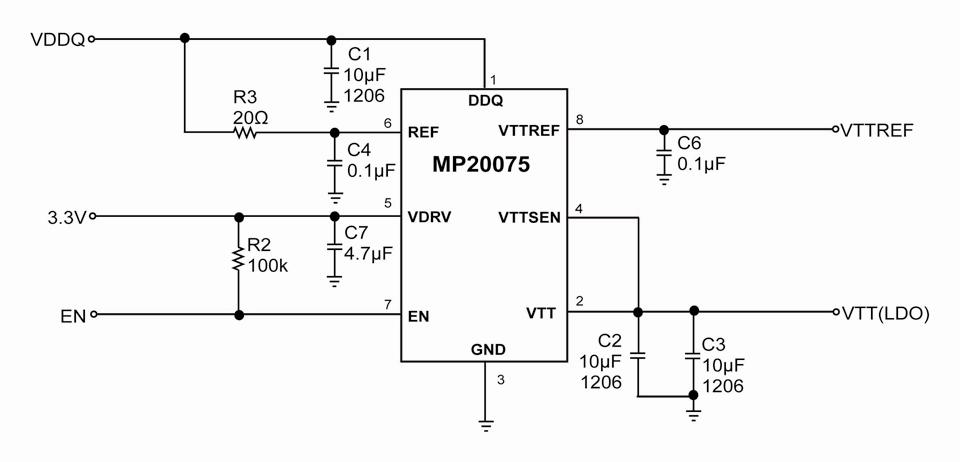

MP20075

3A, DDR Termination Regulator

Features & Benefits

VDDQ Voltage Range: 1.05V to 3.6 V
Up to 3A Integrated Sink/Source Linear Regulator with Accurate VREF/2 Divider Reference for DDR2/3/3L/4 Termination
Requires Only 20μF Ceramic Output Capacitance
Drive Voltage: 3.3V
1.05V Input (VDDQ) Helps Reduce Total Power Dissipation
Integrated Divider Tracks VREF for accurate VTT and VTTREF Output Voltage
Kelvin Sensing (VTTSEN)
±30mV Accuracy for VTT
±18mV Accuracy for VTTREF
Built-In Soft-Start, UVLO and OCL
Thermal Shutdown

… and many more!

概要

The MP2007 integrates the DDR memory termination regulator with the output voltage (VTT) and a buffered VTTREF outputs is a half of VREF. The VTT-LDO is a 3A sink/source tracking termination regulator. It is specifically designed for low-cost/low-external component count systems, where space is a premium. The MP2007 maintains a fast transient response only requiring 20uF (2x10uF) of ceramic output capacitance. The MP2007 supports Kelvin sensing functions. The MP2007 is available in the 8-pin MSOP with Exposed PAD package and is specified from −40 degree C to 85 degree C.

機能と利点

VDDQ Voltage Range: 1.3V to 6.0 V
Up to 3A Integrated Sink/Source Linear Regulator with Accurate VREF/2 Divider Reference for DDR Termination
Requires Only 20uF Ceramic Output Capacitance
Drive Voltage Range: 4.5 V to 5.5 V
1.3V Input (VDDQ) Helps Reduce Total Power Dissipation
Integrated Divider Tracks VREF for VTT and VTTREF
Kelvin Sensing (VTTSEN)
±20mV Accuracy for VTT and VTTREF
Built-In Soft-Start, UVLO and OCL
Thermal Shutdown

アクティブ部品番号

MP2007DH-LF-P MP2007DH-LF-Z MP2007DH-LF

P＆Zの意味

Evaluation Tools

EV2007DH-00A Evaluation Kit 3A, 1.30V - 6.0V DDR Memory VTT Termination Regulator

The MP2007 integrates the DDR memory termination regulator with the output voltage (VTT) and a buffered VTTREF whose output is half of VREF.

The VTT-LDO is a 3A sink/source tracking termination regulator. It is specifically designed for low-cost/low-external component count systems, where space is a premium.

The MP2007 maintains a fast transient response only requiring 20uF (2x10uF) of ceramic output capacitance. The MP2007 supports Kelvin sensing functions.

The MP2007 is available in the 8-pin MSOP with Exposed PAD,package and is specified from ?40oC to 85oC.

￥3,405.25
+ tax
