MP020-5

MP020-5

NOT RECOMMENDED FOR NEW DESIGNS

Primary-side regulator with CV/CC control

ALTERNATIVE PART

NRFND Datasheet

MP020-5 continues to be in production for existing customers. Please consider this alternative for new designs:

MP020A-5

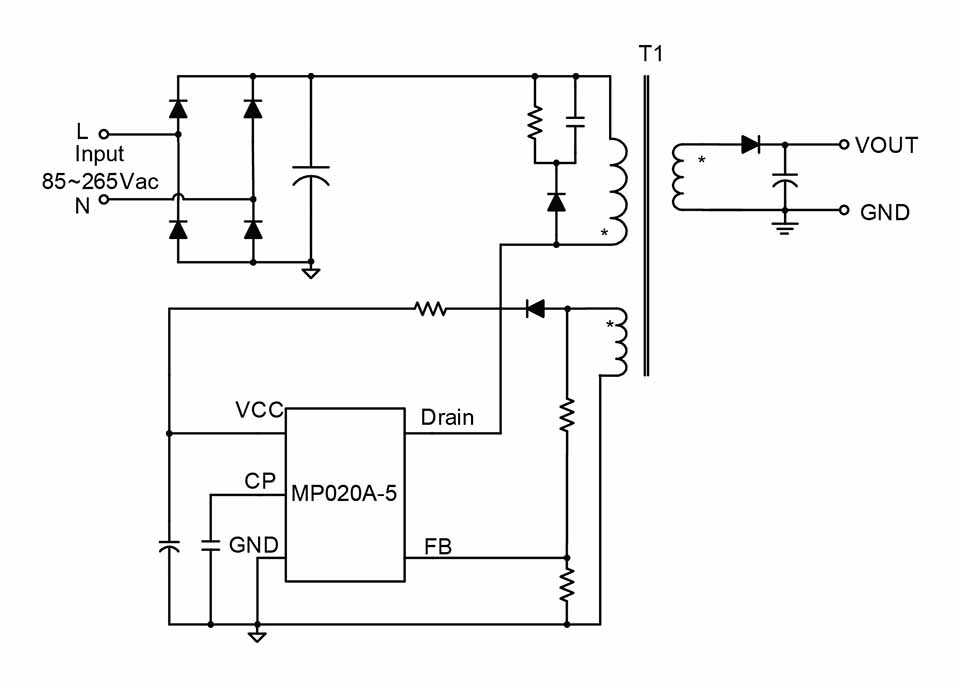

Offline, Primary-Side Regulator with CC/CV Control and a 700V MOSFET

Features & Benefits

Primary-Side Control without Optocoupler or Secondary Feedback Circuit
Precise Constant Current and Constant Voltage Control (CC/CV)
Integrated 700V MOSFET with Minimal External Components
Variable Off Time, Peak-Current Control
550µA High-Voltage Current Source
30mW No-Load Power Consumption
Programmable Cable Compensation
OVP, OCP, OCkP, OTP, and VCC UVLO
Natural Spectrum Shaping for Improved EMI Signature
Low Cost and Simple External Circuit
Available in a SOIC8-7A Package

… and many more!

概要

The MP020-5 is an offline, primary-side regulator that provides accurate constant voltage and constant current regulation without an opto-coupler or a secondary feedback circuit. It has an integrated 700V MOSFET. The MP020-5's variable off-time control allows a flyback converter to operate in discontinuous conduction mode. The MP020-5 also features protection functions such as VCC under-voltage lockout, over-current protection, over-temperature protection, open-loop protection and over-voltage protection. Its internal high-voltage start-up current source and power-saving technologies limit the no-load power consumption to less than 30mW. The MP020-5's variable-switching-frequency technology provides natural spectrum shaping to smooth the EMI signature, making it suitable for offline, low-power battery chargers and adapters. The MP020-5 is available in SOIC8-7A.
