MPQ7932-AEC1

MPQ7932-AEC1

MPSafe^TM-Compatible, 5.5V PMIC with 6 Buck Converters, AEC-Q100 Qualified

概要

The MPQ7932-AEC1 is a power management IC (PMIC) designed to meet the power management requirements of processors used in various automotive systems.

Six integrated, synchronous buck converters can be configured for three-rail, dual-phase operation or configured to act as six-rail, single-phase converters. With dynamic voltage scaling, the output voltage (V_OUTx) of each converter can be changed during normal operation. The PMBus interface provides packet error checking (PEC) and an integrated multi-page, one-time programmable (MOTP) memory for a high degree of configurability.

To prevent overshoot during start-up, each converter features soft-start (SS) functionality. To allow for proper discharge during shutdown, soft-shutdown functionality is featured on each converter. The slew rate for both functions can be configured via the digital registers. The MPQ7932-AEC1 features a configurable windowed or Q&A watchdog, dedicated WDI pin, external voltage monitor, and sequence output pin.

A 2MHz, fixed-frequency peak current mode control regulates V_OUTx, offers fast transient performance, and significantly reduces external inductance and capacitance. Frequency spread spectrum (FSS) reduces EMI noises. The full protection suite features under-voltage lockout (UVLO), under-voltage protection (UVP), over-voltage protection (OVP), and thermal shutdown.

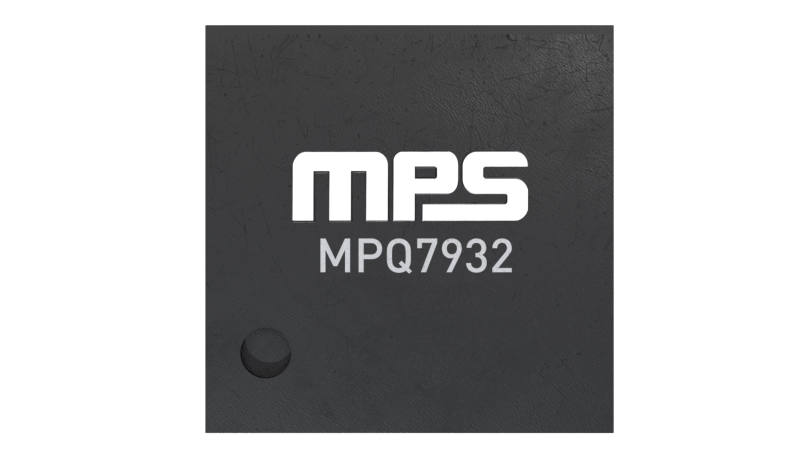

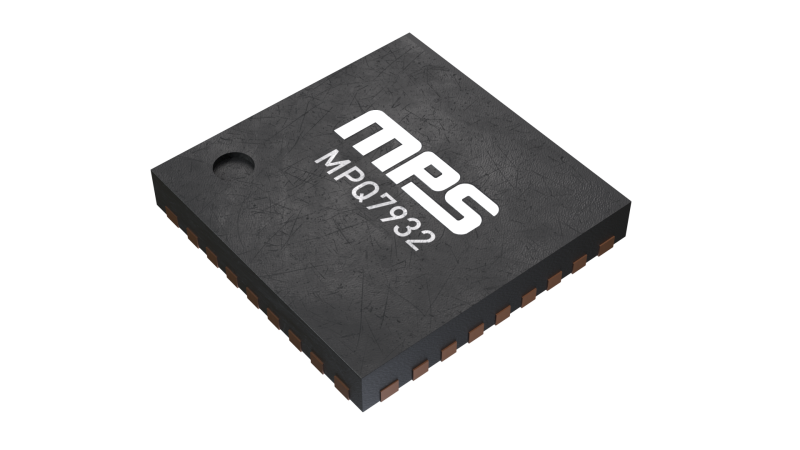

The MPQ7932-AEC1 is available in a TQFN-32 (5mmx5mm) package, and is available in AEC-Q100 Grade 1.

機能と利点

Designed for Automotive Applications:
- 2.7V to 5.5V Input Voltage (V_IN) Range
- -40°C to +150°C Junction Temperature (T_J) Rating
- Available in AEC-Q100 Grade 1
Reduces Board Size and BOM:
- 2x 4A Bucks
- 2x 3A Bucks
- 2x 1A Bucks
- Optional Multi-Phase Operation
- Adjustable Output via Registers
- Integrated Compensation Network

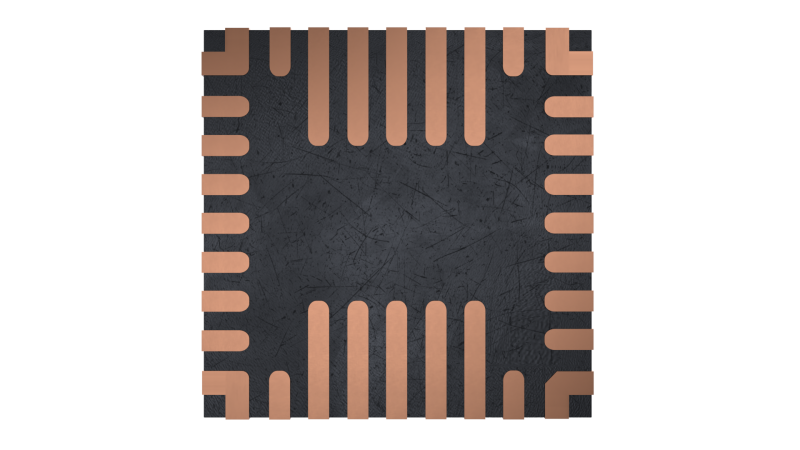

- Available in a TQFN-32 (5mmx5mm) Package with Wettable Flanks

Optimized for EMC/EMI:

180° Phase Shift Between Bucks 1/3/6 and Bucks 2/4/5
2MHz Fixed Switching Frequency (f_SW)
Frequency Spread Spectrum (FSS)

Additional Features:

Multi-Page, One-Time Programmable (MOTP) Memory
Configurable Sequencing
External Voltage Monitor
Sequence Output
Power Good (PG)/ALERT# Indicator
Independent Over-Voltage Protection (OVP) and Under-Voltage Protection (UVP)
Dynamic Voltage Scaling
Windowed or Q&A Watchdog Timer
PMBus Interface with Packet Error Checking (PEC)

Enabled Functional Safety System:

MPSafe^TM-Compatible – Functional Safety Support Document Available

入手可能な製品番号

MPQ7932GUTE-xxxx-AEC1-Z MPQ7932GUTE-xxxx-AEC1-P MPQ7932GUTE-0002-AEC1-Z MPQ7932GUTE-0002-AEC1-P
