MPSafe^TM-Compatible, 5.5V PMIC for SoCs, 5 LDOs, 4 GPIOs, and 2 Voltage Monitors, AEC-Q100 Qualified

概要

The MPQ7970-AEC1 is a power management IC (PMIC) designed to power a variety of system-on-chips (SoCs) with a requirement for multiple low-dropout (LDO) regulators.

Five linear LDOs can provide up to 350mA of load current per channel. Three independent voltage inputs allow for different input voltage levels to optimize dropout for their respective outputs. There are four GPIO pins that can be used for power sequencing and two voltage monitors, including one differential monitor to monitor two external voltage rails.

Protection features include under-voltage lockout (UVLO), over-current protection (OCP), under-voltage protection (UVP), over-voltage protection (OVP), and thermal shutdown.

The I²C interface features packet error checking (PEC) and integrated one-time programmable (OTP) memory to allow for configurability.

The MPQ7970-AEC1 is available in a TQFN-24 (5mmx5mm) package. It is available in AEC-Q100 Grade 1.

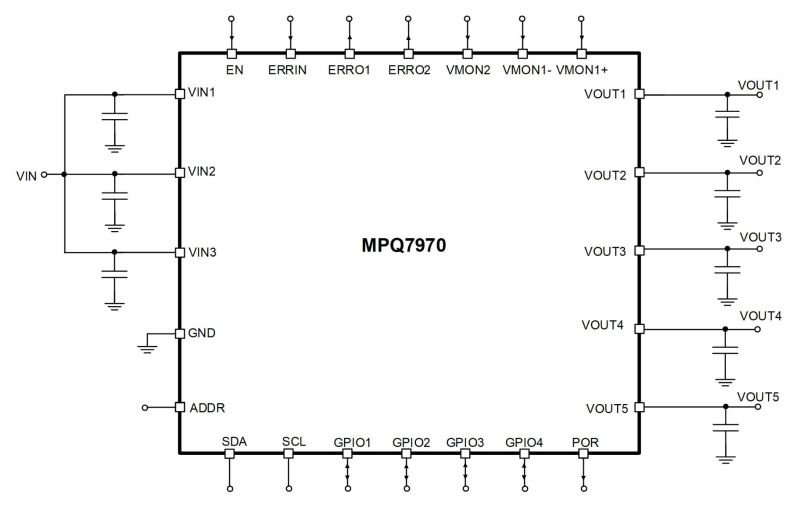

機能と利点

Designed for Automotive Applications:
- 2.8V to 5.5V Operating Input Voltage (V_IN)
- Junction Temperature (T_J) Operation from -40°C to +150°C
Reduces Board Size and BOM:
- 5x 350mA Low-Dropout (LDO) Regulators
- 4x GPIOs
- 2x Voltage Monitors
  - 1x Differential Monitor
  - 1x Normal Monitor
- Adjustable Output Voltage
- I²C Interface with Packet Error Checking (PEC)

Enables Functional Safety Capability

Built-in Self-Testing (BIST)
Over-Voltage (OV)/Under-Voltage (UV) Monitor
Clock Monitor
Window or Q&A Watchdog Timer
Protected Registers
MPSafe^TM Compatible – Functional Safety Supporting Document Available

Additional Features:

Multi-Page One-Time Programmable (OTP) Memory
Independent Voltage Supervisor
Configurable Sequencing
Under-Voltage Protection (UVP)
Over-Voltage Protection (OVP)
Over-Current Protection (OCP)
Thermal Shutdown Protection
Power On Reset (POR) and Error Indicator
Available in a TQFN-24 (5mmx5mm) Package
Available with Wettable Flanks
AEC-Q100 Grade 1
