MP2040

MP2040

NOT RECOMMENDED FOR NEW DESIGNS

Fast Transient Response, 3A Dual Supply Very Low Dropout Linear Regulator

ALTERNATIVE PART

NRFND Datasheet

MP2040 continues to be in production for existing customers. Please consider this alternative for new designs:

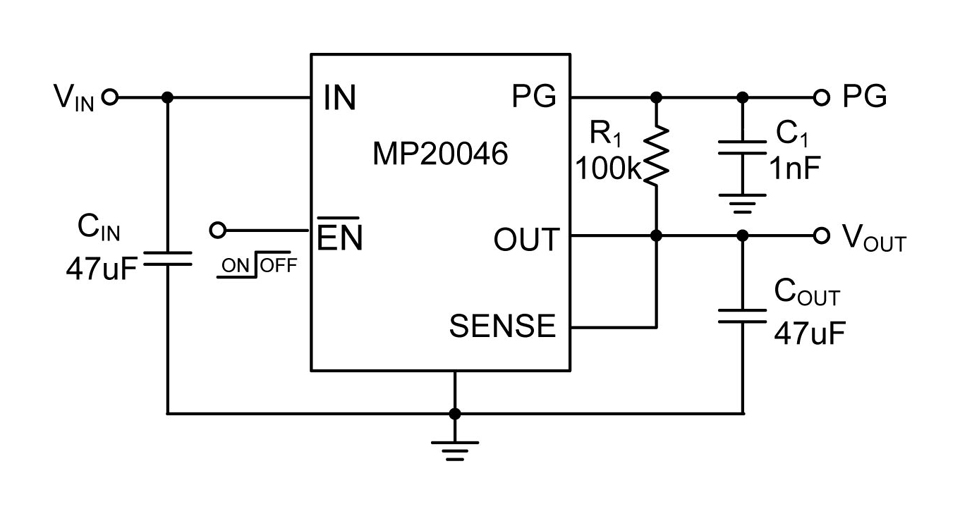

MP20046

Fast Transient Response, 2A Low Dropout Voltage Regulator

Features & Benefits

Up to 2A Output Current
Low 210mV Dropout at 2A
Fast Transient Response
Open Drain Power-Good(PG) Status Output
High 70dB at100Hz PSRR
Low 17μV_RMS Output Noise
Current Limit and Thermal Protection
Available in SOIC8 with Exposed Pad and 10-pin QFN Packages

… and many more!

概要

The MP2040 is a very low dropout, dual supply linear regulator. The use of two supplies allows the BIAS to control an NMOS device. The NMOS device supplies power to the load via the IN. In this way the input supply can be just above the desired output, yet still provide very good regulation performance due to the higher bias supply. The BIAS operates from a 3.3V to 5.5V input and regulates the output voltage to as low as 0.9V, and as high as 3.3V. The MP2040 can supply up to 3A of load current with a typical dropout voltage of 150mV. The BIAS runs the internal reference and drive circuitry, while the output current comes directly from the IN for high efficiency regulation. Other features of MP2040 include thermal overload and current limit protection, power good indicator, stability with ultra low ESR ceramic capacitors as low as 1uF, and fast transient response. The MP2040 is available in 10-pin QFN (3mm x 3mm), and in QFN (5mm x 5mm) packages.
