MP1682C

16V, 2A, 1.1MHz, High-Efficiency, Synchronous Step-Down Converter with FCCM in an SOT563 Package

Overview
Design Resources
Technical Forum
Quality

MP1682C

MP1682C

16V, 2A, 1.1MHz, High-Efficiency, Synchronous Step-Down Converter with FCCM in an SOT563 Package

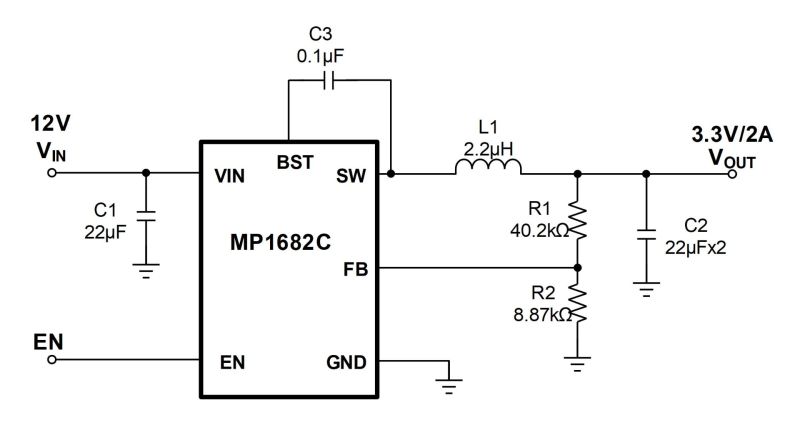

Description

The MP1682C is a fully integrated, high-frequency, synchronous, rectified, step-down switch-mode converter with internal power MOSFETs. The MP1682C offers a very compact solution that achieves up to 2A of continuous output current (I_OUT), with excellent load and line regulation across a wide input voltage (V_IN) range. The MP1682C is well-suited to support tight output voltage (V_OUT) ripple applications.

Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.

The MP1682C requires a minimal number of readily available, standard external components, and is available in a space-saving SOT563 package.

Features & Benefits

Forced Continuous Conduction Mode (FCCM)
1.1MHz Fixed Switching Frequency (f_SW)
Wide 4.5V to 16V Operating Input Voltage (V_IN) Range
2A Output Current (I_OUT)
105mΩ/60mΩ Low (R_DS(ON)) Internal Power MOSFETs
Output Voltage (V_OUT) Adjustable from 0.6V
±1% Feedback (FB) Accuracy at Room Temperature
±1.5% FB Accuracy at Full Temperature
Excellent Load Transient Performance
Pre-Biased Start-Up
Enable (EN) Power Sequencing
Over-Current Protection (OCP) with Hiccup Mode
V_IN Over-Voltage Protection (OVP)
Thermal Shutdown
Available in an SOT563 (1.6mmx1.6mm) Package
Optimized Performance with MPS Inductor MPL-AL Series

Active Part Numbers:

MP1682CGTF-Z MP1682CGTF-P

Meaning of P & Z

Recommended Inductors

Low-Profile Molded Inductor 2.2µH

Low-Profile Molded Inductor 3.3µH

Inductor Selector Tool

*Based on Nominal Values
