MPQ8785

MPQ8785

16V, 40A, Scalable, Digital, Synchronous Step-Down Converter with PMBus

Description

The MPQ8785 is a fully integrated, PMBus-compliant, high-frequency, synchronous buck converter. The device offers a very compact solution that achieves up to 40A of output current (I_OUT) per phase, with excellent load and line regulation across a wide input voltage (V_IN) supply range. The MPQ8785 operates at a high efficiency across the wide I_OUT load range. The PMBus interface provides converter configurations and monitors key parameters.

The MPQ8785 adopts MPS’s proprietary, digital, multi-phase constant-on-time (MCOT) control, which provides fast transient response and facilitates loop stabilization. The MCOT scheme also allows multiple MPQ8785 devices to be connected in parallel, with excellent current sharing and phase interleaving for high-current applications.

Fully integrated protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP).

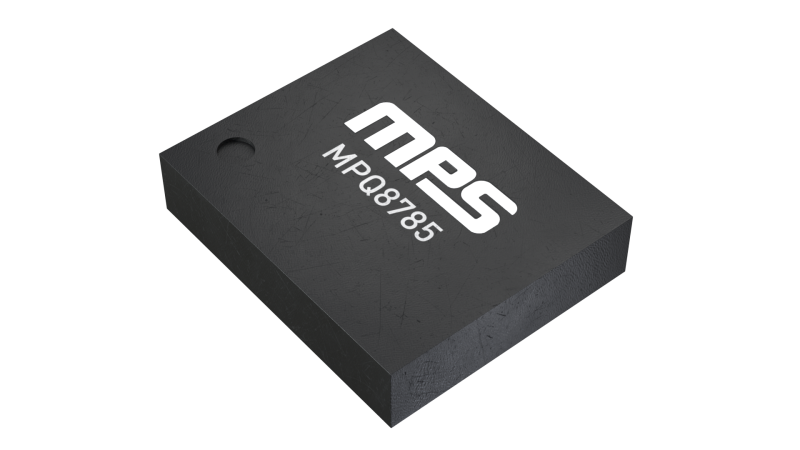

The MPQ8785 requires a minimal number of readily available, standard external components, and it is available in a TLGA-37 (5mmx6mm) package.

Features & Benefits

PMBus 1.3 Compliant
Scalable Multi-Phase Operation
3.1V to 16V Input Voltage (V_IN) with External 3.3V VCC Bias
40A of Continuous Output Current (I_OUT)
Phase Redundancy to Ensure Uninterrupted Operation
Lossless and Accurate On-Die Current Sensing with Auto-Matching
Accurate Current Balance Control in Multi-Phase Operation
Quiet Switcher^TM Technology (QST) to Mitigate Switching Noise
Fault Recording (BBOX) to Ease Failure Analysis
Automatic PMBus Address Assignment to Provide Auxiliary Phase Data Reading
Adaptive Multi-Phase Constant-On-Time (MCOT) Control for Ultra-Fast Transient Response
Stable with Zero-ESR Output Capacitors
0.5% Reference Voltage (V_REF) across 0°C to 85°C Junction Temperature (T_J) Range
1% V_REF across -40°C to +125°C T_J Range
Output Voltage (V_OUT) Adjustable from 0.35V to 0.9 x V_IN, Up to 5.5V Max
V_OUT, I_OUT, V_IN, and T_J Reporting
Built-In Multiple-Time Programmable (MTP) Memory to Store Custom Configurations with Cyclic Redundancy Check (CRC)/Check Sum
Configurable via the PMBus:
- V_OUT
- I_OUT Limit
- Soft-Start Time
- Selectable 300kHz Up to 2MHz Switching Frequency (f_SW)
- Over-Current Protection (OCP), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), and Over-Temperature Protection (OTP) with Options for Hiccup or Latch-Off Mode
- Ramp Compensation

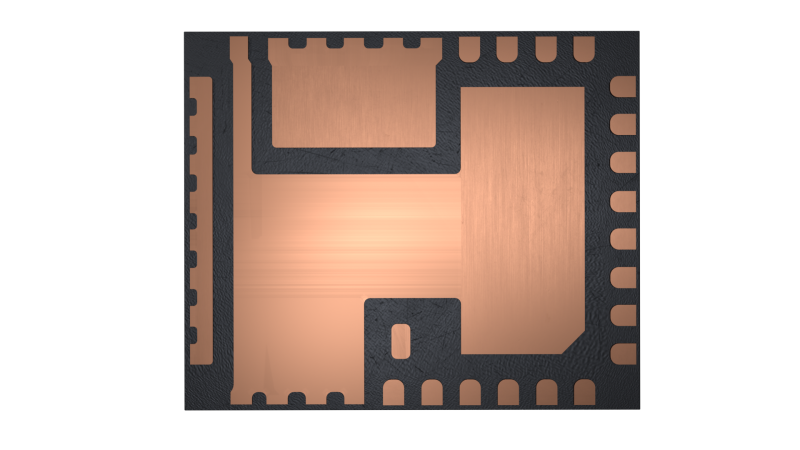

Available in a TLGA-37 (5mmx6mm) Package

Active Part Numbers:

MPQ8785GMJT-xxxx-Z MPQ8785GMJT-xxxx-P MPQ8785GMJT-0000-Z MPQ8785GMJT-0000-P
