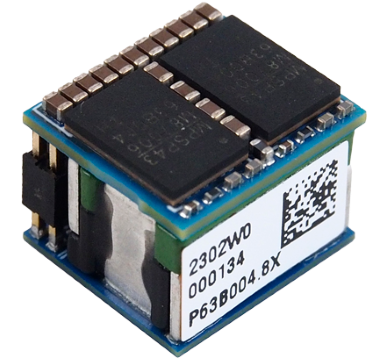

Intelli-Module

Scalable Solutions Beyond 2kW
Advanced Fault and Sense Reporting for Current and Temperature
Independent Phase Outputs for Added Flexibility

MPS Intelli-Modules meet the high-powered computing demand for larger and larger current capacities in a small, compact package. Intelli-Modules contain all components needed for a power delivery stage: inductors, capacitors, and MPS’s newest Intelli-PhaseTM IC’s with Quiet SwitcherTM Technology (QST). Intelli-Modules are highly scalable and, when paired with a multi-phase controller, can support power systems requiring anywhere from hundreds to thousands of Watts. Coupling this scalability with advanced fault reporting and sensing capabilities in each module ensures that this solution can help meet not just current system model needs as well as those of generations to come.

Show Columns
Status
Module Assembly
Vin (min) (V)
Vin (max) (V)
Vout (min) (V)
Vout (max) (V)
Iout (max) (A)
fsw (min) (kHz)
fsw (max) (kHz)
Dimension WxL (mm)
Dimension (H) (mm)
Mounting Type
Special Features
Grade
MPSafe
MPL
Product URL
RESET TABLE
Module Assembly
Vin (min) (V)
Vin (max) (V)
Vout (min) (V)
Vout (max) (V)
Iout (max) (A)
fsw (min) (kHz)
fsw (max) (kHz)
Dimension WxL (mm)
Dimension (H) (mm)
Mounting Type
Special Features
Grade
Open Frame
8x8
9x10
9x9.9
4
5
8
10
Surface Mount
Current Sense
OCP
Over-Current Protection (OCP)
Over-Temperature Protection (OTP)
Parallel Operation
Quiet SwitcherTM Technology (QST)
Temperature Sense
Industrial
Is MPSafe Has MPL Product URL

MPC22166-A-130
PRE-RELEASE
130A, Two-Phase Intelli-ModuleTM with Quiet SwitcherTM Technology
 Open Frame 4 16 0.5 2 130 600 1500 9x10 4 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Quiet SwitcherTM Technology (QST), Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22166-a-130.html
MPC22166-B-130
PRE-RELEASE
130A, Dual-Phase Intelli-ModuleTM with Double-Side Cooling Capability
 Open Frame 4 16 0.4 2 130 500 1500 9x9.9 4 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Quiet SwitcherTM Technology (QST), Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22166-b-130.html
MPC22165-A-170
PRE-RELEASE

9mmx9.9mmx10mm, 170A, 2-Phase, High Power Density Intelli-ModuleTM with Qualified Higher Current Density

 Open Frame 4 16 0.5 2 170 600 1500 9x9.9 10 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Quiet SwitcherTM Technology (QST), Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22165-a-170.html
MPC22164-A-130
PRE-RELEASE

9mmx9.9mmx10mm, 130A, 2-Phase, High Power Density Module

 Open Frame 4 16 0.5 2 130 600 1500 9x9.9 10 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Quiet SwitcherTM Technology (QST), Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22164-a-130.html
MPC24380-260
PRE-RELEASE
260A, Four-Phase Intelli-ModuleTM with Quiet SwitcherTM Technology
 Open Frame 3 8 0.5 2 260 500 1500 9x10 5 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Quiet SwitcherTM Technology (QST), Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc24380-260.html
MPC22158-130
PRE-RELEASE

130A, 8mmx8mmx4mm, Dual-Phase Intelli-ModuleTM with Quiet SwitcherTM Technology

 Open Frame 3 16 0.5 2 130 600 1500 8x8 4 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Quiet SwitcherTM Technology (QST), Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22158-130.html
MPC22157-130
NEW
130A, 8mm, Dual-Phase Intelli-ModuleTM with Double-Side Cooling Capability
 Open Frame 4 16 0.5 2 130 500 1500 9x9.9 8 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22157-130.html
MPC22161-120
ACTIVE

120A, Dual-Phase Intelli-ModuleTM with Quiet SwitcherTM Technology

 Open Frame 4 16 0.5 2 120 600 1500 9x10 8 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22161-120.html
MPC22163-130
ACTIVE

130A, Dual-Phase Intelli-ModuleTM with Quiet SwitcherTM Technology

 Open Frame 4 16 0.5 2 130 600 1500 9x10 8 Surface Mount
Current Sense, OCP, Over-Temperature Protection (OTP), Parallel Operation, Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22163-130.html
MPC22164-130
ACTIVE

130A, 2-Phase Intelli-PhaseTM Power Module with Quiet SwitcherTM Technology

 Open Frame 4 16 0.5 2 130 400 1500 9x10 10 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/multi-phase-controllers-intelli-phase/mpc22164-130.html
MPC22167-130
ACTIVE

16V, 130A, Dual-Phase Intelli-ModuleTM with Quiet SwitcherTM Technology

 Open Frame 4 16 0.5 2 130 500 1500 9x10 8 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/multi-phase-controllers-intelli-phase/mpc22167-130.html
MPC22165-170
ACTIVE

170A, 2-Phase Intelli-PhaseTM Power Module with Quiet SwitcherTM Technology

 Open Frame 4 16 0.5 2 170 500 1500 9x10 10 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/multi-phase-controllers-intelli-phase/mpc22165-170.html
MPC22168-170
ACTIVE
16V, 170A, Dual-Phase Intelli-ModuleTM with Quiet SwitcherTM Technology
 Open Frame 4 16 0.5 2 170 500 1500 9x9.9 8 Surface Mount
Current Sense, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Parallel Operation, Temperature Sense
Industrial 1 0 https://www.monolithicpower.com/en/products/power-management/data-center/mpc22168-170.html
No more parts left for display.
