MPC22154-170

MPC22154-170

170A, Dual-Phase Intelli-Module^TM with Quiet Switcher^TM Technology

Parameters Description

Module Assembly
Open Frame
Vin (min) (V)
4
Vin (max) (V)
16
Vout (min) (V)
0.4
Vout (max) (V)
2
Iout (max) (A)
170
fsw (min) (kHz)
400
fsw (max) (kHz)
2000
Dimension WxL (mm)
8x8
Dimension (H) (Max) (mm)
4.8
Mounting Type
Surface Mount
Grade
Industrial

The MPC22154-170 is a dual-phase, non-isolated, high-efficiency step-down power module with Quiet Switcher^TM Technology (QST^TM). It integrates driver MOSFETs (DrMOS) and inductors to provide high efficiency and a small footprint, which is ideal for AI and server applications.

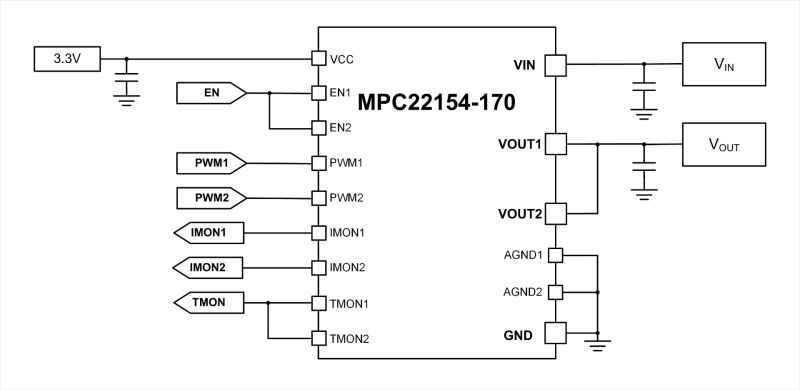

The device has two outputs, which can support both dual-rail operation and single-rail operation. It can achieve up to 170A (85A/phase) of output current (I_OUT) across a wide input voltage (V_IN) range.

The MPC22154-170 offers many features to simplify system design. It works with tri-state pulse-width modulation (PWM) signal controllers, has Accu-Sense^TMcurrent-sensing to monitor the inductor current (I_L), and has temperature-sensing to report the junction temperature (T_J).

The MPC22154-170 is available in an LGA-45 (8mmx8mmx4.8mm) package.
