- MP5096
MP5096
5.5V, 1mΩ Low-RDS(ON) E-Fuse with Inrush Current Control and Current Monitoring
Session textval
Session Titefor popup
- Vin (min) (V)2.7
- Vin (max) (V)5.5
- Iout (max) (A)30
- Ilimit (A)Prog.
- Iq (typ) (µA)840
- Channels1
- EnableActive High
- Fault FlagCurrent Limit, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Short-Circuit Protection (SCP)
- Rds(on) (mΩ)1
- Slew Rate ControlYes
- GradeCatalog
- Package (mm)UTQFN-22 (2x4)

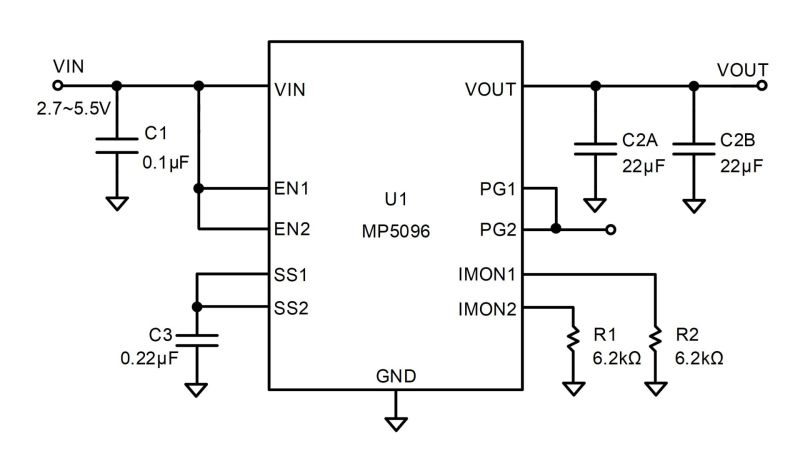

The MP5096 is an e-fuse capable of supporting up to 30A of continuous current, covering a 2.7V to 5.5V input voltage (VIN) range. With inrush current control, current monitoring, and 1mΩ on resistance (RDS(ON)) in a tiny package, the device comprises a highly efficient, space-saving solution.
It is equipped with a very accurate current monitoring and a configurable current limit. Soft start (SS) functionality helps avoid inrush current during circuit start-up. The MP5096 also provides a configurable SS time (tSS), output discharge function, over-current protection (OCP), and thermal shutdown.
The MP5096 is available in a UTQFN-22 (2mmx4mm) package.
-
Show more
Show less
Features & Benefits
- 2.7V to 5.5V Input Voltage (VIN) Range
- Integrated 1mΩ Low On Resistance (RDS(ON)) MOSFET
- 10µA Shutdown Current (ISD)
- Configurable Current Limit Up to 30A
- Open-Drain Power Good (PG) Indicator
- Adjustable Start-Up Slew Rate through Soft Start (SS)
- Output Discharge Function
- 500ns Short-Circuit Protection (SCP)
- Over-Temperature Protection (OTP)
- Available in a UTQFN-22 (2mmx4mm) Package
Active Part Numbers:
MP5096GKBU-Z MP5096GKBU-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
