MP87390

MP87390

12V, 90A, 4mmx6mm, Intelli-Phase^TM DrMOS Solution with Quiet Switcher^TM Technology

Parameters Description

Vin (min) (V)
3
Vin (max) (V)
8
Iout (max) (A)
90
Isw Limit (typ) (A)
130
Iin (Standby) (mA)
2.4
fsw (min) (kHz)
100
fsw (max) (kHz)
2000
trise (ns)
15
tfall (ns)
15
PWM Logic (V)
3.3
Package (mm)
TLGA-34 (4x6)
Grade
Catalog

The MP87390 is a monolithic, half-bridge Intelli-Phase^TM solution with built-in internal power MOSFETs and gate drivers. It achieves up to 90A of continuous output current (I_OUT) across a wide input supply voltage (V_IN) range.

Quiet Switcher^TM Technology (QST^TM) utilizes a proprietary circuit design, achievable only in monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages to less than 3V above V_IN, improving device reliability, lowering EMI emissions, and reducing sensitivity to PCB layout.

The MP87390 offers many features to simplify system design. It works with controllers with a tri-state pulse-width modulation (PWM) signal. It also comes with Accu-Sense^TM current-sensing to monitor the inductor current (I_L), and temperature-sensing to report the junction temperature (T_J).

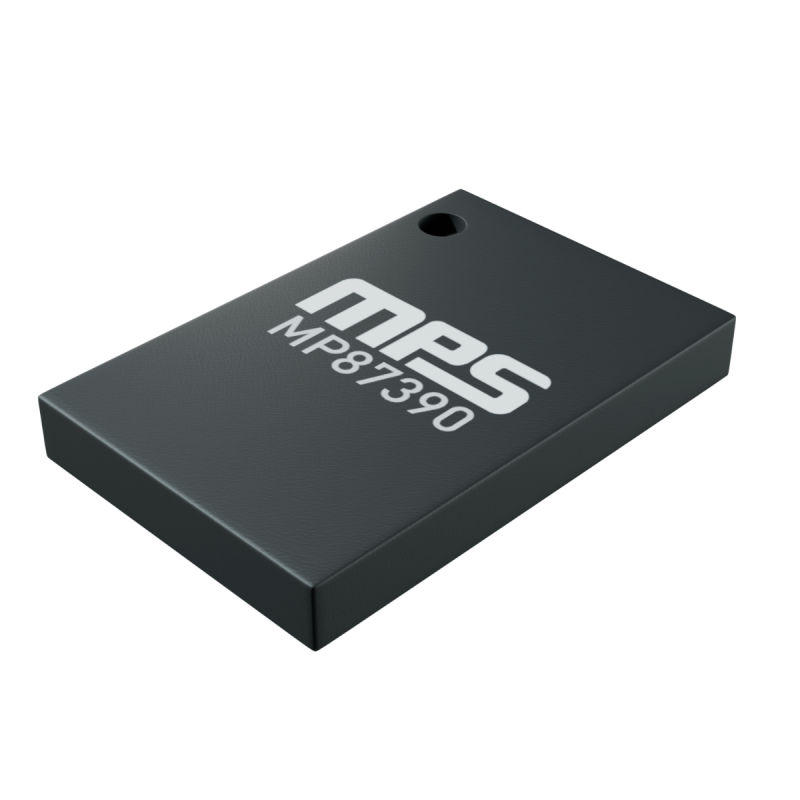

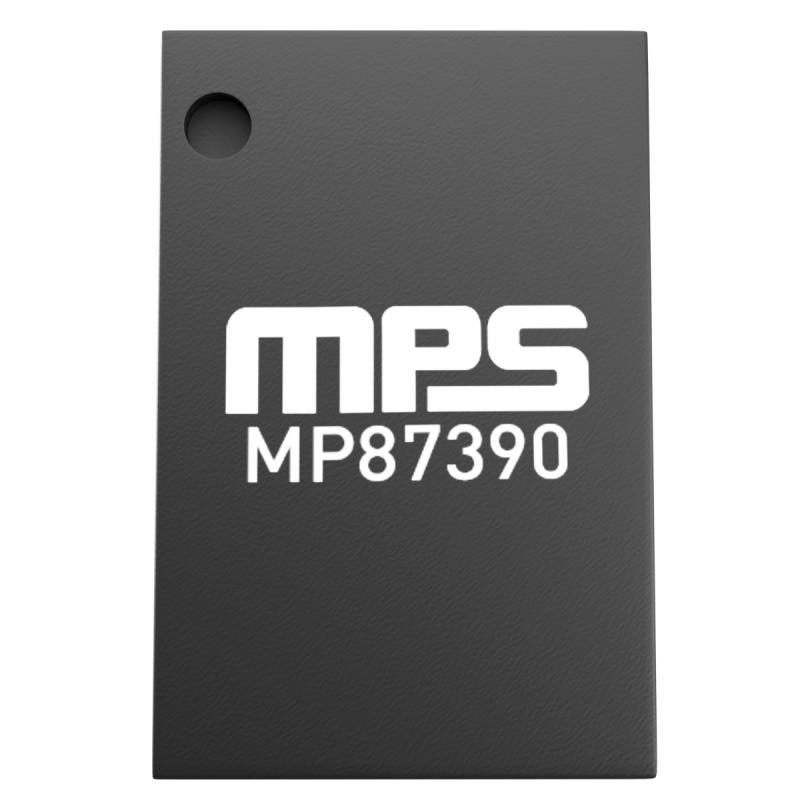

The MP87390 is ideal for server applications where efficiency and small size are at a premium. It is available in a TLGA-34 (4mmx6mm) package.

Features & Benefits

Quiet Switcher^TM Technology (QST^TM) Limits Peak Switching Voltages with Minimal Dependency on PCB Layout
Wide 3V to 8V Operating Input Voltage (V_IN) Range
90A Output Current (I_OUT)
Operation Up to 2MHz
Accu-Sense^TM Current Sense
Temperature Sense
Accepts Tri-State Pulse-Width Modulation (PWM) Signal
Current-Limit Protection
Over-Temperature Protection (OTP)
Fault Reporting

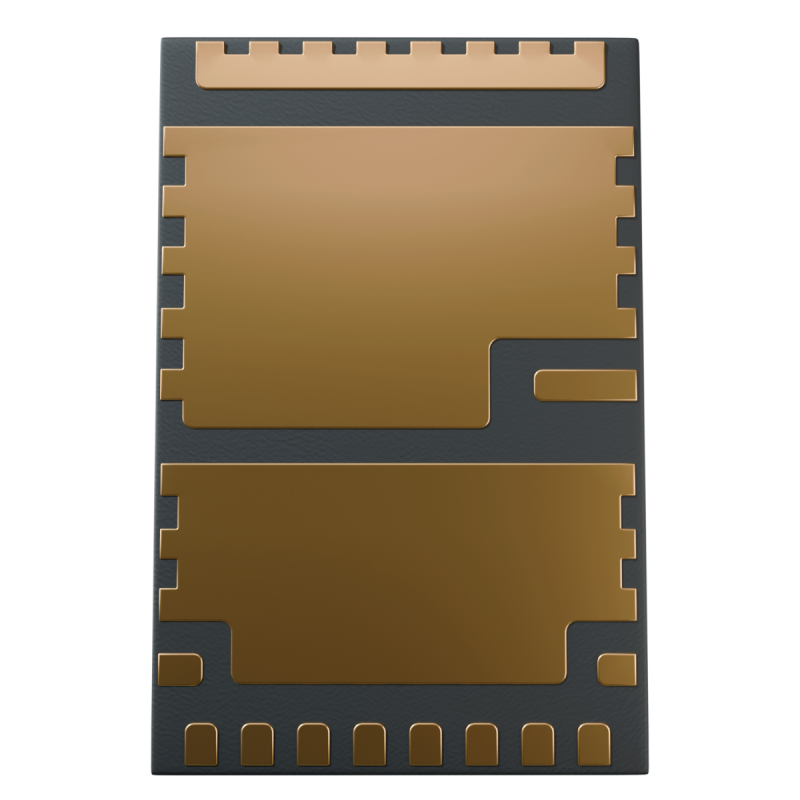

Available in a TLGA-34 (4mmx6mm) Package
