- MP87597
MP87597
Session textval
Session Titefor popup
Description

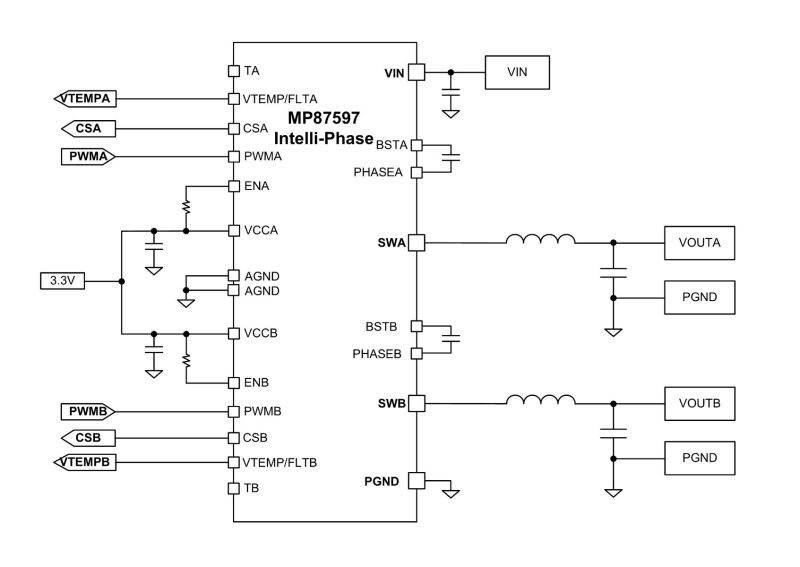

The MP87597 is a dual monolithic half-bridge with built-in, internal power MOSFETs and gate drivers. It achieves up to 100A of continuous output current (IOUT) per output across a wide input voltage (VIN) range.
The integration of drivers and MOSFETs results in high efficiency due to optimal dead time (DT) and reduced parasitic inductance. The device can operate from 100kHz to 3MHz, and offers many features to simplify system design. It works with controllers with a tri-state pulse-width modulation (PWM) signal.
The MP87597 is ideal for computing applications, where efficiency and small size are at a premium. It is available in an LGA-40 (6mmx6mm) package.
-
Show more
Show less
Features & Benefits
- 3V to 8V Operating Input Voltage (VIN)
- Dual-Phase Operation, 100A Output Current (IOUT) per Phase
- Accu-SenseTM Current Sense
- Individual Junction Temperature (TJ) Sense and Reporting
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Positive Current Limit with Hysteresis
- Negative Current Limit
- Fast Catastrophic Fault Response
- Quiet SwitcherTM Technology (QSTTM) Limits Peak Switching Voltage with Minimal Dependency on PCB Layout
- Available in Exposed Top Package for Low Junction-to-Case-Top Thermal Resistance
- Available in a Common-Footprint LGA-40 (6mmx6mm) Package
Active Part Numbers:
MP87597GMKD-Z MP87597GMKD-P MP87597GMKH-Z MP87597GMKH-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
