MP87563

MP87563

Intelli-Phase^TMSolution in a TLGA-33 (5.25mmx5mm) Package and LGA-33 (5.25mmx5mm) Package

Parameters Description

Vin (min) (V)
3
Vin (max) (V)
16
Iout (max) (A)
60
Isw Limit (typ) (A)
120
Iin (Standby) (mA)
0.001
fsw (min) (kHz)
100
fsw (max) (kHz)
3000
trise (ns)
25
tfall (ns)
20
PWM Logic (V)
3.3
Package (mm)
LGA-33 (5.25x5), TLGA-33 (5.25x5)
Grade
Catalog

The MP87563 is a dual, monolithic, half-bridge Intelli-Phase^TM solution with built-in, internal power MOSFETs and gate drivers. It achieves up to 60A of continuous output current (I_OUT) per output across a wide input voltage (V_IN) range.

The integration of drivers and MOSFETs enable high efficiency due to optimal dead time (DT) and reduction of parasitic inductance. The MP87563 can operate from a 100kHz to 3MHz switching frequency (f_SW).

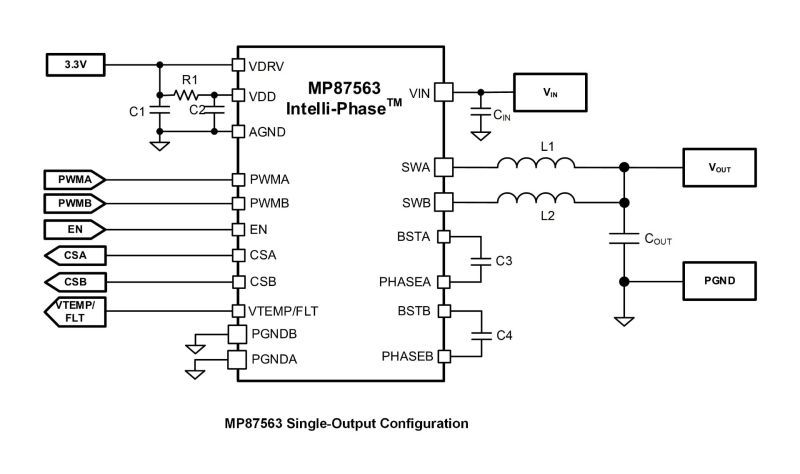

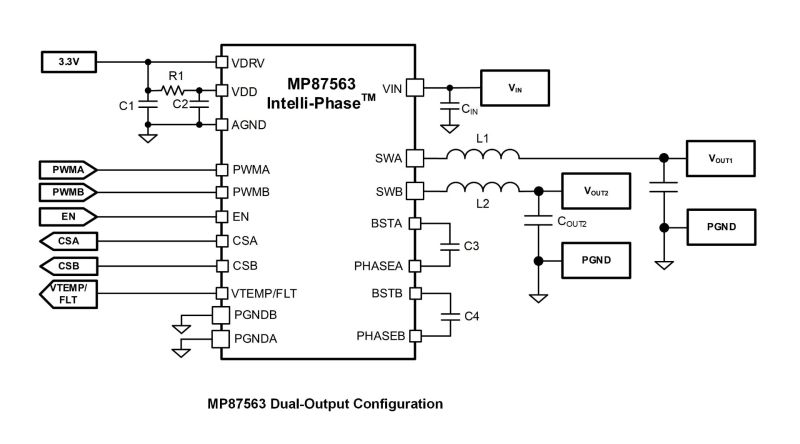

The MP87563 offers many features to simplify system design. This device works with controllers with a tri-state pulse-width modulation (PWM) signal.

The MP87563 is ideal for computing applications, where efficiency and small size are at a premium. It is available in a common-footprint TLGA-33 (5.25mmx5mm) package and LGA-33 (5.25mmx5mm) package.

Features & Benefits

Wide 3V to 16V Operating Input Voltage (V_IN) Range
Up to 60A of Continuous Output Current (I_OUT) at Each Output:
- Up to 80A for 10ms On Pulse
- Up to 120A for 10μs On Pulse
Accu-Sense^TM Current Sense
Positive Current Limit with Hysteresis
Junction Temperature (T_J) Sense
Bidirectional Pulse-Width Modulation (PWM) for Fault Diagnostics
5V Pulse-Width Modulation (PWM) Input Capability
Fast Catastrophic Fault Response

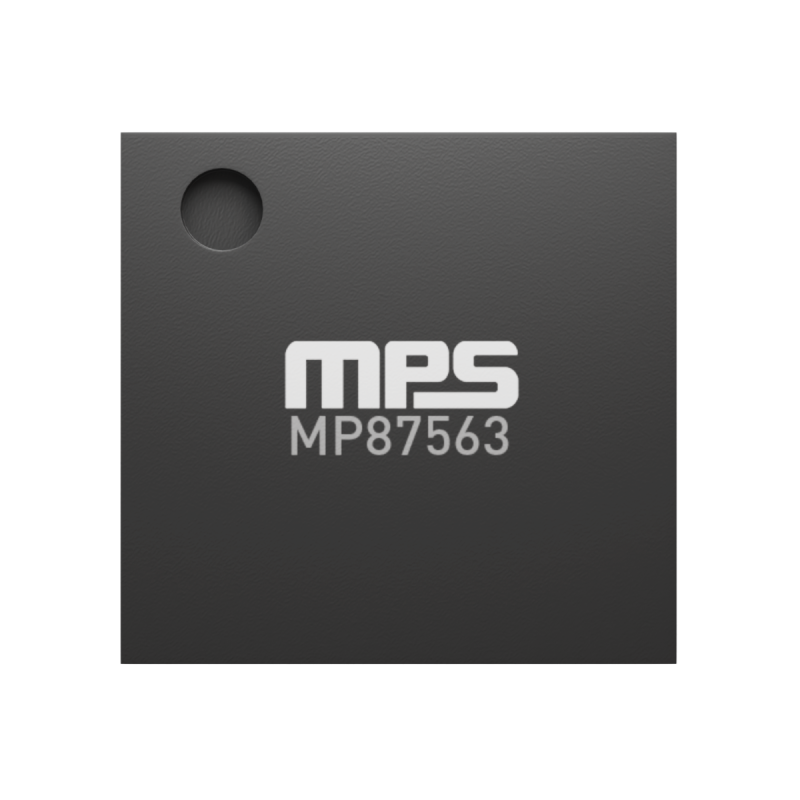

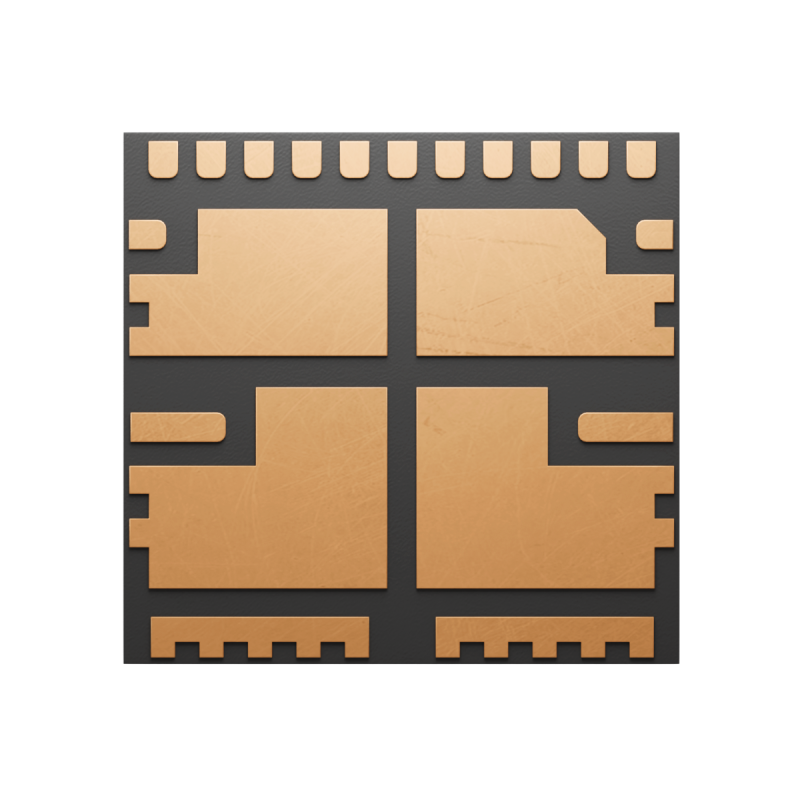

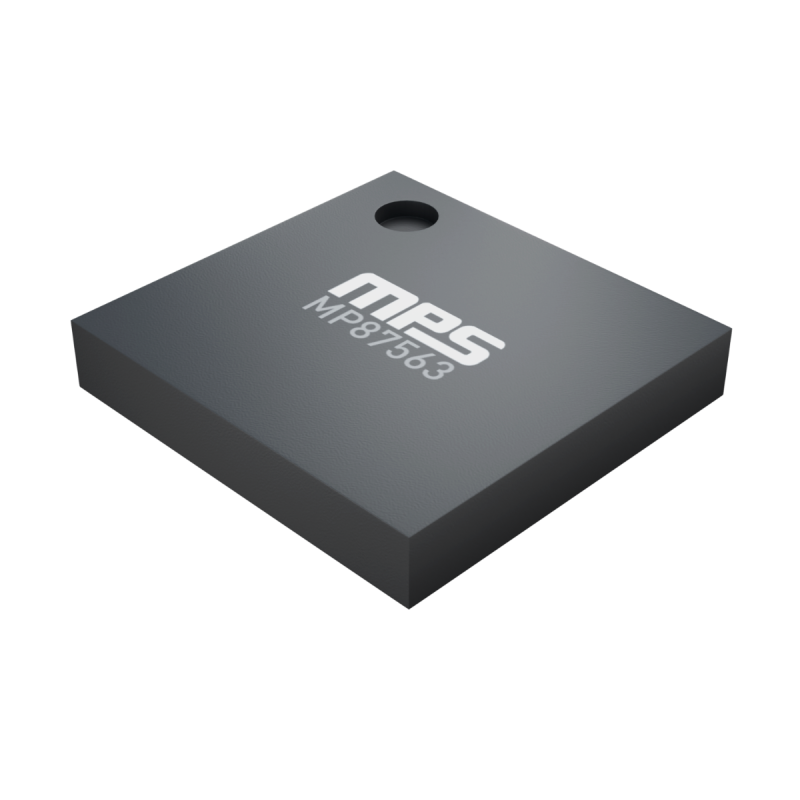

Available in a Common-Footprint TLGA-33 (5.25mmx5mm) Package and LGA-33 (5.25mmx5mm) Package

Active Part Numbers:

MP87563GMETH-Z MP87563GMETH-P MP87563GMED-Z MP87563GMED-P

Meaning of P & Z

Related Products

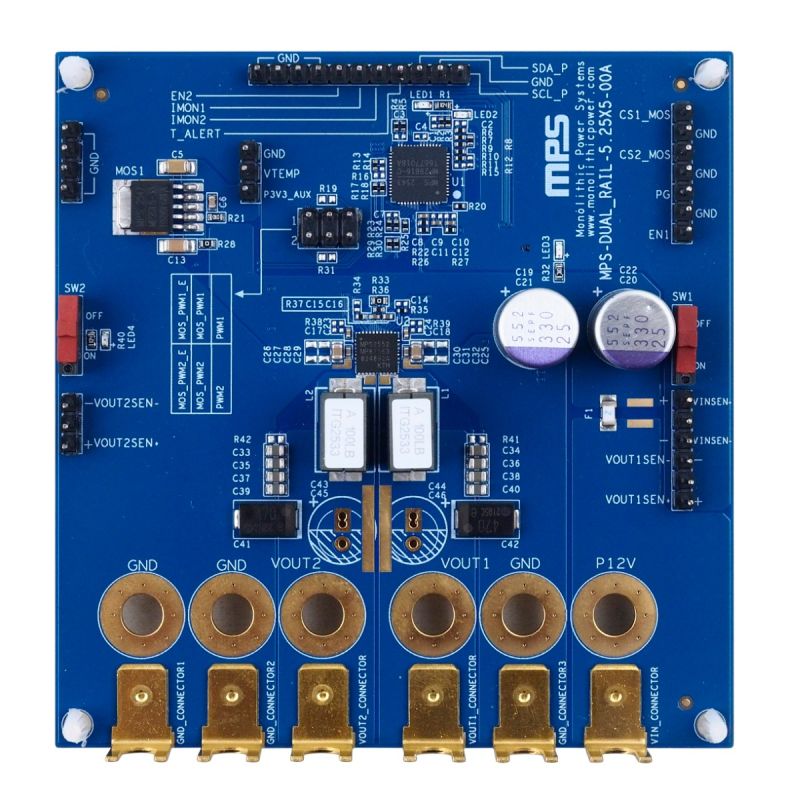

EVL87563-2PHASE-01A 120A, Intelli-Phase^TM DrMOS with PMBus in TLGA-33 (5.25mmx5mm) Package Evaluation Board

The EVL87563-2PHASE-01A is an evaluation board designed to demonstrate the capabilities of the MP87563, a monolithic half-bridge Intelli-Phase^TM solution with built-in internal power MOSFETs and gate drivers. The evaluation board can deliver up to 120A of continuous load current across a wide input supply voltage (V_IN) range.

Quiet Switcher^TM Technology (QST^TM) utilizes a proprietary circuit design, achievable only in monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages, improves device reliability, lowers EMI emissions, and reduces sensitivity to PCB layout.

The MP87563 offers many features to simplify system design. The MP87563 works with controllers such as the MP2888A with a tri-state pulse-width modulation (PWM) signal. It comes with accurate current-sensing to monitor the inductor current (I_L), and temperature-sensing to report the junction temperature (T_J).

The MP87563 is ideal for server applications where efficiency and small size are at a premium. The MP87563 is available in a TLGA-33 (5.25mmx5mm) package.
