MP87290

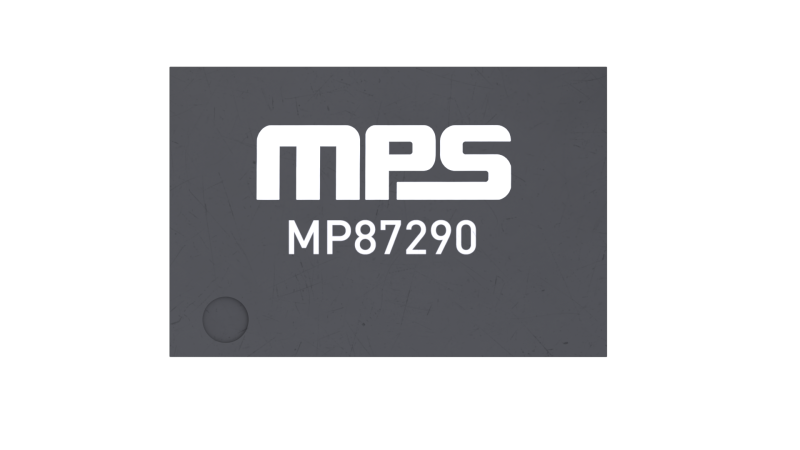

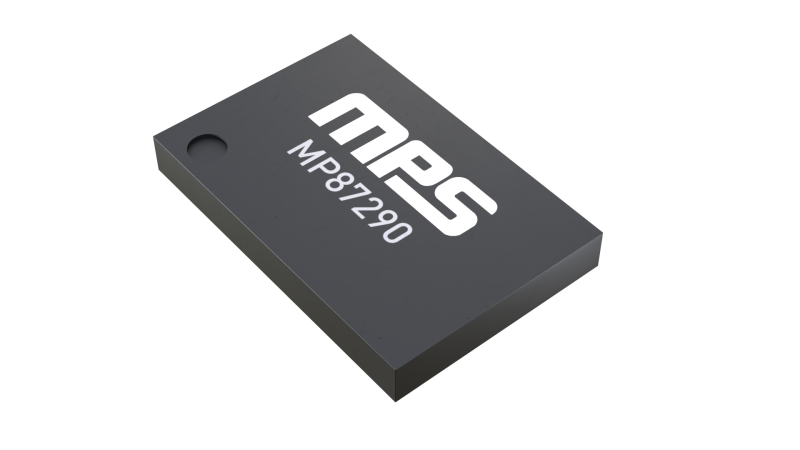

90A, Intelli-PhaseTM DrMOS Solution with Quiet SwitcherTM Technology (QSTTM) in TLGA-34 (4mmx6mm) Package
Session textval
Session Titefor popup
Description

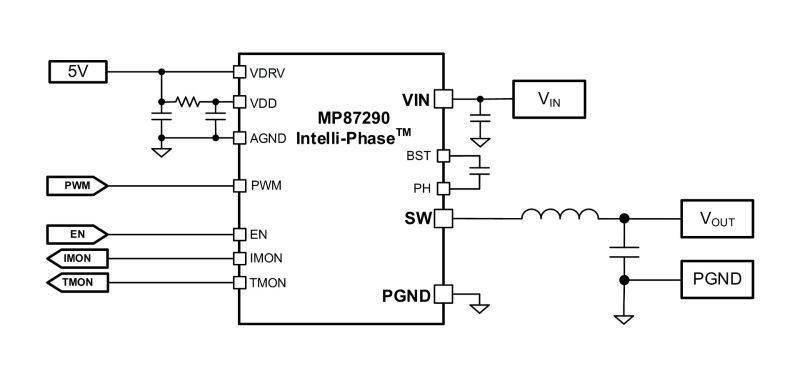

The MP87290 is a monolithic half-bridge Intelli-PhaseTM solution with built-in internal power MOSFETs and gate drivers. It achieves up to 90A of continuous output current (IOUT) across a wide input supply voltage (VIN) range, and it can operate from 100kHz to 1.5MHz. Quiet SwitcherTM Technology (QSTTM) utilizes a proprietary circuit design, achievable only in monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages, improves device reliability, lowers EMI, and reduces sensitivity to PCB layout.
The MP87290 offers many features to simplify system design. This device works with controllers with tri-state pulse-width modulation (PWM) signals. It also integrates accurate current-sensing to monitor the inductor current (IL) and temperature-sensing to report the junction temperature (TJ).
The MP87290 is ideal for server applications where efficiency and small size are at a premium. It is available in a TLGA-34 (4mmx6mm) package.
-
Show more
Show less
Features & Benefits
- Quiet SwitcherTM Technology (QSTTM) Limits Peak Switching Voltages with Minimal Dependency on PCB Layout
- Wide 3V to 16V Operating Input Voltage (VIN) Range
- 90A Output Current (IOUT)
- 5V VDD/VDRV Operation
- Accu-SenseTM Current Sense
- Temperature Sense
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Current Limit Protection
- Over-Temperature Protection (OTP)
- Fault Reporting

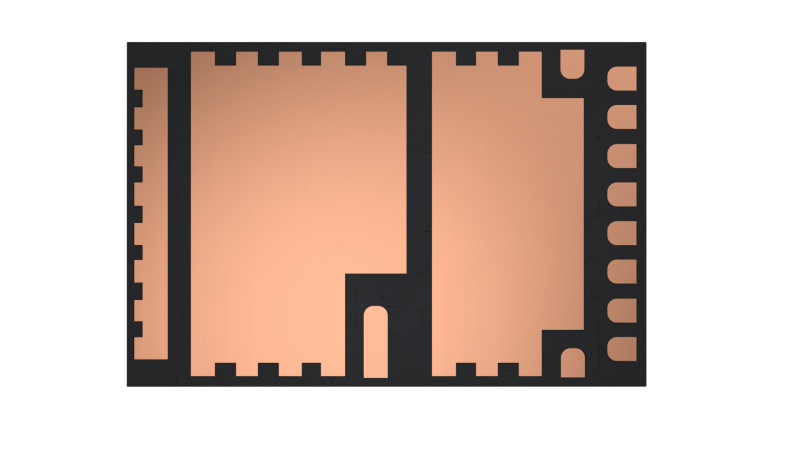

- Available in a TLGA-34 (4mmx6mm) Package
Active Part Numbers:
MP87290GMWTH-Z MP87290GMWTH-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
