MP87577
Session textval
Session Titefor popup
Description

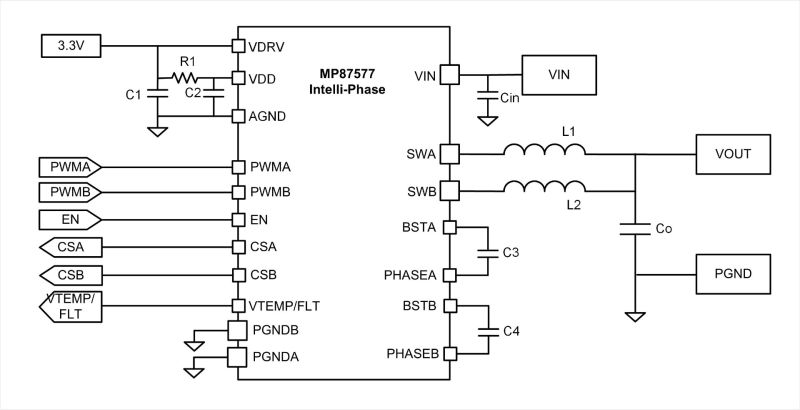

The MP87577 is a dual monolithic half-bridge Intelli-PhaseTM solution with built-in, internal power MOSFETs and gate drivers. It achieves up to 70A of continuous output current (IOUT) per output across a wide input voltage (VIN) range.
The integration of drivers and MOSFETs results in high efficiency due to optimal dead time (DT) and reduction of parasitic inductance. The device can operate from 100kHz to 3MHz.
It offers many features to simplify system design. This device works with controllers with a tri-state pulse-width modulation (PWM) signal.
The MP87577 is ideal for computing applications, where efficiency and small size are at a premium. It is available in a common-footprint LGA-33 (5.25mmx5mm) package.
-
Show more
Show less
Features & Benefits
- Wide 3V to 8V Operating Input Voltage (VIN) Range
- Up to 70A of Continuous Output Current (IOUT) at Each Output:
- Up to 100A for 400μs On Pulse
- Up to 120A for 10μs On Pulse
- Accu-SenseTM Current Sense (CS)
- Positive Current Limit with Hysteresis
- Junction Temperature (TJ) Sense
- Bidirectional Pulse-Width Modulation (PWM) for Fault Diagnostics
- 5V PWM Input Capability
- Fast Catastrophic Fault Response
- Available in a Common-Footprint LGA-33 (5.25mmx5mm) Package
Active Part Numbers:
MP87577GMEH-Z MP87577GMEH-P MP87577GMED-Z MP87577GMED-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
