MP87297

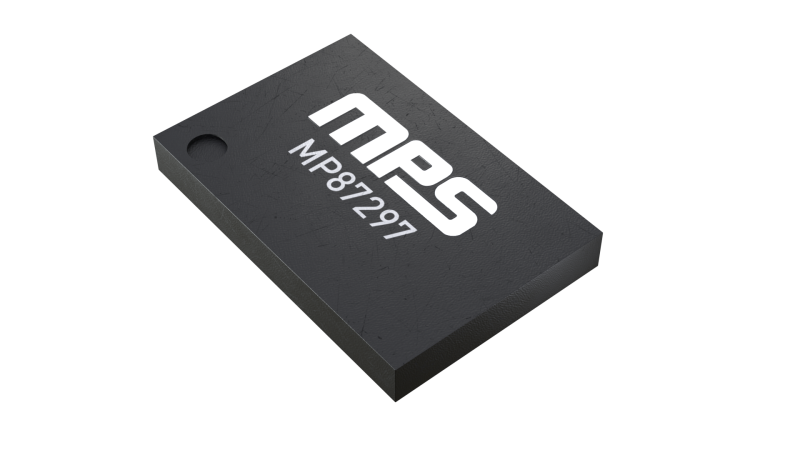

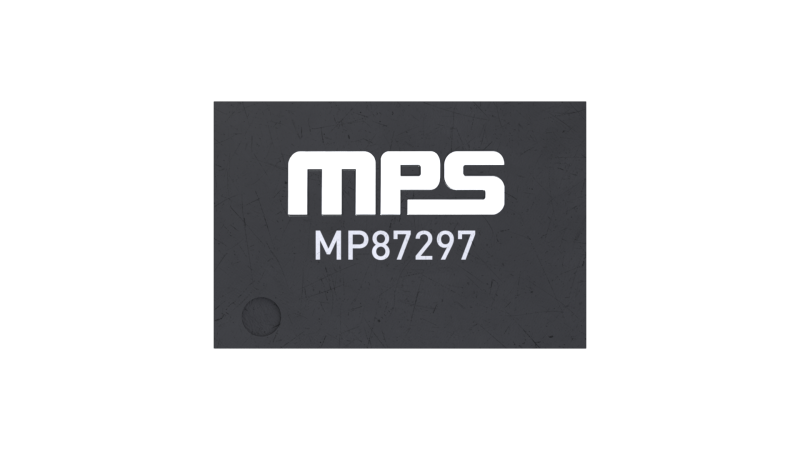

100A, Intelli-PhaseTM DrMOS Solution with Quiet SwitcherTM Technology in a TLGA-34 (4mmx6mm) Package
Session textval
Session Titefor popup
Description
The MP87297 is a monolithic half-bridge with built-in, internal power MOSFETs and gate drivers. It delivers up to 100A of continuous output current (IOUT) over a wide input supply voltage (VIN) range and operates from 100kHz to 1.5MHz.
Quiet SwitcherTM technology utilizes a proprietary circuit design, achievable only in monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages, improves device reliability, lowers EMI, and reduces sensitivity to the PCB layout.
The MP87297 offers many features to simplify system design. This device works with tri-state pulse-width modulation (PWM) signal controllers and features Accu-SenseTM current sensing and temperature sensing to monitor the inductor current (IL) and report the junction temperature (TJ), respectively.
The MP87297 is ideal for server applications where efficiency and small size are at a premium. It is available in a TLGA-34 (4mmx6mm) package.
-
Show more
Show less
Features & Benefits
- Quiet SwitcherTM Technology (QST) Limits Peak Switching Voltages with Minimal Dependency on PCB Layout
- Wide 3V to 16V Operating Input Voltage (VIN) Range
- 100A Output Current (IOUT)
- 5V VDD and VDRV Operation
- Accu-SenseTM Current Sense (CS)
- Temperature Sense
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Current-Limit Protection
- Over-Temperature Protection (OTP)
- Fault Reporting
- Available in a TLGA-34 (4mmx6mm) Package
Active Part Numbers:
MP87297GMWTH-Z MP87297GMWTH-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
