MP86962

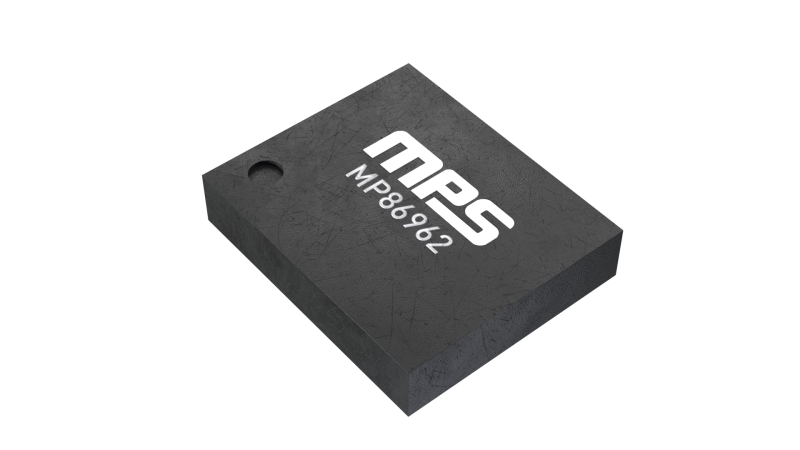

80A, Radiation-Tolerant Intelli-PhaseTM DrMOS Solution in a TLGA-41 (5mmx6mm) Package
Session textval
Session Titefor popup
Description

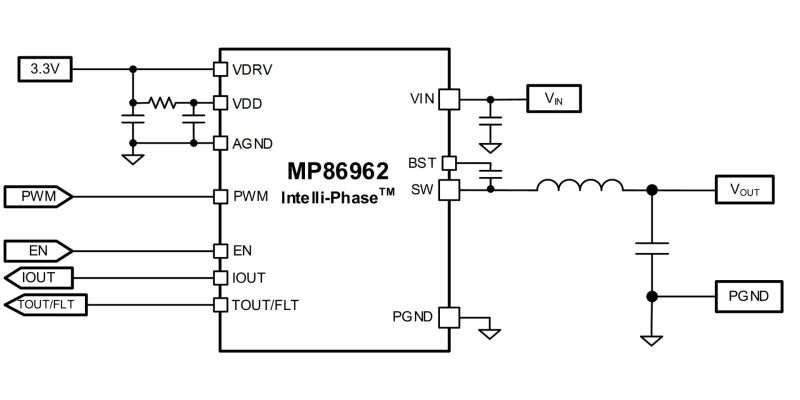

The MP86962 is a monolithic half-bridge driver with built-in internal power MOSFETs and gate drivers. The MP86962 can achieve up to 80A of continuous output current (IOUT) across a wide input voltage (VIN) range.
The MP86962 uses a monolithic IC to drive up to 80A of current per phase. The integration of drivers and MOSFETs results in high efficiency due to an optimal dead time (DT) and reduction of parasitic inductance. The MP86962 can operate from 100kHz to 3MHz.
The MP86962 offers many features to simplify system design. The device includes controllers with a tri-state pulse-width modulation (PWM) signal and supports accurate current sense to monitor the inductor current (IL) and temperature sense, which report the junction temperature (TJ).
The MP86962 is ideal for server applications, where efficiency and small size are at a premium. It is available in a TLGA-41 (5mmx6mm) package.
-
Show more
Show less
Features & Benefits
- Wide 3V to 16V Operating Input Voltage (VIN) Range
- 80A Output Current (IOUT)
- Current Sense with Accu-SenseTM
- Temperature Sense
- Accepts Tri-State Pulse-Width Modulation (PWM) Signal
- Current-Limit Protection
- Over-Temperature Protection (OTP)
- Fault Reporting

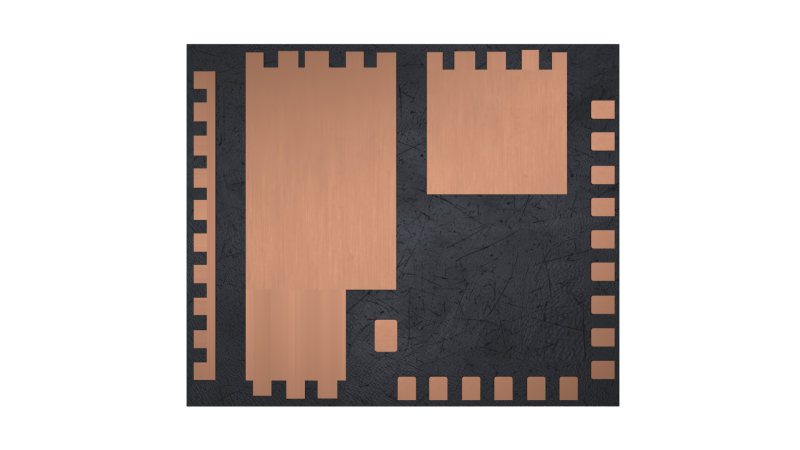

- Available in a TLGA-41 (5mmx6mm) Package
Active Part Numbers:
MP86962GMJT-Z MP86962GMJT-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
