MP87220

MP87220

20A, Intelli-Phase^TM,DrMOS Solution with Quiet Switcher^TM Technology In TLGA-30 (4mmx5mm) Package

Description

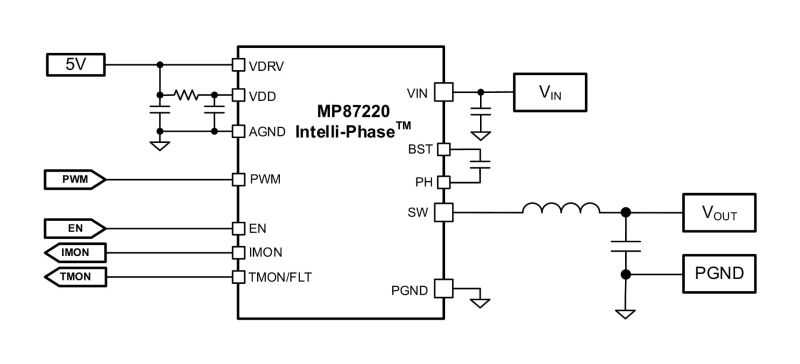

The MP87220 is a monolithic half-bridge with built-in internal power MOSFETs and gate drivers. It achieves up to 20A of continuous output current (I_OUT) across a wide input supply range, and it can operate from 100kHz to 1.5MHz.

Quiet Switcher^TM technology (QST^TM) utilizes a proprietary circuit design, achievable only in a monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages, improves device reliability, lowers EMI, and reduces sensitivity to the PCB layout.

The MP87220 offers many features to simplify system design. This device works with controllers with tri-state pulse-width modulation (PWM) signals. It also integrates an accurate current sense to monitor the inductor current (I_L) and a temperature sense to report the junction temperature (T_J).

The MP87220 is ideal for server applications where efficiency and small size are at a premium. It is available in a TLGA-30 (4mmx5mm) package.

Features & Benefits

Quiet Switcher^TM Technology (QST^TM) Limits Peak Switching Voltages with Minimal Dependency on PCB Layout
Wide 3V to 16V Operating Input Voltage (V_IN) Range
20A Output Current (I_OUT)
5V V_DD/V_DRV Operation
Accu-Sense^TM Current Sense (CS)
Temperature Sense
Accepts Tri-State Pulse-Width Modulation (PWM) Signals
Current-Limit Protection
Over-Temperature Protection (OTP)
Fault Reporting

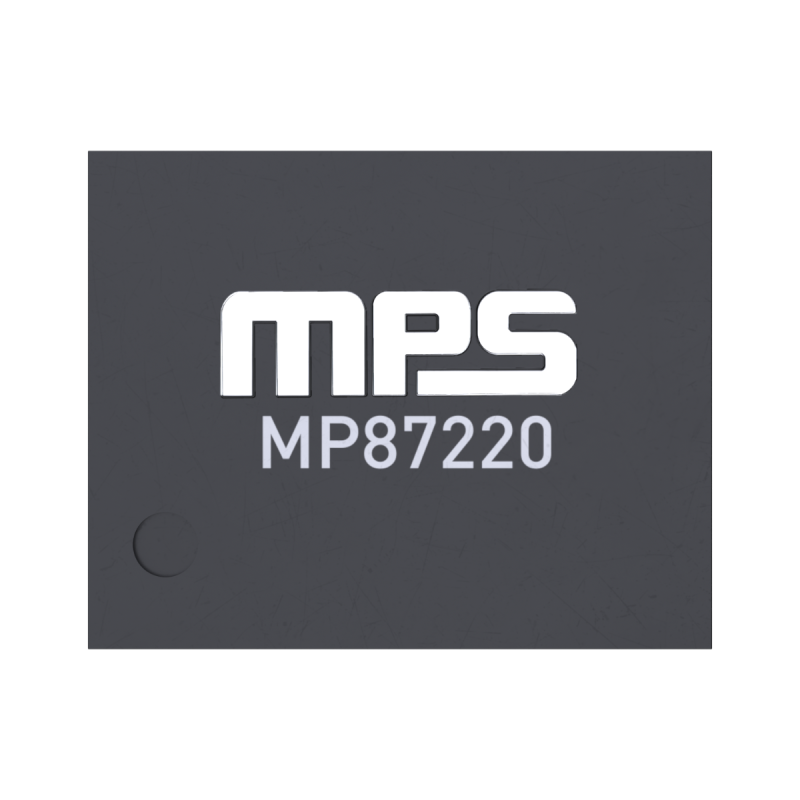

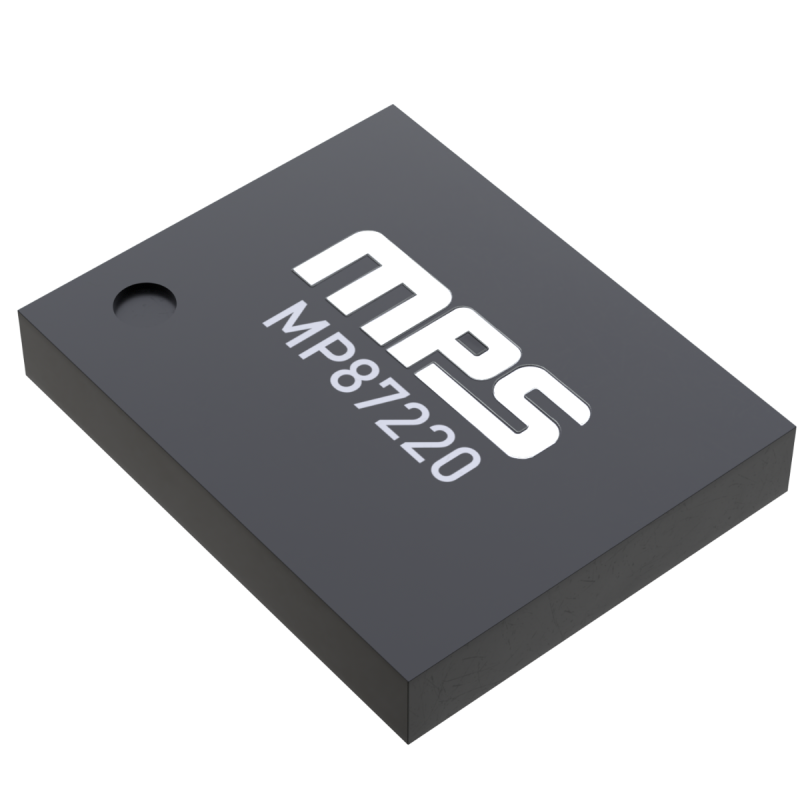

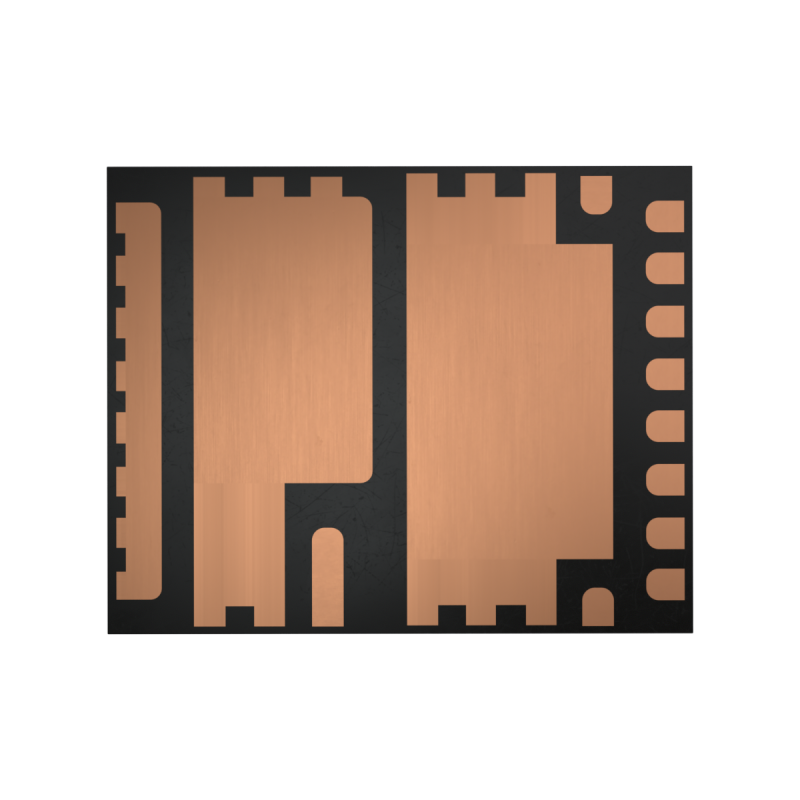

Available in a TLGA-30 (4mmx5mm) Package

Active Part Numbers:

MP87220GLVTH-Z MP87220GLVTH-P

Meaning of P & Z

Related Products

Optimized Performance with MPS Inductor

EVL87220-2PHASE-00A 40A, Intelli-Phase^TM, 4mmx5mm DrMOS with PMBus Evaluation Board

MPL

Optimized Performance with MPS Inductor

The EVL87220-2PHASE-00A is an evaluation board designed to demonstrate the capabilities of the MP87220, a monolithic half-bridge Intelli Phase^TM solution with built-in internal power MOSFETs and gate drivers. The evaluation board can deliver up to 40A of continuous load current across a wide input supply voltage (V_IN) range.

Quiet Switcher^TM Technology (QST^TM) utilizes a proprietary circuit design, achievable only in monolithic architecture, to suppress voltage ringing. This technology limits peak switching voltages, improving device reliability, lowering EMI emissions, and reducing sensitivity to PCB layout.

The MP87220 offers many features to simplify system design. It works with controllers such as the MP2985B with a tri-state pulse-width modulation (PWM) signal. It comes with accurate current-sensing to monitor the inductor current (I_L), and temperature-sensing to report the junction temperature (T_J).

The MP87220 is ideal for server applications where efficiency and small size are at a premium. The MP87220 is available in a TLGA-30 (4mmx5mm) package.
