MP87971
Intelli-PhaseTM Solution with Integrated HS-FET, LS-FET, and Drivers in a TLGA (5mmx5mm) Package
Session textval
Session Titefor popup

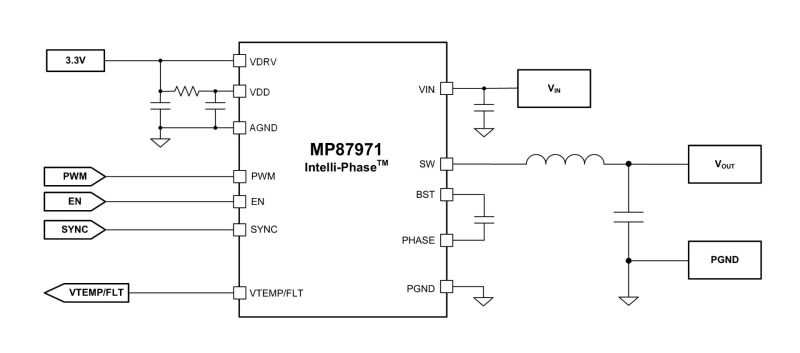

Description
The MP87971 is a monolithic, half-bridge Intelli-PhaseTM solution with built-in internal power MOSFETs and gate drivers. It can achieve up to 70A of continuous output current (IOUT) across a wide input supply voltage (VIN) range.
The integrated MOSFETS and gate drivers achieve high efficiency due to optimal dead time (DT) and reduced parasitic inductance. This device can operate from a 100kHz to 3MHz switching frequency (fSW).
It offers many features to simplify system design, such as the ability to work with controllers via a tri-state pulse-width modulation (PWM) signal. It also supports temperature-sensing to report the junction temperature (TJ).
The MP87971 is ideal for desktop and motherboard (DT and MB, respectively) applications, where efficiency and small size are at a premium. It is available in a common footprint TLGA-33 (5mmx5mm) package.
-
Show more
Show less
Features & Benefits
- Wide 3V to 16V Operating Input Voltage (VIN) Range
- 70A Output Current (IOUT)
- Junction Temperature (TJ) Sense
- Bidirectional Pulse-Width Modulation (PWM) for Fault Diagnostics
- 5V PWM Input Capability
- Fast Catastrophic Fault Response:
- Cycle-by-Cycle Over-Current (OC) Limiting
- Over-Temperature Warning (OTW) at 150°C with 15°C Hysteresis
- Over-Temperature Protection (OTP) Latch-Off at 165°C
- Available in a Common Footprint TLGA-33 (5mmx5mm) Package
Active Part Numbers:
MP87971GLUTH-Z MP87971GLUTH-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
