MPC16253-X-54-2500

MPC16253-X-54-2500

2.5kW, Regulated 12V Output, Quarter-Brick, Digital DC/DC Power Module

Parameters Description

Module Assembly
Open Frame
Vin (min) (V)
40
Vin (max) (V)
60
Vout (min) (V)
12
Vout (max) (V)
12.5
Iout (max) (A)
205
Output Power (W)
2500
Communication interface
PMBus/I2C
Dimension WxL (mm)
58.4x36.8
Dimension (H) (mm)
14.8
Mounting Type
Through Hole
Grade
Industrial

The MPC16253-X-54-2500 is a high-efficiency, non-isolated power module with a quarter-brick form factor, operating from a 40V to 60V DC primary bus to a regulated 12.2V output voltage (V_OUT), and can deliver up to 2500W of continuous power at a typical 54V input voltage (V_IN).

The built-in multiple-time programmable (MTP) memory can store and restore device configurations. The fault status, V_IN, V_OUT, output current (I_OUT), and temperature can be easily monitored via the PMBus/I²C interface.

The MPC16253-X-54-2500 is available in a through-hole (58.4mmx36.8mmx14.8mm) package.

Features & Benefits

Supports Up to 2500W of Continuous Power
Built-In Multiple-Time Programmable (MTP) Memory to Store Custom Configurations
Input Voltage (V_IN), Output Voltage (V_OUT), Output Current (I_OUT), and Temperature Monitoring via the PMBus/I²C Interface
V_IN Over-Voltage Protection (OVP) and Under-Voltage Protection (UVP), V_OUT OVP/UVP, Over-Current Protection (OCP), and Over-Temperature Protection (OTP)

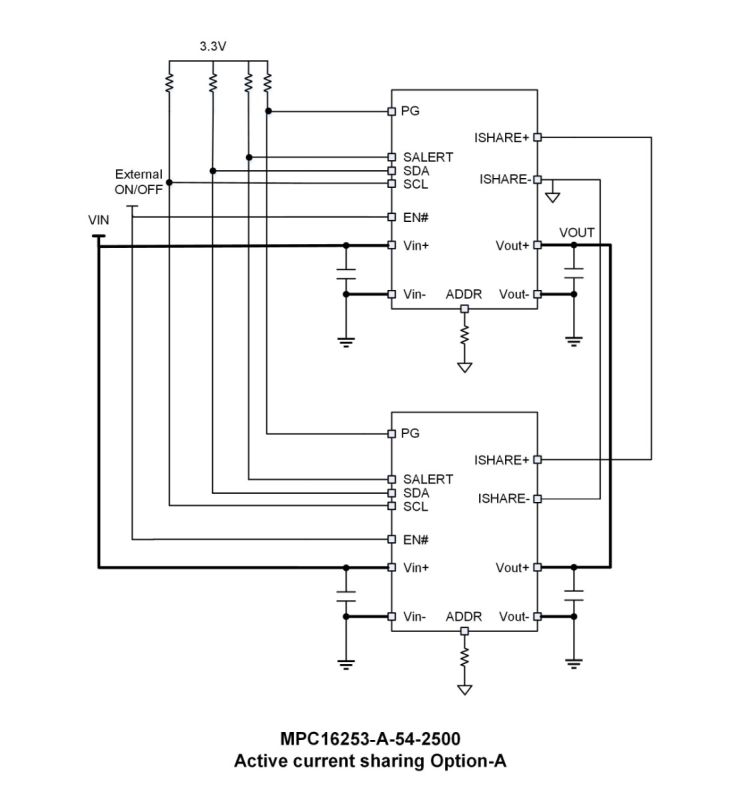

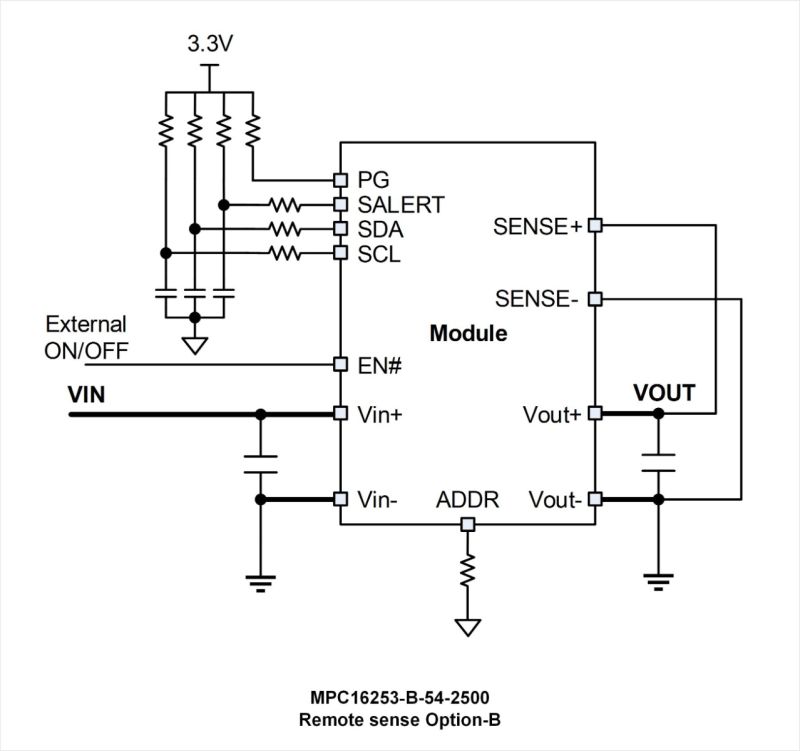

Parallel Load-Line Current-Sharing or Differential Remote Sense

PMBus Communication

Supports Wave and Reflow Soldering

Available in a Quarter-Brick, Through-Hole (58.4mmx36.8mmx14.8mm) Package
