MP2921

MP2921

Dual-Loop, Digital, Multi-Phase Controller for VR14.Cloud with PMBus Interface

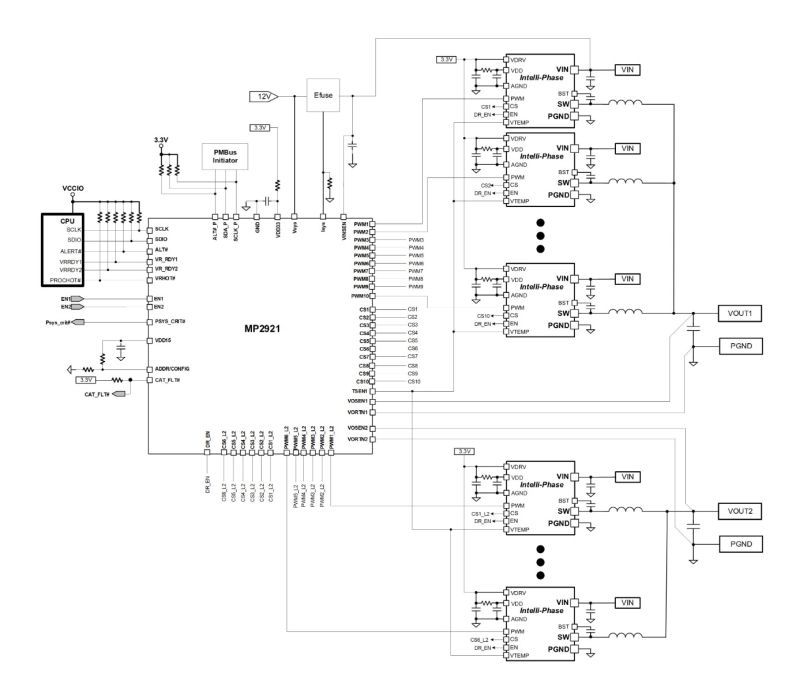

Description

The MP2921 is a dual-loop, digital, multi-phase controller that provides power for the CPU core of VR14.Cloud and prior protocols. It works with MPS’s and multiple vendors’ DrMOS products to provide a multi-phase voltage regulator (VR) total solution with minimal external components. It can be configured up to 16-phase operation for rail 1 and 8-phase operation for rail 2.

The MP2921 provides an on-chip non-volatile memory (NVM) to store and restore device configurations. Device configurations and fault parameters are easy to configure and monitor via the PMBus/I²C interface. The device can monitor and report the output current (I_OUT) through the CS output from DrMOS products.

It is based on unique, digital, multi-phase nonlinear control to provide fast transient response to the load transient with minimal output capacitors. With only one power loop control method for both steady state and load transient response, the power loop compensation is very easy to configure.

The MP2921 is available in a QFN-56 (7mmx7mm) package.

Features & Benefits

16-Phase Dual-Loop Digital Controller
Compliant with VR14.Cloud and Prior Protocols
PMBus/I²C Compliant
Selectable High-Speed SVID or PVID Bus
Up to 3MHz Switching Frequency (f_SW)
Multi-Configuration via Pin Strap
Built-In Non-Volatile Memory (NVM) to Store Custom Configurations
Minimal External Components
Reduced Overshoot with Nonlinear Control
Flexible Phase Assignment for Dual Rails
Automatic Phase-Shedding (APS) to Improve Overall Efficiency
Phase-to-Phase Active Current Balancing with Configurable Offsets for Thermal Balancing
Digital Load-Line Regulation
DrMOS Fault Detection, and Fault Auto-Records to the NVM
Supports Overclocking Mode
Line-Float Detection
Standby Mode to Save Power
Input Voltage (V_IN), Output Voltage (V_OUT), Current, Power, and Regulator Temperature Monitoring
Under-Voltage Lockout (UVLO), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), Over-Current Protection (OCP), Under-Current Protection (UCP), Over-Temperature Protection (OTP), and Reverse Voltage Protection (RVP) with No Action, Latch-Off, Retry, or Hiccup Mode Options
Enhanced Register Map Read/Write Protection for Improved Security
Available in an RoHS-Compliant, Thin QFN-56 (7mmx7mm) Package
