MP2882A

MP2882A

Dual-Loop, Digital, 16-Phase Controller with PMBus Interface for AVSBus

Description

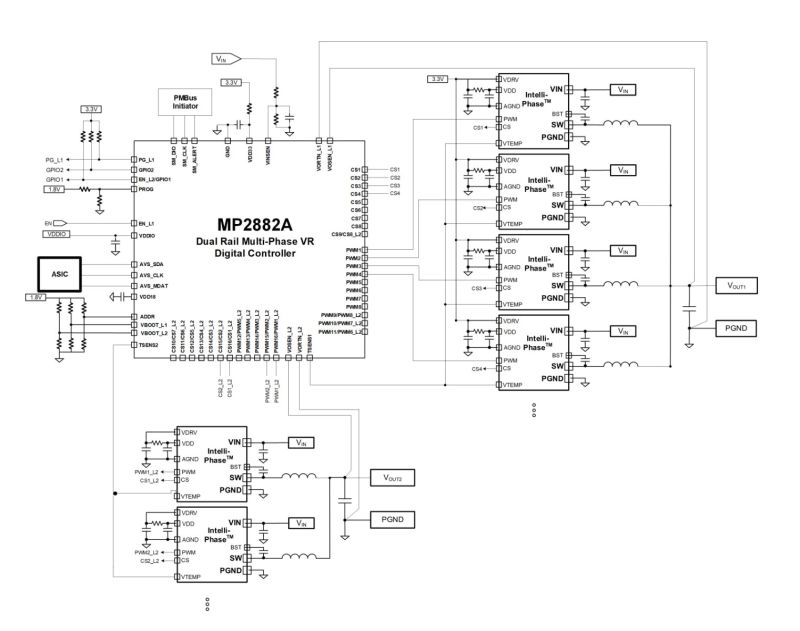

The MP2882A is a dual-loop, digital, multi-phase controller that provides power for the memory and system-on-chip (SoC). The device can work with MPS’s Intelli-Phase^TM products to complete the multi-phase voltage regulator (VR) solution with a minimal number of external components. The MP2882A can be configured for up to 16-phase operation on rail 1 and up to 8-phase operation on rail 2.

The MP2882A provides an on-chip non-volatile memory (NVM) to store and restore device configurations. Device configurations and fault parameters can be easily configured or monitored via the PMBus/I²C interface. The device can monitor and report the output current (I_OUT) through the current-sensing (CS) output from Intelli-Phase^TM devices.

The MP2882A is based on unique, digital, multiphase control to provide fast transient response to the load transient with a minimal number of output capacitors. With only one power loop control method for both steady state and load transients, power loop compensation is simple to configure.

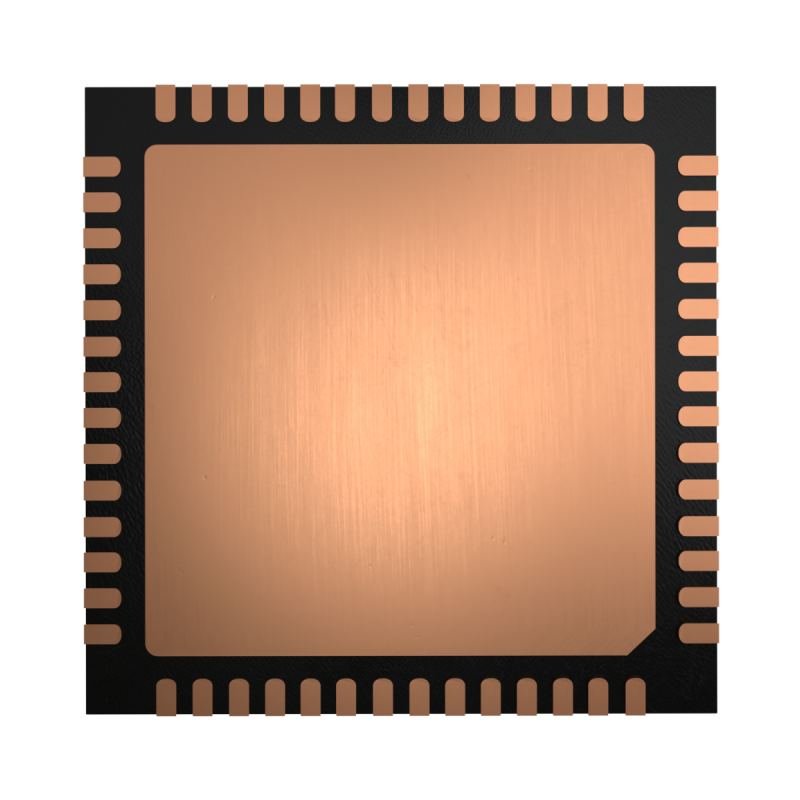

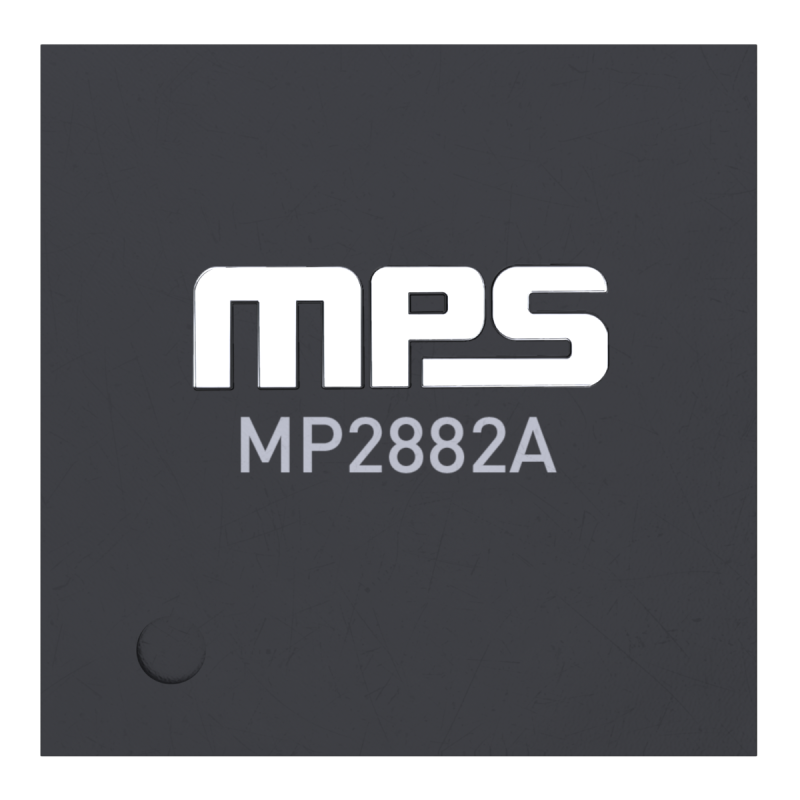

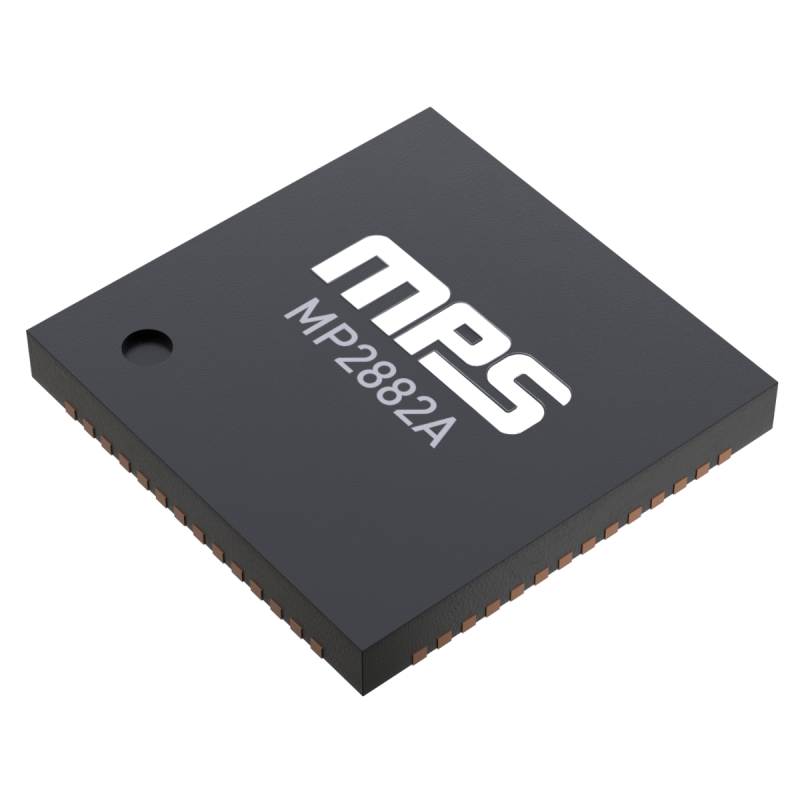

The MP2882A is available in a TQFN-56 (7mmx7mm) package.

Features & Benefits

Multi-Phase, Dual-Output Digital Controller
PMBus/I²C Compatible (1MHz Bus Speed)
AVSBus Compatible
N + 2 Phase Redundancy Function
Pin-Configurable PMBus Address
Built-In Non-Voltage Memory (NVM) to Store Custom Configurations
Can Support 16 Rails with Register Setting
200kHz to 3MHz Switching Frequency (f_SW)
Automatic Loop Compensation
Fewer External Components than a Conventional Analog Controller
Best Transient Performance with Nonlinear Digital Control
Flexible Phase Assignment for Dual Rails
Automatic Phase-Shedding (APS) to Improve Overall Efficiency
Phase-to-Phase Active Current Balancing with Configurable Offsets for Thermal Balance
Input Voltage (V_IN), Output Voltage (V_OUT), Current, and Power Monitoring
Regulator Temperature Monitoring
V_IN Under-Voltage Lockout (UVLO), V_OUT Over-Voltage Protection (OVP) and Under-Voltage Protection (UVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with Options for No Action, Latch-Off, or Hiccup Mode
Fast Over-Current Warning Response
Intelli-Phase^TM Fault Diagnostics
Black-Box Recording in NVM
Digital Load-Line Regulation
Available in a TQFN-56 (7mmx7mm) Package

Active Part Numbers:

MP2882AGQNT-xxxx-Z MP2882AGQNT-xxxx-P MP2882AGQNT-0000-Z MP2882AGQNT-0000-P
