MPC22166-A-130
Session textval
Session Titefor popup
Description
The MPC22166-A-130 is a 2-phase, non-isolated, high-efficiency step-down power module. It integrates the driver MOSFETs (DrMOS) and inductors to provide high efficiency and a small footprint, which is ideal for server applications.

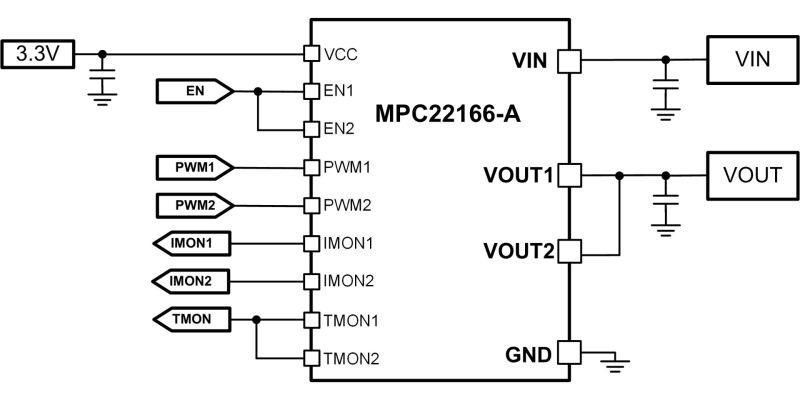

The MPC22166-A-130 has two independent outputs, which can be used separately or in parallel. It can achieve up to 130A (65A/phase) of output current (IOUTx) across a wide input voltage (VIN) range.
The MPC22166-A-130 offers many features to simplify system design. The device works with tri-state pulse-width modulation (PWM) signal controllers, has Accu-SenseTM current sensing to monitor the inductor current (IL), and has temperature sensing to report the junction temperature (TJ).
The MPC22166-A-130 is available in an LGA-72 (9mmx9.9mmx4mm) package.
-
Show more
Show less
Features & Benefits
- Quiet SwitcherTM Technology (QST) Limits Peak Switching Voltages
- Wide 4V to 16V Input Voltage (VIN) Range
- Up to 130A of Continuous Output Current (IOUTx)
- Accu-SenseTM Current Sense (CS)
- Temperature Sense
- Compatible with Tri-State Pulse-Width Modulation (PWM) Signals
- Over-Current Protection (OCP)
- Over-Temperature Protection (OTP)
- Fault Reporting
- Typical Weight: 1.5g
- Available in an LGA-72 (9mmx9.9mmx4mm) Package
Active Part Numbers:
MPC22166-A-130-T
