MPC22163-130
You have a basic account.A myMPS+ account is needed.
Upgrade to myMPS+Session textval
Session Titefor popup

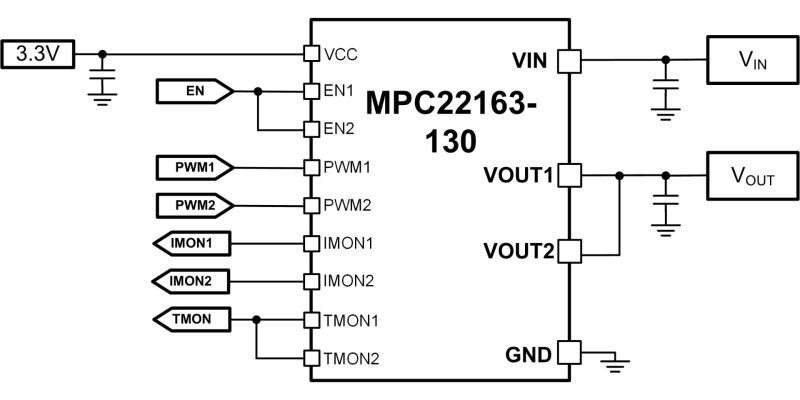

Description
The MPC22163-130 is a two-phase, non-isolated, high-efficiency step-down power block. The device has two independent outputs that can be used separately or in parallel. It can achieve up to 130A (65A/phase) of output current (IOUT) across a wide input voltage (VIN) range.
The integrated MOSFET drivers and inductors provide high efficiency and a small footprint, which makes the MPC22163-130 well-suited for server applications.
The MPC22163-130 offers many features to simplify system design, and can work with controllers with a tri-state PWM signal. It also includes an accurate current sense for inductor current (IL) monitoring, as well as a temperature sense for junction temperature (TJ) reporting.
The MPC22163-130 is available in an LGA-72 (9mmx10mmx7.65mm) package.
-
Show more
Show less
Features & Benefits
- Quiet Switcher™ Technology (QST) for Limiting Peak Switching Voltages
- 4V to 16V Input Voltage (VIN) Range
- Supports Up to 130A of Continuous Output Current (IOUT)
- Current Sense: Accu-Sense™
- Temperature Sense
- Accepts Tri-State PWM Signals
- Current-Limit Protection
- Over-Temperature Protection (OTP)
- Fault Reporting
- Available in an LGA-72 (9mmx10mmx7.65mm) Package

Active Part Numbers:
MPC22163-130-T
