MP1682

MP1682

16V, 2A, 1.1MHz, High-Efficiency, Synchronous Step-Down Converter in an SOT563 Package

Parameters Description

Vin (min) (V)
4.5
Vin (max) (V)
16
Iout (max) (A)
2
Iq (typ) (mA)
0.11
Vfb (V)
0.6
fsw (max) (kHz)
1100
Control Mode
COT Control
Package (mm)
SOT563 (1.6x1.6)
Grade
Catalog

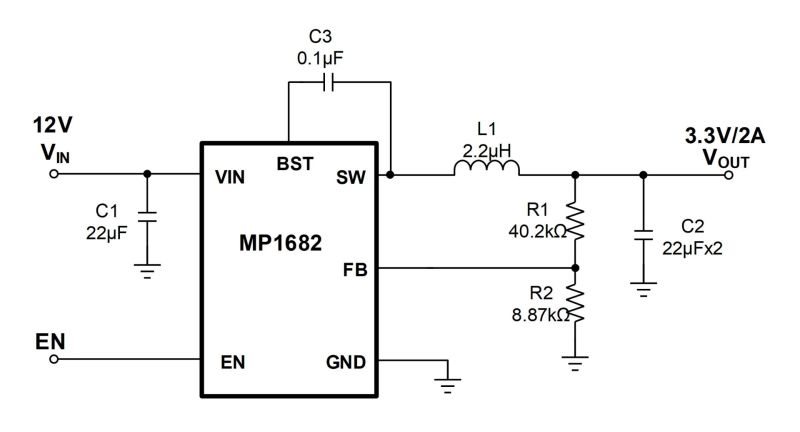

The MP1682 is a fully integrated, high-frequency, synchronous, rectified, step-down switch-mode converter with internal power MOSFETs. The MP1682 offers a very compact solution that achieves up to 2A of continuous output current (I_OUT), with excellent load and line regulation across a wide input voltage (V_IN) range. The MP1682 uses synchronous mode for higher efficiency across the I_OUT load range.

Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.

The MP1682 requires a minimal number of readily available, standard external components, and is available in a space-saving SOT563 package.

Features & Benefits

Wide 4.5V to 16V Operating Input Voltage (V_IN) Range
2A Output Current (I_OUT)
105mΩ/60mΩ Low (R_DS(ON)) Internal Power MOSFETs
110μA Quiescent Current (I_Q)
Output Voltage (V_OUT) Range Adjustable from 0.6V
±1% Feedback (FB) Accuracy at Room Temperature
±1.5% FB Accuracy at Full Temperature
1.1MHz Switching Frequency (f_SW)
Pulse-Skip Operation at Light Load
Excellent Load Transient Performance
Pre-Biased Start-Up
Enable (EN) Power Sequencing
Over-Current Protection (OCP) with Hiccup Mode
Thermal Shutdown
Available in an SOT563 (1.6mmx1.6mm) Package
Optimized Performance with MPS Inductor MPL-AL Series

Active Part Numbers:

MP1682GTF-Z MP1682GTF-P

Meaning of P & Z

Recommended Inductors

Low-Profile Molded Inductor 2.2µH

Low-Profile Molded Inductor 3.3µH

Inductor Selector Tool

*Based on Nominal Values
