MP1654L

MP1654L

16V, 4A, 600kHz, High-Efficiency, Synchronous Step-Down Converter in an SOT563 Package

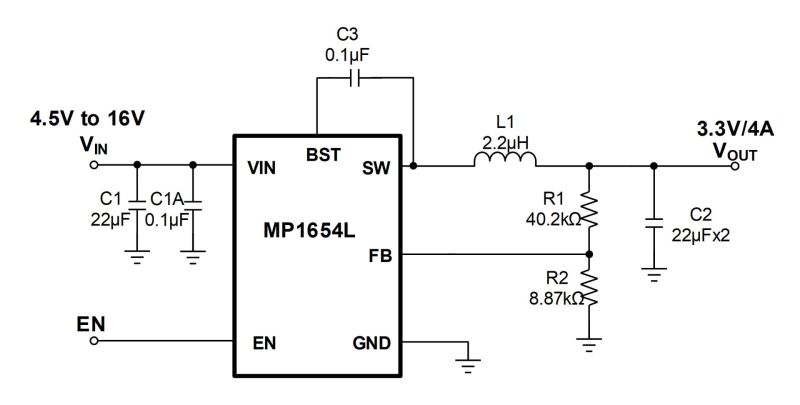

Description

The MP1654L is a fully integrated, high-frequency, synchronous, rectified, step-down switch-mode converter with internal power MOSFETs. The device offers a very compact solution that achieves up to 4A of continuous output current (I_OUT), with excellent load and line regulation across a wide input voltage (V_IN) range. The MP1654L uses synchronous mode for higher efficiency across the I_OUT load range.

Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.

The MP1654L requires a minimal number of readily available, standard external components, and is available in a space-saving SOT563 (1.6mmх1.6mm) package.

Features & Benefits

Wide 4.5V to 16V Operating Input Voltage (V_IN) Range
4A Output Current (I_OUT)
47mΩ/28mΩ Low On Resistance (R_DS(ON)) Internal Power MOSFETs
110μA Quiescent Current (I_Q)
0.6V to 8V Output Voltage (V_OUT) Range
±1% Feedback (FB) Accuracy at Room Temperature
±1.5% FB Accuracy at Full Temperature
600kHz Switching Frequency (f_SW)
Power-Save Mode for High Light-Load Efficiency
Excellent Load Transient Performance
Pre-Biased Start-Up
Enable (EN) Power Sequencing
Over-Current Protection (OCP) with Hiccup Mode
Thermal Shutdown
Available in an SOT563 (1.6mmх1.6mm) Package
Optimized Performance with MPS Inductor MPL-AL6050 Series

Active Part Numbers:

MP1654LGTF-Z MP1654LGTF-P

Meaning of P & Z

Recommended Inductors

Low-Profile Molded Inductor 1.5µH

Low-Profile Molded Inductor 2.2µH

Low-Profile Molded Inductor 3.3µH

Inductor Selector Tool

*Based on Nominal Values
