MP1475

High Efficiency, 3A, 16V, 500kHz Sync Step-Down Converter with PG in TSOT23-8 Package

Newer version available

Datasheet

Overview
Design Resources
Technical Forum
Quality

Vin (Max) 14V to 19V
MP1475

MP1475

High Efficiency, 3A, 16V, 500kHz Sync Step-Down Converter with PG in TSOT23-8 Package

Newer version available

Datasheet

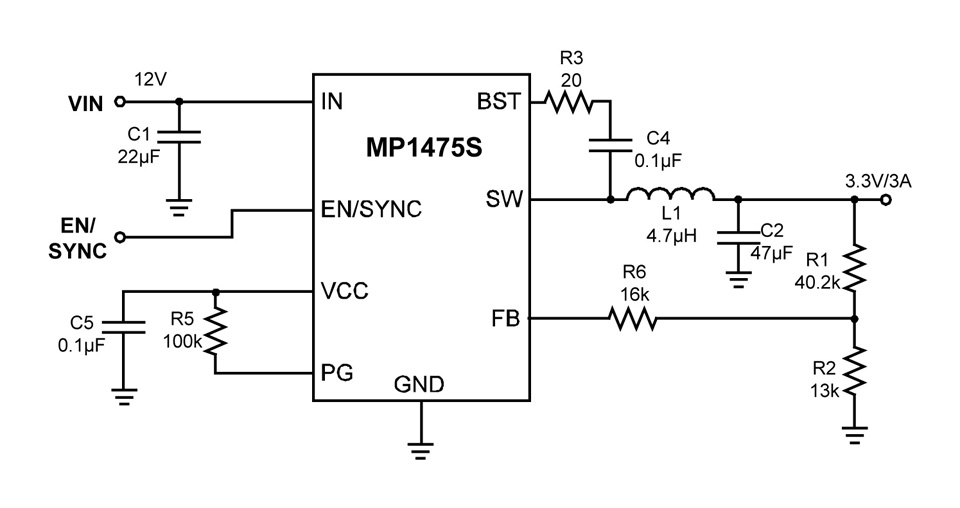

Description

The MP1475 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current with excellent load and line regulation over a wide input supply range. The MP1475 has synchronous mode operation for higher efficiency over the output current load range. Current-mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection and thermal shut down. The MP1475 requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package.

Features & Benefits

Wide 4.5V-to-16V Operating Input Range
80mO/30mO Low RDS(ON) Internal Power MOSFETs
High-Efficiency Synchronous Mode Operation
Fixed 500kHz Switching Frequency
Synchronizes from a 200kHz-to-2MHz External Clock
Power-Save Mode at light load
Internal Soft-Start
Power Good Indicator
OCP Protection and Hiccup
Thermal Shutdown
Output Adjustable from 0.8V
Available in an 8-pin TSOT-23 Package

Active Part Numbers:

MP1475DJ-LF-P MP1475DJ-LF-P MP1475DJ-LF-Z MP1475SGJ-P MP1475SGJ-P MP1475SGJ-Z

Recommended Inductors

Semi-Shielded Inductor 3.3µH

Semi-Shielded Inductor 3.3µH

Low-Resistance Molded Inductor 3.3µH

Show more

Show more

Inductor Selector Tool

*Based on Nominal Values
