MP1475S
Active Part Numbers:
MP1475SGJ-P MP1475SGJ-Z MP1475SGJ-LF-Z MP1475SXN
Meaning of P & Z
Evaluation Tools

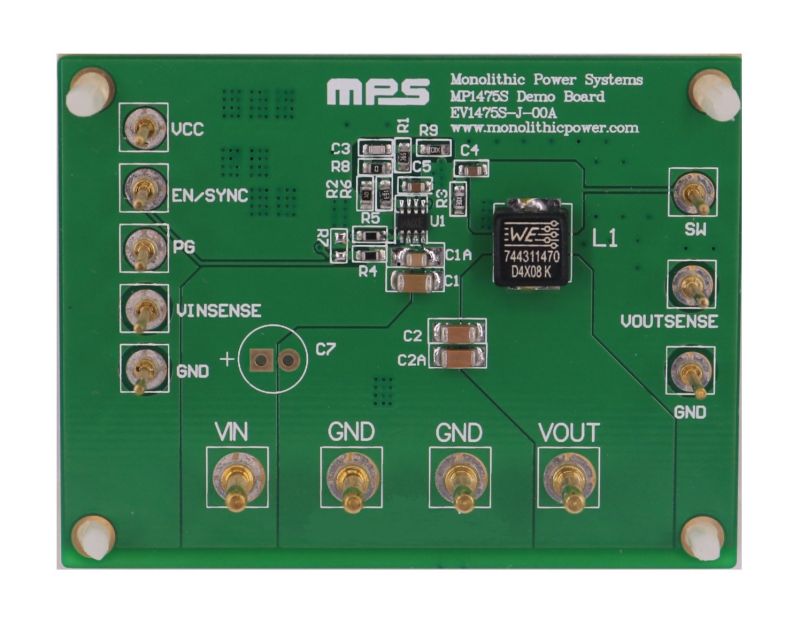

EV1475S-J-00A Evaluation Kit High-Efficiency, 3A, 16V, 500kHz Synchronous Step-Down Converter Evaluation Board
The EV1475S-J-00A evaluation board is designed to demonstrate the capabilities of the MP1475S, a high-frequency, synchronous, rectified, step-down converter with a built-in high-side and low-side MOSFETs (HS-FET and LS-FET, respectively). The MP1475S offers a compact solution to achieve 3A of continuous output current (IOUT), with excellent load and line regulation across a wide input supply range. The MP1475S provides synchronous mode operation for higher efficiency across the IOUT load range.
Current mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection (OCP) and thermal shutdown (TSD).
The MP1475S is available in a space-saving TSOT23-8 package.
Recommended Inductors
Semi-Shielded Inductor 3.3µH
