MP2332H

MP2332H

4.2V to 18V Input, 2A, 1.2MHz Synchronous Buck Converter with Power Good and Soft Start in SOT583 (1.6mmx2.1mm) Package

Datasheet

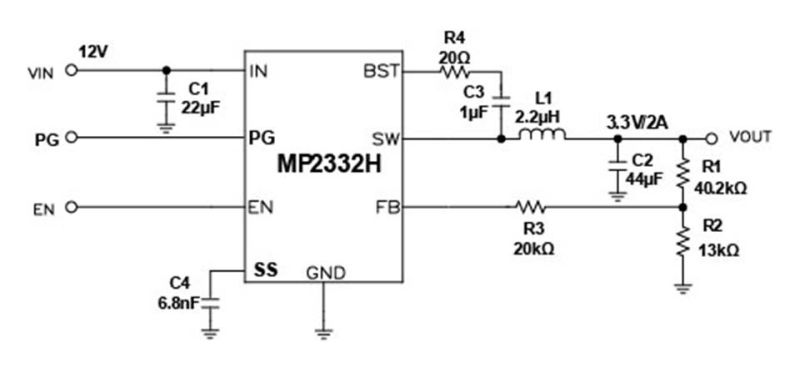

Description

The MP2332H is a fully integrated, high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. The MP2332H offers a very compact solution that achieves 2A of continuous output current with excellent load and line regulation over a wide input range. The MP2332H uses synchronous mode operation for higher efficiency over the output current load range.

Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.

The MP2332H requires a minimal number of readily available, standard external components, and is available in a space-saving SOT583 (1.6mmх2.1mm) package.

Features & Benefits

Wide 4.2V to 18V Operating Input Range
95mΩ/45mΩ Low R_DS(ON)Internal Power MOSFETs
200µA Low I_Q
High-Efficiency Synchronous Mode Operation
Fast Load Transient Response
1.2MHz Switching Frequency
t_ON Extension
Forced PWM Operation
Programmable Soft-Start Time
Power Good (PG) Indication
Over-Current Protection (OCP) and Hiccup
Pre-Bias Start-Up
Thermal Shutdown
Available in a SOT583 (1.6mmx2.1mm) Package

Active Part Numbers:

MP2332HGTL-Z MP2332HGTL-P

Meaning of P & Z

Evaluation Tools

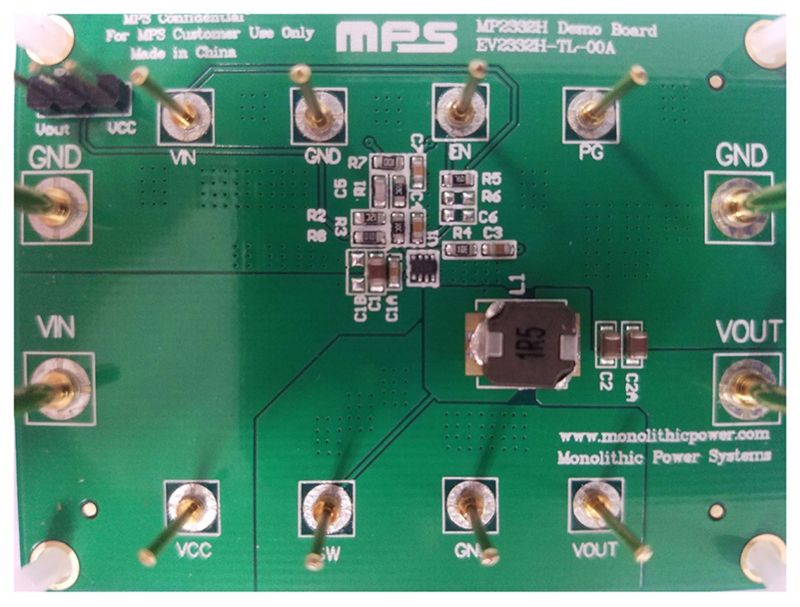

EV2332H-TL-00A Evaluation Kit High-Efficiency, 1.2MHz, 2A, 18V, Step-Down Converter Evaluation Board

The EV2332H-TL-00A evaluation board is designed to demonstrate the capabilities of MPS’s MP2332H, a fully integrated, high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve 2A of continuous output current over a wide input range, with excellent load and line regulation. The MP2332H has synchronous mode operation for higher efficiency over the output current load range.

Constant-on-time control operation provides very fast transient response and easy loop design, as well as very tight output regulation. Full protection features include SCP, OCP, UVP, and thermal shutdown.

The MP2332H requires a minimal number of readily available, standard external components, and is available in a space-saving SOT583 (1.6mmх2.1mm) package.
