MP6549

MP6549

22V, 10A, Three-Phase Power Stage

概要

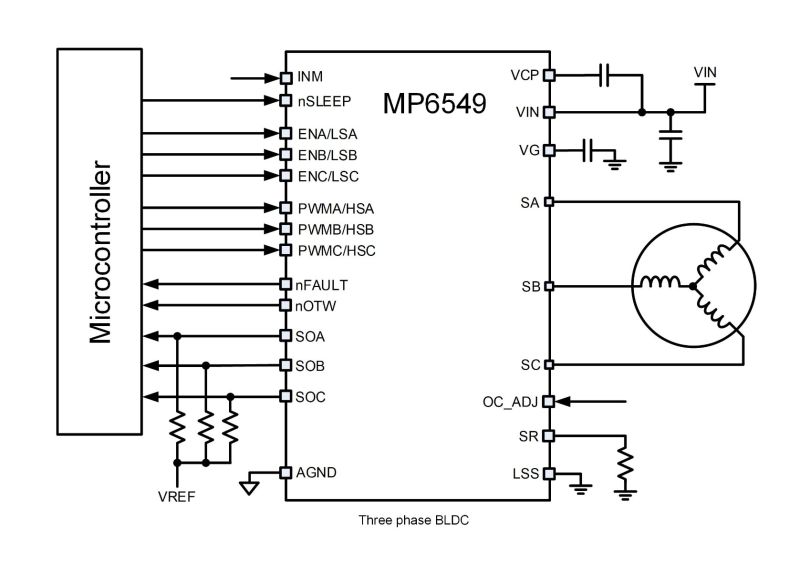

The MP6549 is a three-phase brushless DC motor driver that integrates three half bridges, consisting of 6 N-channel power MOSFETs along with pre-drivers, gate driver power supplies, and current-sense amplifiers.

Two configurable input modes are available on the MP6549: enable (EN) and pulse-width modulation (PWM) inputs for each half H-bridge, with separate high-side (HS) and low-side (LS) inputs. The device can deliver up to 10A of current continuously (depending on thermal and PCB conditions) with the adjustable over-current protection (OCP) threshold.

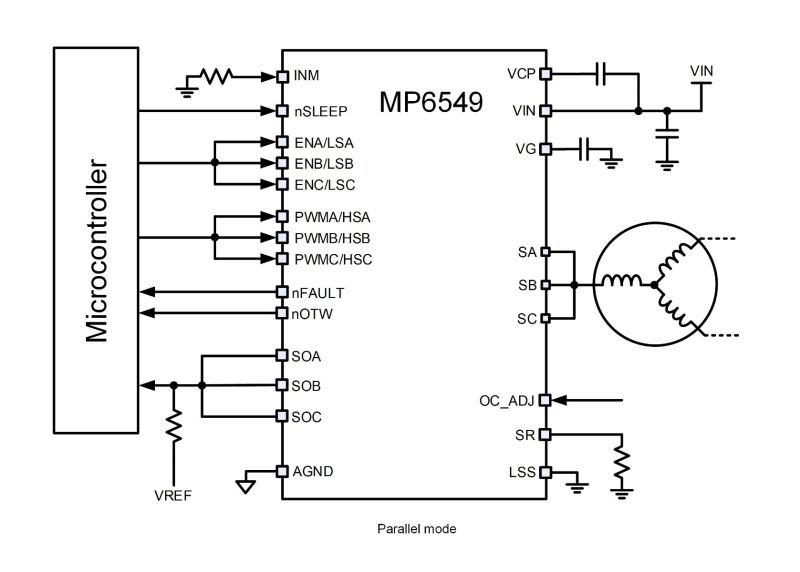

For higher current requirements, three half-bridges can be configured in parallel. The INM pin configures the input interface and parallel mode.

The MP6549 uses an internal charge pump to generate the gate drive supply voltage for the high-side MOSFETs (HS-FETs), and a trickle charge circuit that maintains sufficient gate drive voltage to operate at 100% duty cycle.

Internal safety features include thermal shutdown, under-voltage lockout (UVLO), and over-current protection (OCP).

The MP6549 is available in a QFN-26 (4mmx4mm) package.

機能と利点

3V to 22V Operating Supply Voltage
Three Integrated Half-Bridge Drivers
10A Continuous Output Current (I_OUT) with 16A Peak
Parallel Mode: 18A Continuous Current with 30A Peak
Low MOSFET On Resistance (R_DS(ON)): 10mΩ High Side, 7mΩ Low Side
Configurable Input Modes: Pulse-Width Modulation (PWM) and Enable (EN) Inputs, High-Side (HS) and Low-Side (LS) Inputs
- Optional: Parallel Mode for High-Current, Single Half-Bridge
Internal Charge Pump Supports 100% Duty Cycle Operation
Automatic Synchronous Rectification
Configurable Slew Rate
Under-Voltage Lockout (UVLO) and Thermal Shutdown Protection
Output Fault Flag and Thermal Warning
Configurable Over-Current Protection (OCP)
Integrated, Bidirectional Current-Sense Amplifiers
Available in a QFN-26 (4mmx4mm) Package
