MP5505

NOT RECOMMENDED FOR NEW DESIGNS

7V, 4A, High-Efficiency Energy Storage and Management Unit for SSD Applications

ALTERNATIVE PART

NRFND Datasheet

MP5505 continues to be in production for existing customers. Please consider this alternative for new designs:

MP5505A

7V, 4A, High-Efficiency Energy Storage and Management Unit for SSD Applications

Features & Benefits

Wide 2.7V to 7V Operating Input Range
Input-Current Limiter with Integrated 60mΩ MOSFET
Up to 4.5A Input-Current Limit
Reverse-Current Protection
6V Bus-Clamping Voltage
Power-On-Reset
Adjustable dv/dt Slew Rate for Bus Voltage Start-Up
Internal 30mΩ Disconnect Switch
Internal 70mΩ and 60mΩ Power Switches for Energy Storage and Release Management Circuits
Thermal Protection
EN and Power Good Indicators
Available in a QFN-20 (3mm×4mm) Package

… and many more!

概要

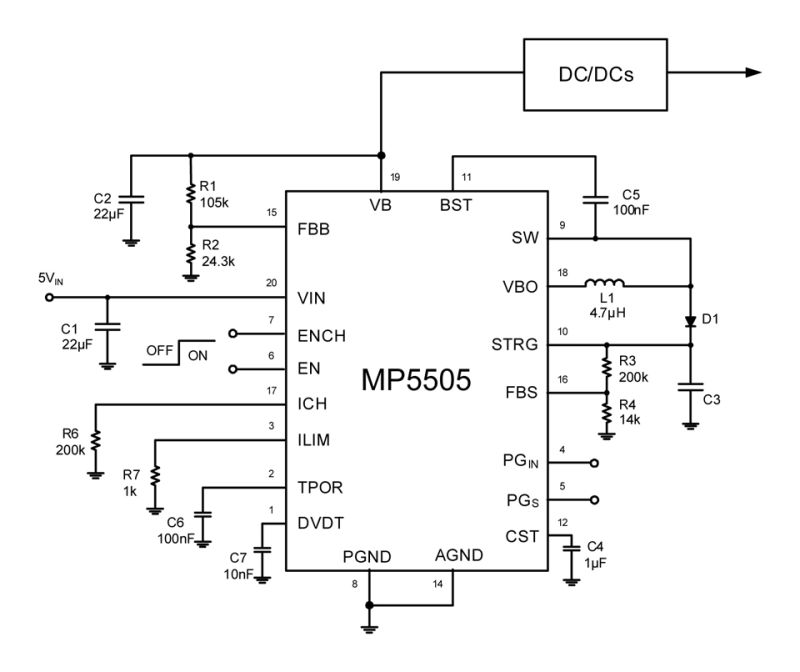

MP5505 is a lossless energy storage and management unit targeted at the solid-state and hard-disk drive applications. Its highly-integrated input-current limit and energy storage and release management makes the system solution very compact.
The internal input-current–limit block with dv/dt control prevents inrush current during system start up. The bus voltage start-up slew rate is programmable. It also includes a Power-On-Reset function for hot-swapping. MPS’s patented energy storage and release management control circuit minimizes the storage capacitor requirement. It pumps the input voltage to a higher storage voltage and releases the energy over a hold-up time to the system in the case of an input outage. The storage voltage and the release voltage are both programmable for different system applications.
The MP5505 requires a minimal number of readily-available standard external components, and is available in a 20-pin QFN (3mm×4mm) package.
