MPQ70165FS-AEC1

MPQ70165FS-AEC1

MPSafe^TM, ASIL-B, 5.5V PMIC with 6 Buck Converters, AEC-Q100 Qualified

Description

The MPQ70165FS-AEC1 is a power management IC (PMIC) designed to meet the power management requirements of processors used in various safety-relevant automotive systems.

The six integrated, synchronous buck converters can be configured as 3-rail, dual-phase or 6-rail, single-phase converters. With dynamic voltage scaling, the output voltage (V_OUTx, where x = 1 to 6) of each converter can be changed during normal operation. The PMBus interface provides packet error checking (PEC) and an integrated multi-page one-time programmable (MOTP) memory, which allows for a high degree of configurability.

To prevent overshoot during start-up, soft-start (SS) functionality is featured on each converter. In addition, to allow for proper discharging during shutdown, soft-shutdown functionality is featured on each converter. The slew rate for both functions can be configured via the digital registers.

The MPQ70165FS-AEC1 also features a configurable windowed or Q&A watchdog and dedicated WDI pin, an external voltage monitor, and a sequence output pin.

2MHz, fixed-frequency peak current mode control regulates V_OUTx, offers fast transient performance, and allows for a large reduction in external inductance and capacitance. Frequency spread spectrum (FSS) reduces EMI noise. A full protection suite is included and features under-voltage lockout (UVLO), under-voltage protection (UVP), over-voltage protection (OVP), and thermal shutdown.

Safety mechanisms such as built-in self-testing (BIST) provide high diagnostic coverage, which help the system achieve its target ASIL rating. It has been developed under MPS's advanced MPSafe^TM functional safety product development process, which has been independently certified to meet ISO 26262 guidelines.

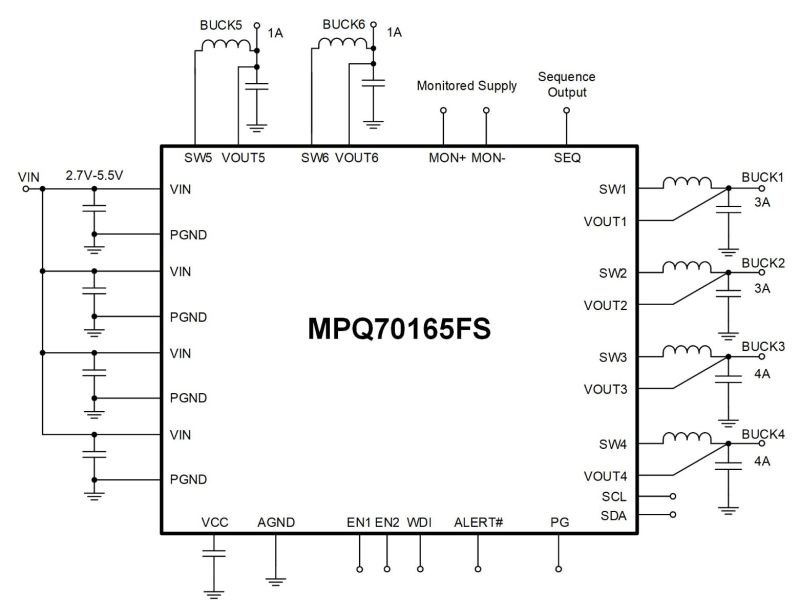

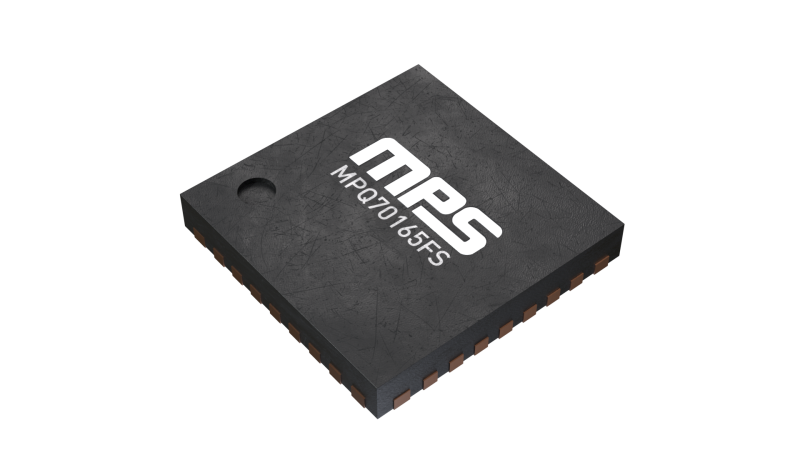

The MPQ70165FS-AEC1 is available in a TQFN-32 (5mmx5mm) package. It is available in AEC-Q100.

Features & Benefits

Designed for Automotive Applications:
- 2.7V to 5.5V Input Voltage (V_IN) Range
- -40°C to +150°C Junction Temperature (T_J) Rating
Reduces Board Size and BOM:
- Two 4A Bucks
- Two 3A Bucks
- Two 1A Bucks
- Optional Multi-Phase Operation
- Dynamic Voltage Scaling
Optimized for EMC/EMI:
- 180° Phase Shift between Bucks 1/3/6 and Bucks 2/4/5
- 2MHz Fixed Switching Frequency (f_SW)
- Frequency Spread Spectrum (FSS)

Additional Features:

Multi-Page One-Time Programmable (MOTP) Memory
External Voltage Monitor
Windowed or Q&A Watchdog Timer

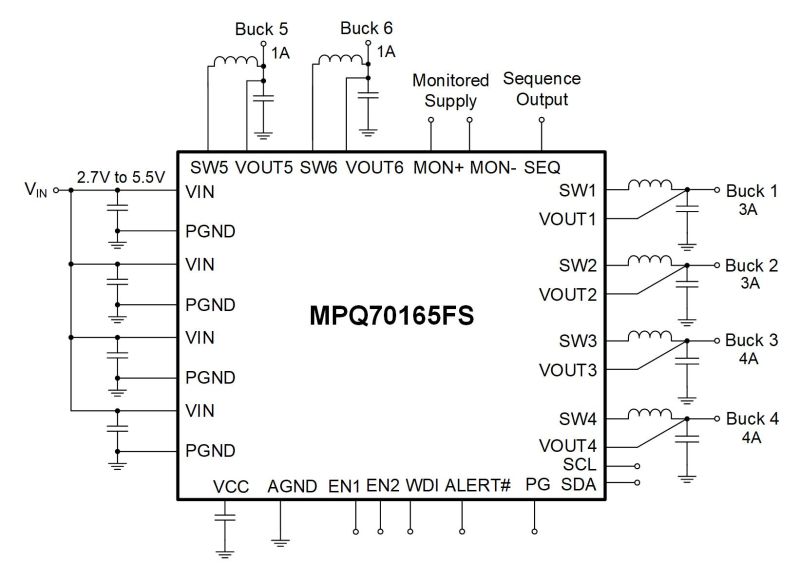

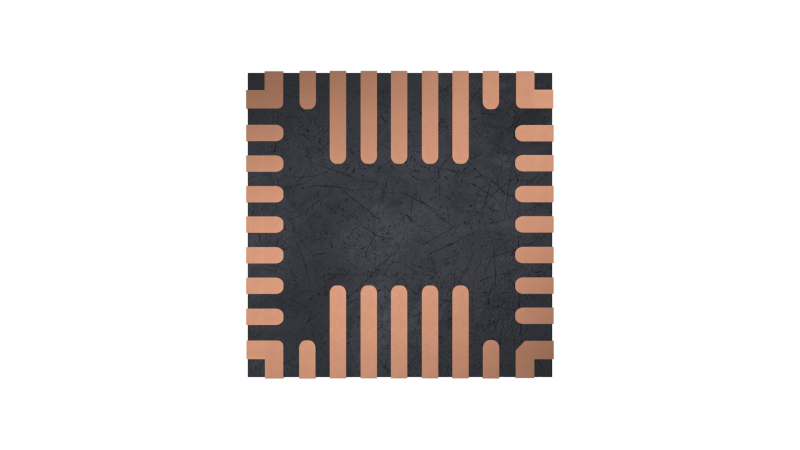

Available in a TQFN-32 (5mmx5mm) Package with Wettable Flanks
PMBus Interface with Packet Error Checking (PEC)
Available in AEC-Q100 Grade 1

Functional Safety:

ASIL-B Hardware Capable
Fail-Safe State Machine
Built-In Self-Testing (BIST)
Clock Monitor
Voltage Reference Monitor
Protected Memory and Registers
Documents Available for ISO 26262 System Design
Failure Modes Effects and Diagnostic Analysis (FMEDA)
Safety Manual

Active Part Numbers:

MPQ70165FSGUTE-xxxxAEC1-Z MPQ70165FSGUTE-xxxxAEC1-P MPQ70165FSGUTE-0001AEC1-Z MPQ70165FSGUTE-0001AEC1-P

Meaning of P & Z

Related Products

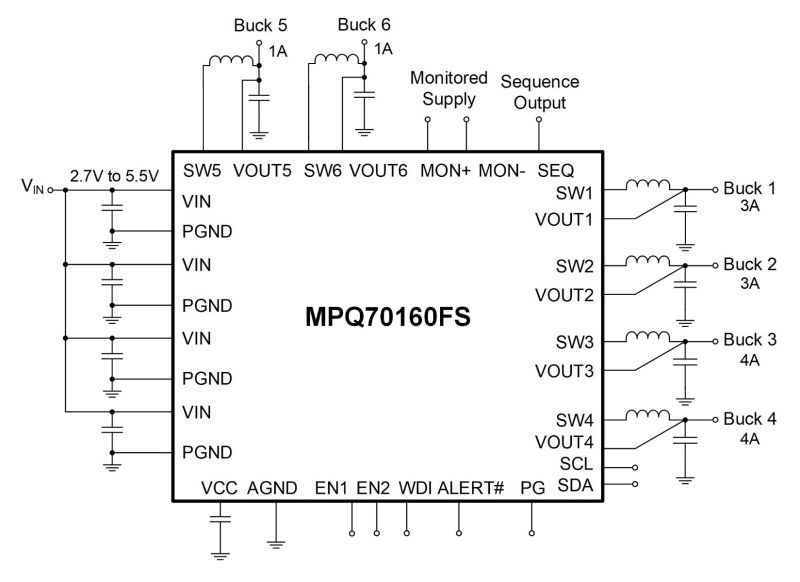

MPQ70160FSGUE-AEC1 MPSafe^TM ASIL-D, 5.5V, PMIC with 6 Buck Converters, AEC-Q100 Qualified
