MPQ4390-AEC1

MPQ4390-AEC1

40V, High Current Output, Synchronous, Dual Buck Converter, AEC-Q100 Qualified

Description

The MPQ4390-AEC1 is a high current output, synchronous, dual buck converter that is designed for automotive applications. The device provides a wide input voltage (V_IN) range, fast transient response, high efficiency, rich monitoring and protection features, and good EMI performance.

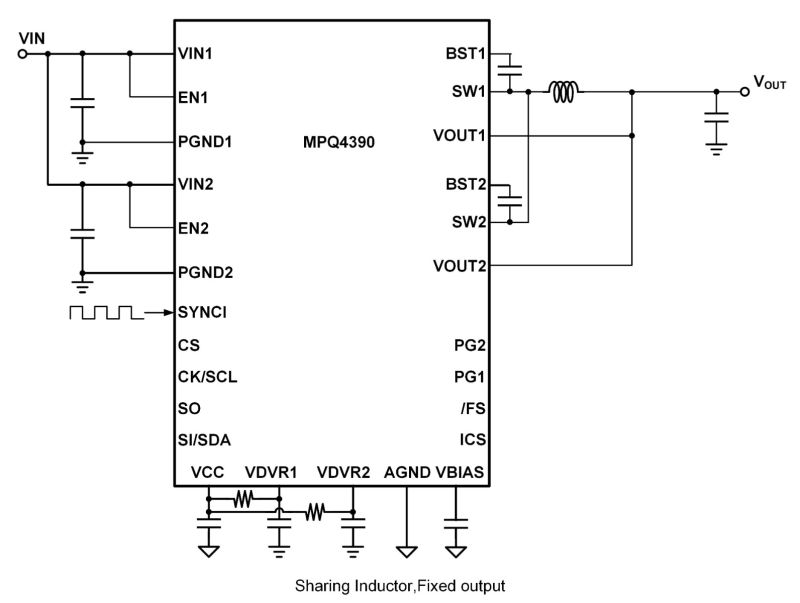

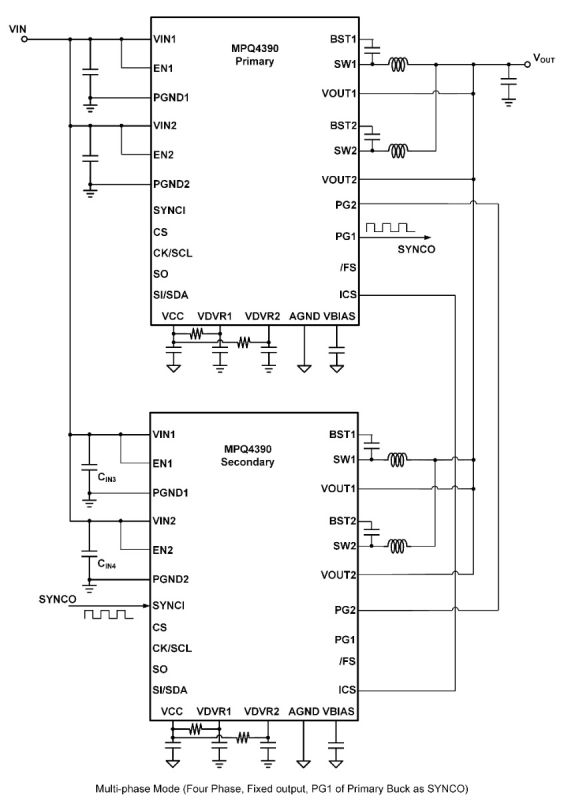

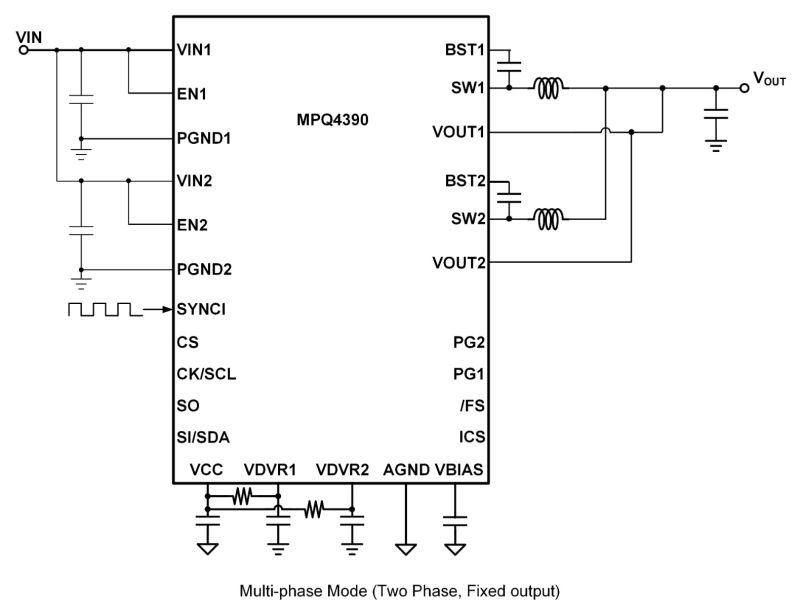

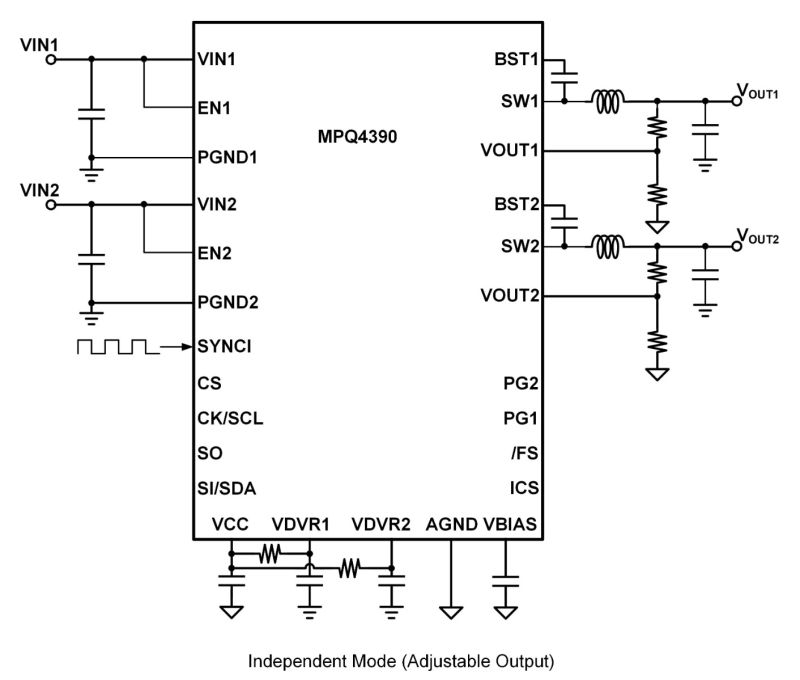

The MPQ4390-AEC1 can be selected to operate in either 2-channel mode or single-output multi-phase mode. For 2-channel mode, the output current (I_OUT) for each buck reaches up to 7A, and has a 12A capability with a heat sink. Multiple MPQ4390 chips connected in parallel can also support 4-phase or 8-phase modes.

The switching frequency (f_SW) is configurable between 200kHz and 2.2MHz, or it can be synchronized to an external clock signal. The MPQ4390-AEC1 also provides the frequency spread-spectrum (FSS) function to improve EMI performance.

Different configurations can easily be configured via three selectable interfaces, including a serial peripheral interface (SPI) and an I²C. The one-time programmable (OTP) memory allows for vast flexibility via configurability.

The MPQ4390-AEC1 is available in a TQFN-28 (5mmx6mm) package, and is available in AEC-Q100 Grade 1.

Features & Benefits

High Power Output Capability:
- 14A or 24A (with Heat Sink) Parallel Channels
- 7A or 12A (with Heat Sink) per Channel
- Multi-Chip, Multi-Phase Capability
- Low-Resistance High-Side MOSFETs (HS-FETs) and Low-Side MOSFETs (LS-FETs)
Built for Automotive Applications:
- Load Dump Up to 40V
- Cold Crank Down to 3V
- Wide Output Voltage (V_OUT) Range:
  - Output Up to 9V with Internal Feedback (FB) Divider
  - Output Up to 15V with External FB Divider
- Low Quiescent and Shutdown Currents
- Zero-Delay Pulse-Width Modulation (PWM) Control
Optimized for EMI/EMC:
- Frequency Spread Spectrum (FSS)
- 200kHz to 2.2MHz Switching Frequency (f_SW)
- Quiet-FET^TM Switching Technology
- CISPR 25 Class 5 Compliant
- Mesh-Connect^TM Flip-Chip Package
Advanced Monitoring and Protection Features:
- Windowed Watchdog Timer
- 8-Bit SAR Analog-to-Digital Converter (ADC) Monitors the Output Current (I_OUT), V_OUT, Input Voltage (V_IN), and Temperature
- Cycle-by-Cycle Current Limit
- Input/Output Over-Voltage Protection (OVP)
- Output Short-Circuit Protection (SCP)
- Thermal Shutdown (TSD)
Additional Features:
- Internal Soft Start (SS)
- Clock Synchronization
- Power Good (PG) Indicators
- Selectable Advanced Asynchronous Modulation (AAM) Mode or Forced Continuous Conduction Mode (FCCM)
- Serial Peripheral Interface (SPI) or I²C Interface with Optional Cyclic Redundancy Check (CRC)
- One-Time Programmable (OTP) Memory
- Available in a TQFN-28 (5mmx6mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1

Active Part Numbers:

MPQ4390GQJTE-xxxx-AEC1-Z MPQ4390GQJTE-xxxx-AEC1-P MPQ4390GQJTE-0000-AEC1-Z MPQ4390GQJTE-0000-AEC1-P
