MP6517A

MP6517A

NOT RECOMMENDED FOR NEW DESIGNS

Single-Phase, BLDC, Motor Driver with Integrated Hall Sensor

ALTERNATIVE PART

NRFND Datasheet

MP6517A continues to be in production for existing customers. Please consider this alternative for new designs:

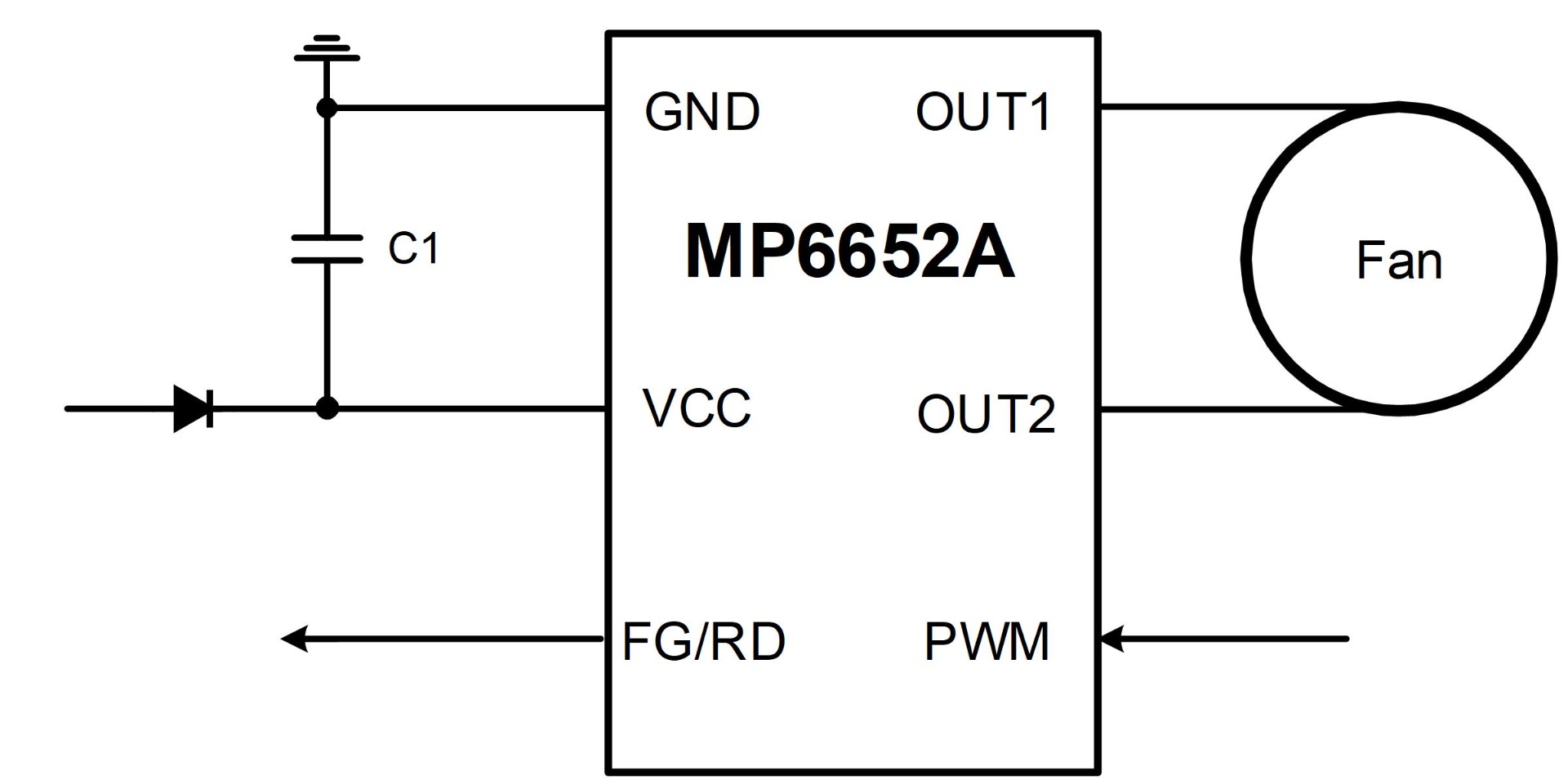

MP6652A

18V, Single-Phase BLDC Fan Driver with Embedded Hall Sensor and MOSFETs

Features & Benefits

On-Chip Hall Sensor
Wide 3V to 18V Operating Input Voltage (V_IN) Range
Up to 1A Peak Current Limit
Integrated Power MOSFETs: Total 850mΩ for High-Side MOSFET (HS-FET) and Low-Side MOSFET (LS-FET)
Configurable Speed Curve
1kHz to 100kHz Pulse-Width Modulation (PWM) Input Frequency Range
Soft-On/Off Phase Commutation
Configurable Output Indication on FG/RD:
- Rotational Speed Indicator (FG)
- Locked Rotor Protection Fault (RD)
Fixed 27kHz Output Switching Frequency (f_SW)
Configurable Speed Reference Soft-Start Time (t_SS)
1x, 0.5x, or 2x Original FG Frequency Output
Recoverable Locked Rotor Protection
Recoverable Thermal Protection
Recoverable Input Over-Voltage Protection (OVP)
Available in TSOT23-6-SL and TSOT23-6-R Packages

… and many more!

Description

The MP6517A is a single-phase BLDC motor driver with an integrated Hall sensor and power MOSFETs. It drives a single-phase BLDC fan with output current limit up to 2A.

The MP6517A has wide input voltage range (3.3V to 16V) with input line reverse voltage protection. The motor rotational speed is controlled by the PWM duty applied on PWM pin.

The rotational speed output indicator or rotor dead-lock fault indicator output is selectable on FG/RD pin with an open drain output. The MP6517A has programmable output speed versus the input duty curve.

The MP6517A has soft on/off phase transition and automatic phase-lock function to reduce fan driver audible noise and power loss.

Full protection are employed in the MP6517A including input over-voltage protection (OVP), under-voltage lockout (UVLO), rotor deadlock protection, thermal shutdown, and input reverse protection. All protection is recoverable

The MP6517A is available in a TSOT23-6-L, a TSOT23-6-R, a TSOT23-6-SL, and a TSOT23-6-RSL package.

Features & Benefits

Integrated Hall Sensor
3.3V to 16V Input Voltage Range
Integrated Power MOSFETs: Total 850mΩ (HS + LS)
Programmable Current Limit Up to 2A
Speed Curve Programmable
Soft On/Off Phase Transition
Built-In Adjustable Speed Curve Corner Setting
Rotational Speed Indicator (FG) or Rotor Deadlock fault indicator (RD)
Automatic Phase Lock Detection of Winding BEMF and Current Zero-Crossing
12kHz to 48kHz PWM Input Frequency Range
Fixed 26kHz Output Switching Frequency
Input Line Reverse Voltage Protection (RVP)
Rotor Deadlock (RD) Protection and Automatic Recovery
Thermal Protection and Automatic Recovery
Built-In Input OVP, UVLO, and Automatic Recovery
Available in a TSOT23-6-L, a TSOT23-6-R, a TSOT23-6-SL, and a TSOT23-6-RSL Package
