MP6617
18V, 6A Peak, 1-Phase BLDC Motor Driver with Integrated MOSFETS and Hall Sensor
Session textval
Session Titefor popup

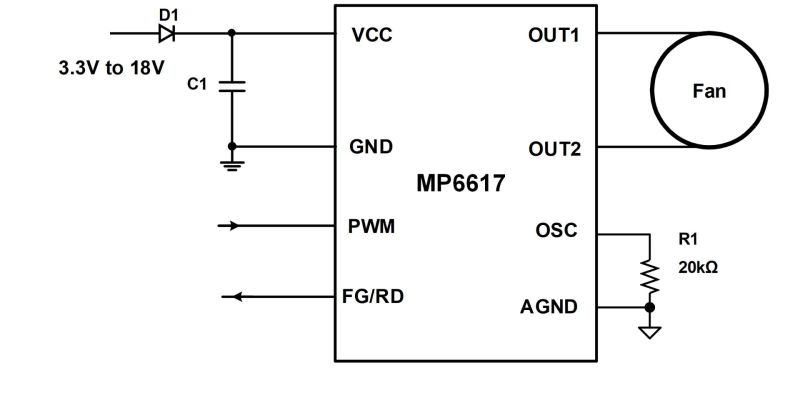

Description
The MP6617 is a single-phase brushless DC (BLDC) motor driver with integrated power MOSFETs and a Hall sensor. It drives a single-phase BLDC motor with up to 6A of peak current. The input voltage (VIN) ranges between 3.3V and 18V.
The MP6617 controls the motor speed through the pulse-width modulation (PWM) signal, with a PWM input frequency between 60Hz and 100kHz.
The MP6617 also has a rotational speed detection feature. The rotational speed detector (the FG/RD pin) is an open-drain output. It outputs a high or low voltage relative to the internal Hall comparator’s output.
Rich protections include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current protection (OCP), and thermal shutdown protection.
The MP6617 is available in a QFN-10 (2.5mmx3mm) package.
-
Show more
Show less
Features & Benefits
- 3.3V to 18V Input Voltage (VIN) Operating Range
- On-Chip Hall Sensor
- Integrated MOSFET: HS + LS = 64mΩ
- 60Hz to 100kHz Pulse-Width Modulation (PWM) Input
- Curve Configuring
- Selectable Open-Loop or Closed-Loop Speed Control
- Configurable Soft-Acceleration Time
- Power-Save Mode
- 27kHz Switching Frequency (fSW)
- Configurable Current Limit Up to 6A
- Short-Circuit Protection (SCP)
- Over-Voltage Protection (OVP)
- Locked-Rotor Protection
- Selectable FG and RD Outputs
- Available in a QFN-10 (2.5mmx3mm) Package
Active Part Numbers:
MP6617GQB-xxxx-Z MP6617GQB-0000-Z MP6617GQB-xxxx-P MP6617GQB-0000-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
