MP6642
Session textval
Session Titefor popup

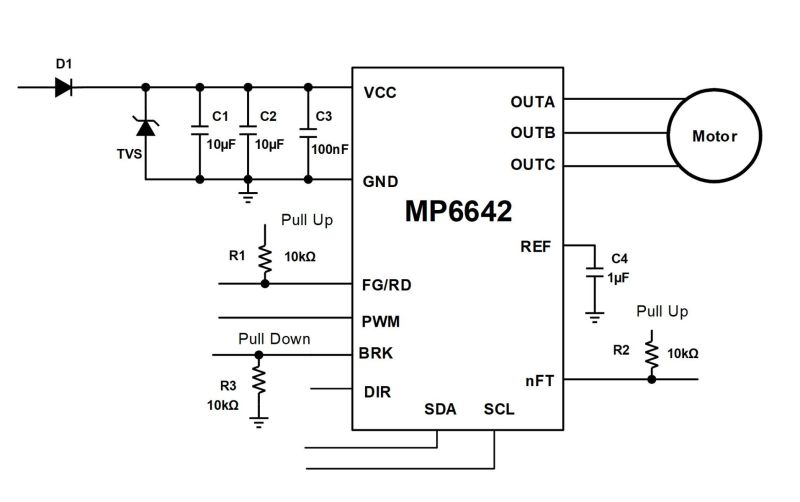

Description
The MP6642 is a three-phase sensorless brushless DC (BLDC) motor driver with integrated power MOSFETs with up to 5A of phase peak current. It features sensorless field-oriented control (FOC) for better efficiency and low vibration. The input voltage (VIN) ranges from 4V to 35V.
The MP6642 controls the motor speed through the pulse-width modulation (PWM) signal with a PWM input frequency between 50Hz and 100kHz. In addition, the device supports DC input speed control.
The MP6642 also has a rotational speed detector feature. The rotational speed detector (the FG/RD pin) is an open-drain output. The direction control is achieved through the DIR pin's input.
The I2C interface accesses the internal register configurations for optimized operation.
Rich protection includes input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, phase-loss protection, over-current protection (OCP), under-current protection (UCP), and thermal shutdown protection.
The MP6642 is available in a wettable-flank TQFN-17 (3mmx4mm) package.
-
Show more
Show less
Features & Benefits
- 4V to 35V Operating Input Voltage (VIN) Range
- Up to 5A of Peak Phase Current
- Sensorless Field-Oriented Control (FOC)
- Integrated MOSFET: (HS-FET + LS-FET) = 100mΩ
- Supports 0.1V to 3V DC Input or 50Hz to 100kHz Pulse-Width Modulation (PWM) Input
- Curve Configurations
- Open-Loop or Closed-Loop Speed Control
- Configurable Soft Acceleration Time
- Configurable Align Time
- Direction/Brake Control
- Power-Saving Mode
- 24kHz PWM Output Frequency
- Configurable Current Limit Up to 5A
- Short-Circuit Protection (SCP)
- Over-Voltage Protection (OVP)
- Phase-Loss Protection
- Locked-Rotor Protection
- Selectable FG and RD Output
- Faults Diagnostics
- Available in a TQFN-17 (3mmx4mm) Wettable-Flank Package
Active Part Numbers:
MP6642GLTE-xxxx-Z MP6642GLTE-xxxx-P MP6642GLTE-0000-Z MP6642GLTE-0000-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
