- MP6636
MP6636
Session textval
Session Titefor popup
Description
The MP6636 is a three-phase, sensorless brushless DC (BLDC) motor driver with integrated power MOSFETs. It features sensorless field-oriented control (FOC) for improved efficiency and low vibration, with an operating current of up to 2A. The input voltage (VIN) ranges between 3.3V and 18V.
The MP6636 controls the motor speed through the pulse-width modulation (PWM) signal with a PWM input frequency ranging between 50Hz and 50kHz. Meanwhile, the MP6636 also supports a DC input for speed control.
The MP6636 provides rotational speed detection. The rotational speed detector (the FG pin) is the output of an open-drain output.
Rich protections include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, phase-loss protection, over-current protection (OCP), and thermal shutdown.

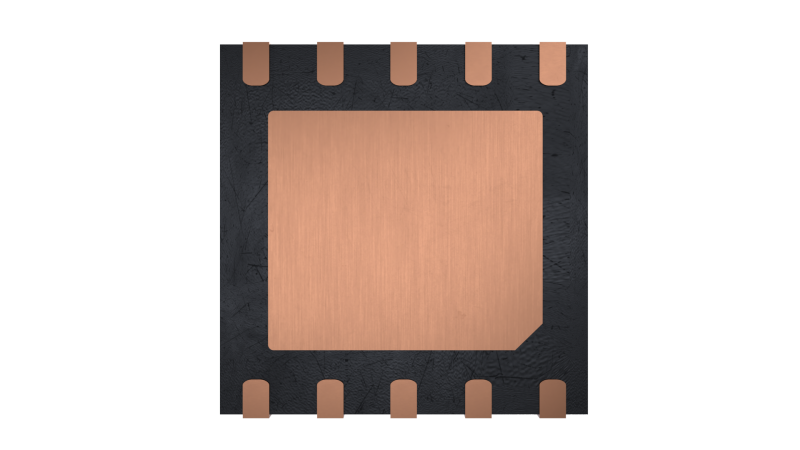

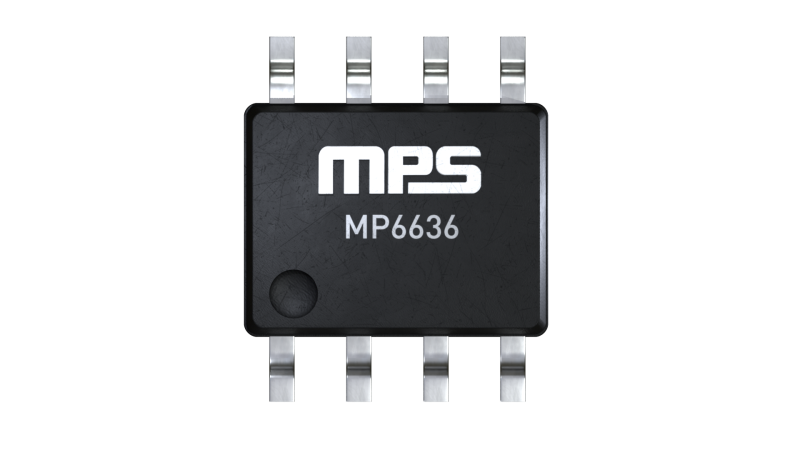

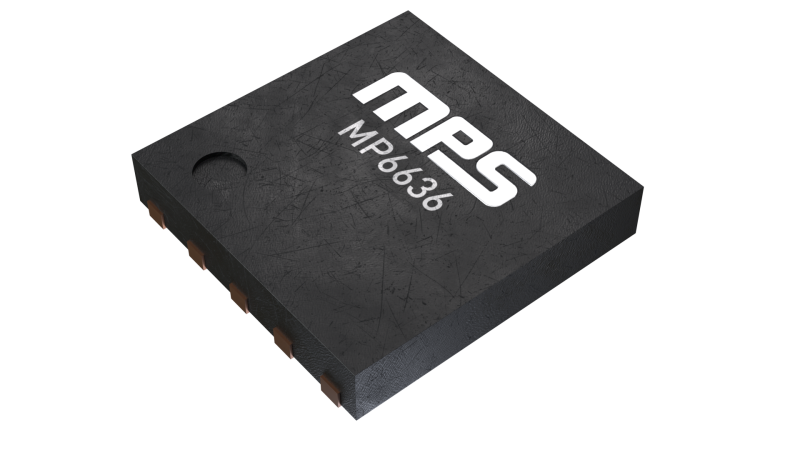

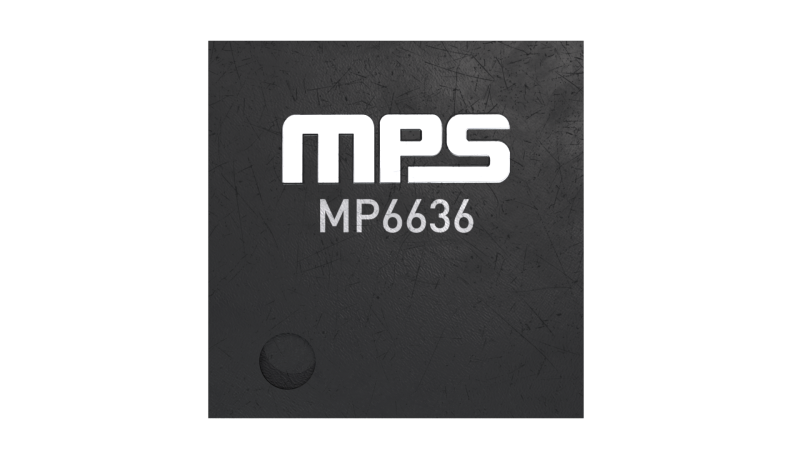

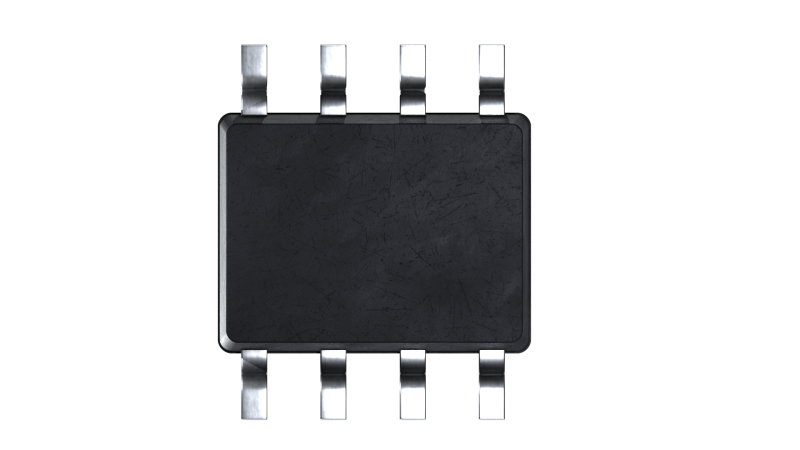

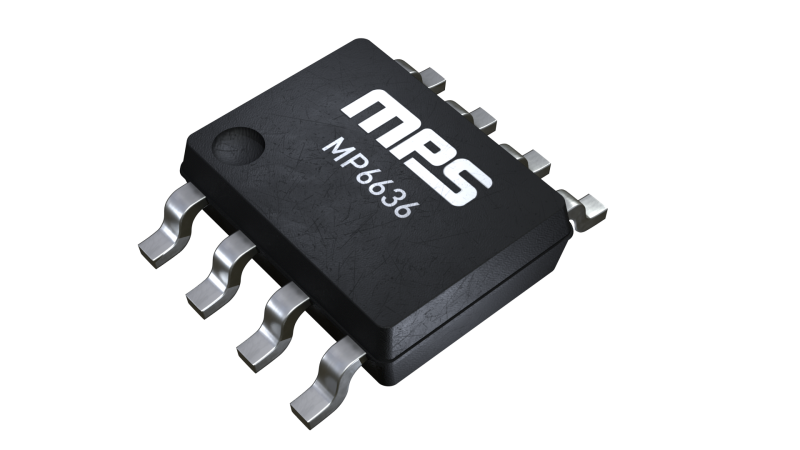

The MP6636 is available in SOIC-8 EP and TQFN-10 (4mmx4mm) packages.
-
Show more
Show less
Features & Benefits
- 3.3V to 18V Input Voltage (VIN) Range
- Up to 2A Continuous Current
- Sensorless Field-Oriented Control (FOC)
- Integrated MOSFETs: High-Side (HS) + Low-Side On Resistance (RDS(ON)) = 190mΩ
- Supports 0.3V to 3.15V DC Input or 50Hz to 50kHz Pulse-Width Modulation (PWM) Input for Speed Control
- Starting Duty Cycle Set with Hysteresis
- Configurable Curve
- Selectable Open-Loop or Closed-Loop Speed
- Configurable Soft Acceleration Time
- Configurable Align Time
- Configurable Direction Control
- Power-Saving Mode
- 24kHz PWM Output Frequency
- Configurable Current Limit Up to 4A
- Short-Circuit Protection (SCP)
- Over-Voltage Protection (OVP)
- Phase-Loss Protection
- Over-Temperature Protection (OTP)
- Locked-Rotor Protection
- Selectable FG and RD Outputs
- Available in SOIC-8 EP and TQFN-10 (4mmx4mm) Packages
Active Part Numbers:
MP6636GN-xxxx-Z MP6636GRT-xxxx-Z MP6636GN-0000-Z MP6636GRT-0000-Z MP6636GN-xxxx-P MP6636GRT-xxxx-P MP6636GN-0000-P MP6636GRT-0000-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
