5.5V, 1.3A Peak, Three-Phase, Sensorless BLDC Motor Driver with Integrated MOSFETs

Datasheet

Description

The MP6637 is a three-phase, sensorless, brushless DC (BLDC) motor driver with integrated power MOSFETs. The device features sinusoidal sensorless control for better efficiency and low vibration, with up to 1.3A of peak phase current. The input voltage (V_CC) ranges from 2.5V to 5.5V.

The MP6637 controls the motor speed through the pulse-width modulation (PWM) signal with a 1kHz to 100kHz PWM input frequency.

The MP6637 features rotational speed detection. The rotational speed is an open-drain output via the FG/RD pin.

Rich protection features include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current protection (OCP), and thermal shutdown.

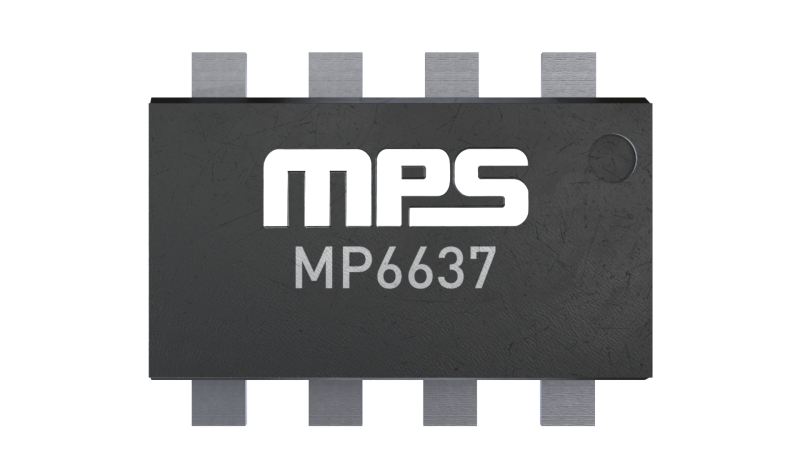

The MP6637 is available in an SOT583 package.

Features & Benefits

2.5V to 5.5V Operating Input Voltage (V_CC) Range
Up to 1.3A of Peak Phase Current
Sinusoidal Sensorless Control
Integrated 350mΩ High-Side MOSFETs (HS-FETs) and Low-Side MOSFETS (LS-FETs)
Supports 1kHz to 100kHz Pulse-Width Modulation (PWM) Input
Power-Save Mode (PSM)
30kHz Switching Frequency (f_SW)
Current Limit
Short-Circuit Protection (SCP)
Over-Voltage Protection (OVP)
Locked-Rotor Protection
Selectable FG or RD Output
Available in an SOT583 Package

Active Part Numbers:

MP6637GTL-xxxx-Z MP6637GTL-xxxx-P MP6637GTL-0000-Z MP6637GTL-0000-P

Meaning of P & Z

Related Products

EV6637-TL-00A 5.5V, Three-Phase Sensorless BLDC Motor Driver with Integrated MOSFETs Evaluation Board

The EV6637-TL-00A is designed to evaluate the performance of the MP6637, a three-phase, sensorless, brushless DC (BLDC) motor driver with integrated power MOSFETs. The MP6637 features sinusoidal sensorless control for better efficiency and low vibration. The input voltage (V_CC) ranges from 2.5V to 5.5V.

The MP6637 controls the motor speed through the pulse-width modulation (PWM) signal with a 1kHz to 100kHz PWM input frequency.

The MP6637 features rotational speed detection. The rotational speed is an open-drain output via the FG/RD pin.

Rich protection features include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current protection (OCP), and thermal shutdown.

The MP6637 is available in an SOT583 package.
