MP6637A

MP6637A

5.5V, 1.3A Peak, Three-Phase, Sensorless Sinusoidal BLDC Motor Driver with Integrated MOSFETs

Datasheet

Description

The MP6637A is a three-phase, sensorless, brushless DC (BLDC) motor driver with integrated power MOSFETs. It features sinusoidal sensorless drive for better efficiency and low vibration, with up to 1.3A of peak phase current. The input voltage (V_CC) ranges from 2.5V to 5.5V.

The MP6637A controls the motor speed via a pulse-width modulation (PWM) signal with a 1kHz to 100kHz PWM input frequency. The device also features rotational speed detection. The FG/RD pin outputs a pulse signal, and the pulse signal’s frequency indicates the fan speed.

Rich protection features include short-circuit protection (SCP), input over-voltage protection (OVP), under-voltage lockout (UVLO), locked rotor protection, over-current protection (OCP), and thermal shutdown.

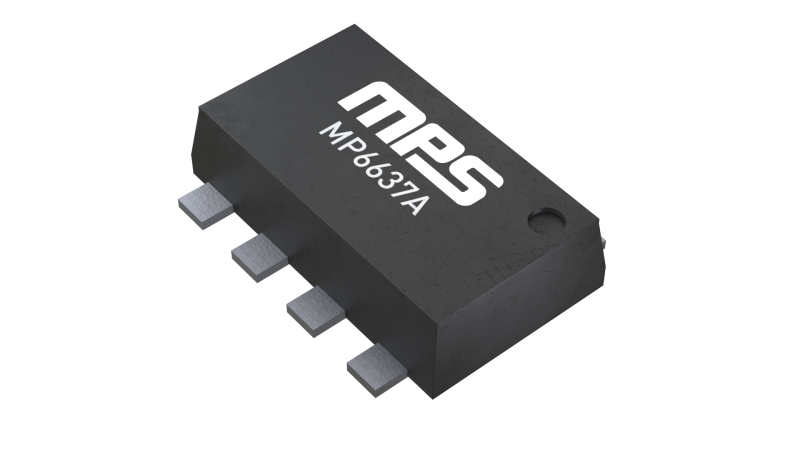

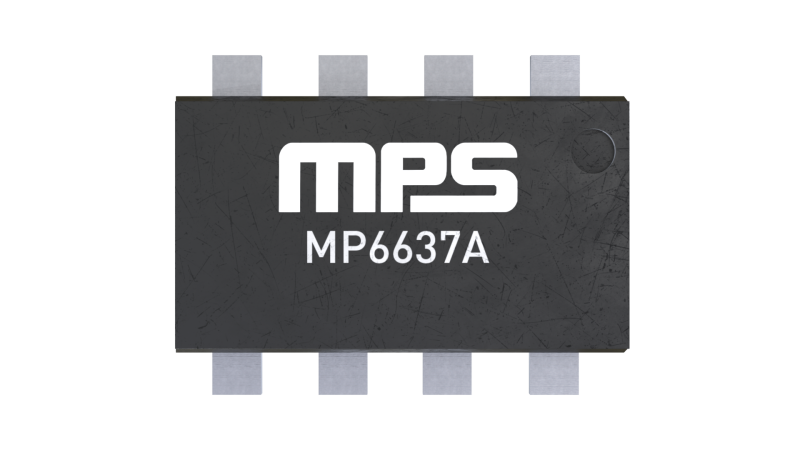

The MP6637A is available in an SOT583 package.

Features & Benefits

2.5V to 5.5 Input Voltage (V_CC) Operating Range
Up to 1.3A of Peak Phase Current
Up to 0.9A of RMS Phase Current
Sinusoidal Sensorless Drive
Integrated 350mΩ High-Side MOSFETs (HS FETs) and Low-Side MOSFETs (LSFETs)
Supports 1kHz to 100kHz Pulse-Width Modulation (PWM) Input
Power-Save Mode
30kHz Switching Frequency (f_SW)
Current Limiting
Short-Circuit Protection (SCP)
Over-Voltage Protection (OVP)
Under-Voltage Lockout (UVLO)
Over-Current Protection (OCP)
Locked-Rotor Protection
Selectable FG or RD Output
Available in an SOT583 Package

Active Part Numbers:

MP6637AGTL-xxxx-Z MP6637AGTL-xxxx-P MP6637AGTL-0000-Z MP6637AGTL-0000-P

Meaning of P & Z

Related Products

EV6637A-TL-00A 5.5V, 1.3A Peak, Three-Phase, Sensorless BLDC Motor Driver with Integrated MOSFETs Evaluation Board

The EV6637A-TL-00A evaluation board is designed to evaluate the performance of the MP6637A, a three-phase, sensorless, brushless DC (BLDC) motor driver with integrated power MOSFETs. It features sinusoidal sensorless drive for better efficiency and low vibration, with up to 1.3A of peak phase current. The input voltage (V_IN) ranges from 2.5V to 5.5V.

The MP6637A controls the motor speed through the pulse-width modulation (PWM) signal with a 1kHz to 100kHz PWM input frequency. The device also features a rotational speed detector. The rotational speed detector is an open-drain output via the FG/RD pin.

Rich protection features include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current protection (OCP), and thermal shutdown.

The MP6637A is available in an SOT583 package.
